Chapter 6 Installation and connection 40058725 BTA Alpha HSM
Version: 12.19.17 Page 39 of 112 GB
Connection to the mains voltage
Danger through a direct or indirect contact with live parts.
If persons come into contact with parts that have become ener-
gized through malfunctions, this can lead to death.
- Work on electrical equipment may only be performed by
skilled electricians.
- Check that your mains voltage corresponds to the voltage
rating on the nameplate.
- Only connect the labeler to a properly installed, grounded
mains socket outlet or to the control cabinet of the corre-
sponding machine.
The labeler is connected via the connection (pos. 8, Fig. 6-2) to the mains voltage.

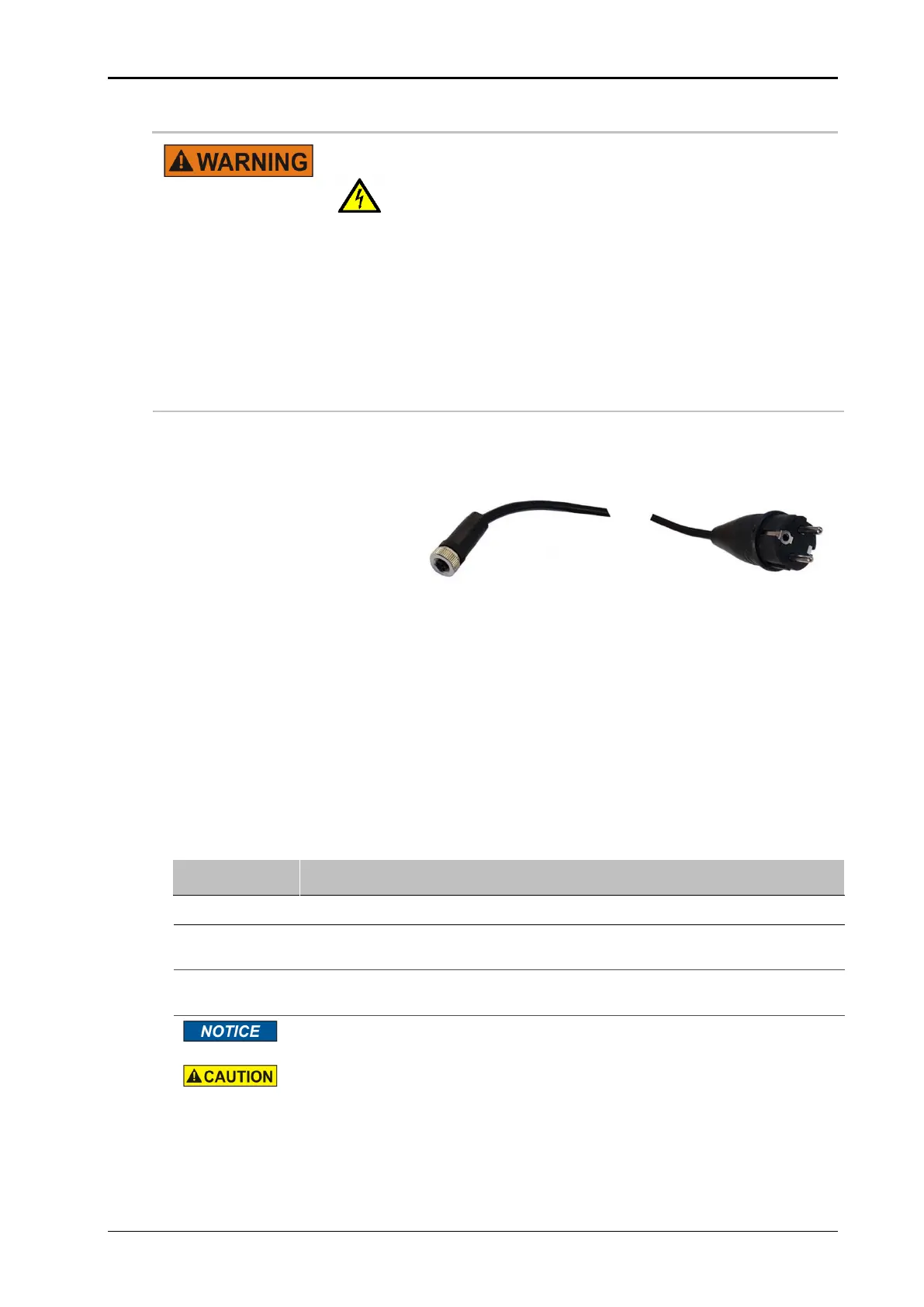

Fig. 6-3: Mains voltage cable with M12, 4-pin plug
Prerequisites
Power supply in accordance with the Chapter "Technical Specifications", is in-
stalled in the vicinity of the labeling site (max 1.5 metres away).
Power switch is OFF (in the "0" position).
Mains voltage connection cable (see in the accessory box)
Instruction
This is how to connect the labeler with the mains connection.
Make sure that the power switch (pos. 10, Fig. 6-2 ) is set to "0" (off).
Connect the mains voltage cable, which has not yet been connected, to the
labeler (plug it in and screw it on).
Connect the mains voltage cable to the power connector (standard 230 Volt
grounded socket).
When you switch on the power switch (position "I"), the labeler will be ready
for operation.
Entanglement hazard! After switching on, the motor modules will be activat-
ed for a few seconds. Maintain an adequate distance from moving parts.
