Overview of the connections on the labeler
Before switching on the machine, check that all necessary sensors
are firmly connected. All plugs are secured with a union nut. Do
not tilt them when unscrewing to avoid damaging the thread. Will
Completely unscrew the union nut to ensure permanent and safe
contact.
The electrical connections of the labeler are all located on the base module.

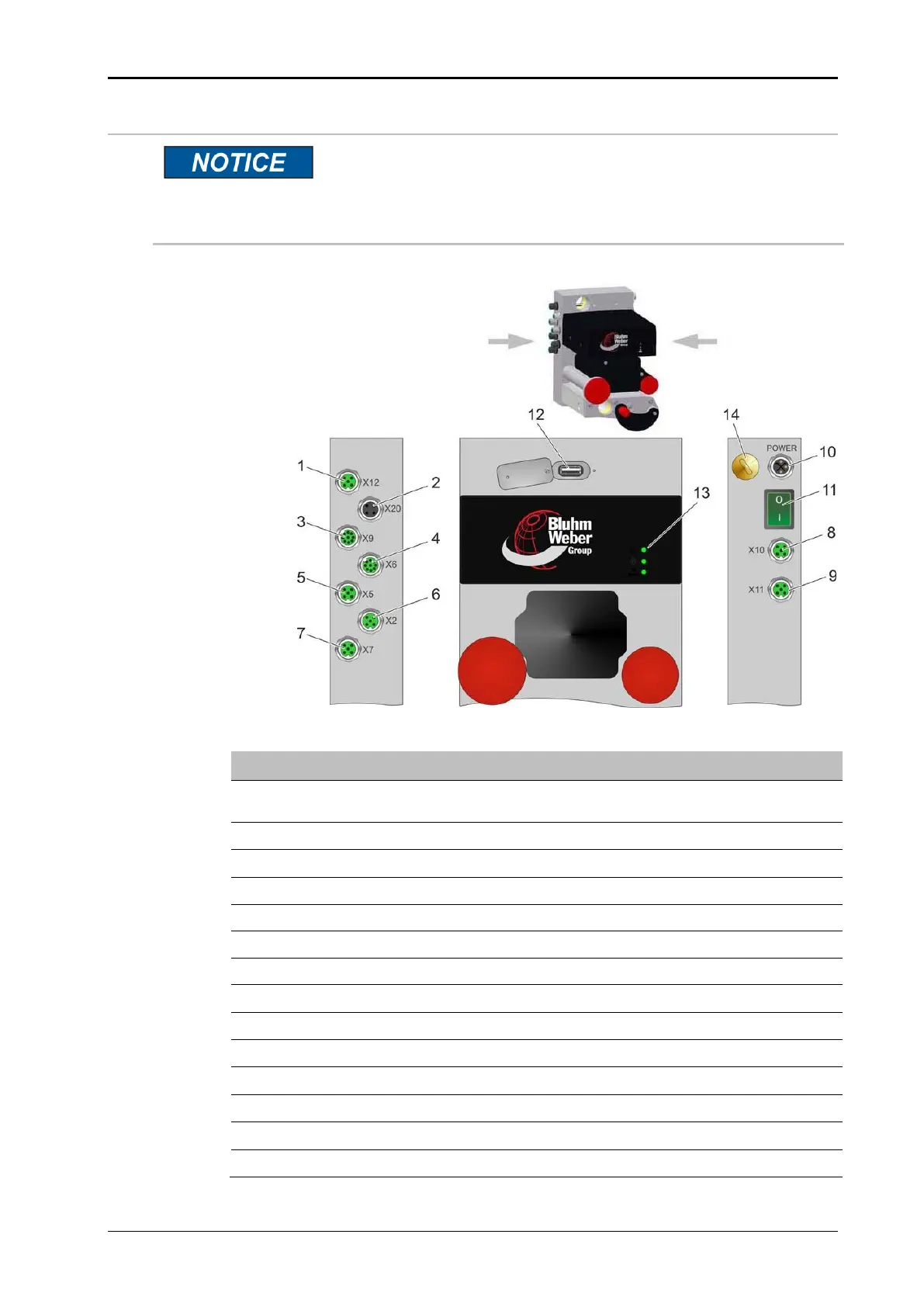

Fig. 6-2: Electrical connections (LH-display)
No.
Designations
1
X12
AUX OUT - OUTPUT FOR: PNEUMATIC PEELER PLATE, MARKOPRINT
PRINTER
2
X20
NETWORK CONNECTION (ETHERNET 10/100)
3
X9
I/O SIGNAL INTERFACE
4
X6
ALARM LAMP
5
X5
ROTARY ENCODER
6
X2
PRODUCT SENSOR
7
X7
LABEL SENSOR
8
X10
HMI DISPLAY
9
X11
AUX IN - INPUT FOR: PRODUCT SENSOR 2, STRIP BREAK SENSOR
10
POWER SUPPLY
11
POWER SWITCH
12
USB "ETHERNET" INTERFACE
13
INDICATOR LIGHTS
14
X3
LOW LABEL WARNING (ADVANCED UNWINDER ONLY)
