Pressure application device setting
The pressure application device (roller, brush or spatula) have the task to push the ap-
plied label firmly to the product.
Information about the adjustment of the pressure roller
The pressure application device is located so far behind the dispensing edge that it does
not come into contact with the peeler plate. It can be adjusted through an axle or clamping
holder, and is adjusted to the height of the product as far as possible. The magnitude of
the pressure applied by the pressing device may not interfere with the further transport of
the product.

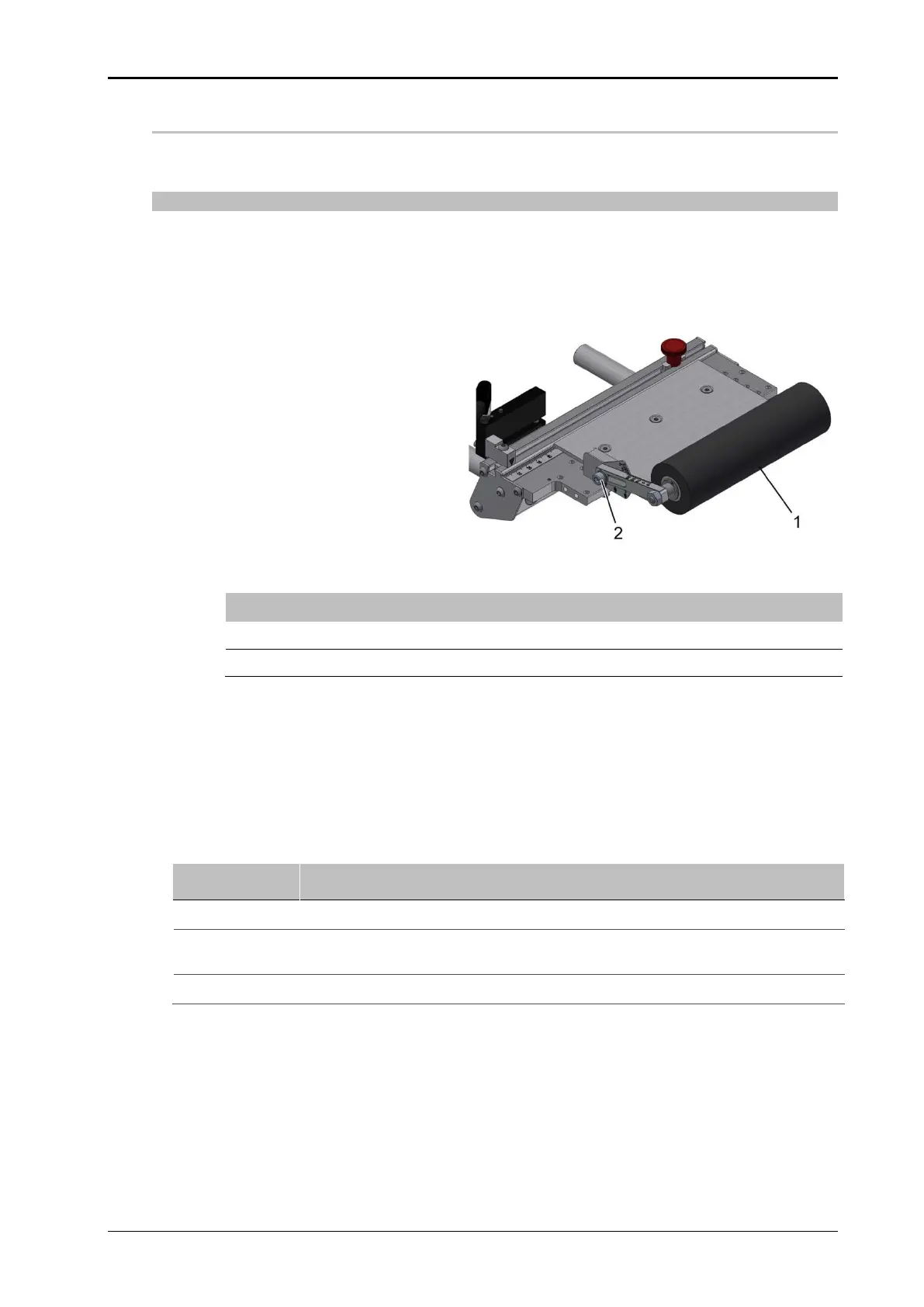

Fig. 7-4: Pressure application device setting
No.
Designations
1
PRESSURE ROLLER
2
SCREW FOR ADJUSTMENT
Prerequisites
 No product transport
 The labeler is turned off
Instruction
How to adjust the pressure roller.
Step
Approach
1
Position a product to be labelled just below the application edge.
2
Loosen the clamping screw (pos. 2, Fig. 7-4) and set the pressure applica-
tion device to the required criteria (see top section).
3
Retighten the clamping screw again
