Sync Length
This parameter is used to set the impulse length of
the Sync signal, which is provided at the I/O inter-
face.
If the value is set to "0", the Sync Signal will be
event-driven (BUSY signal). It is activated with the
first relevant trigger signal when [Sync Start] is
also zero and is then deactivated at the end of the
application process.

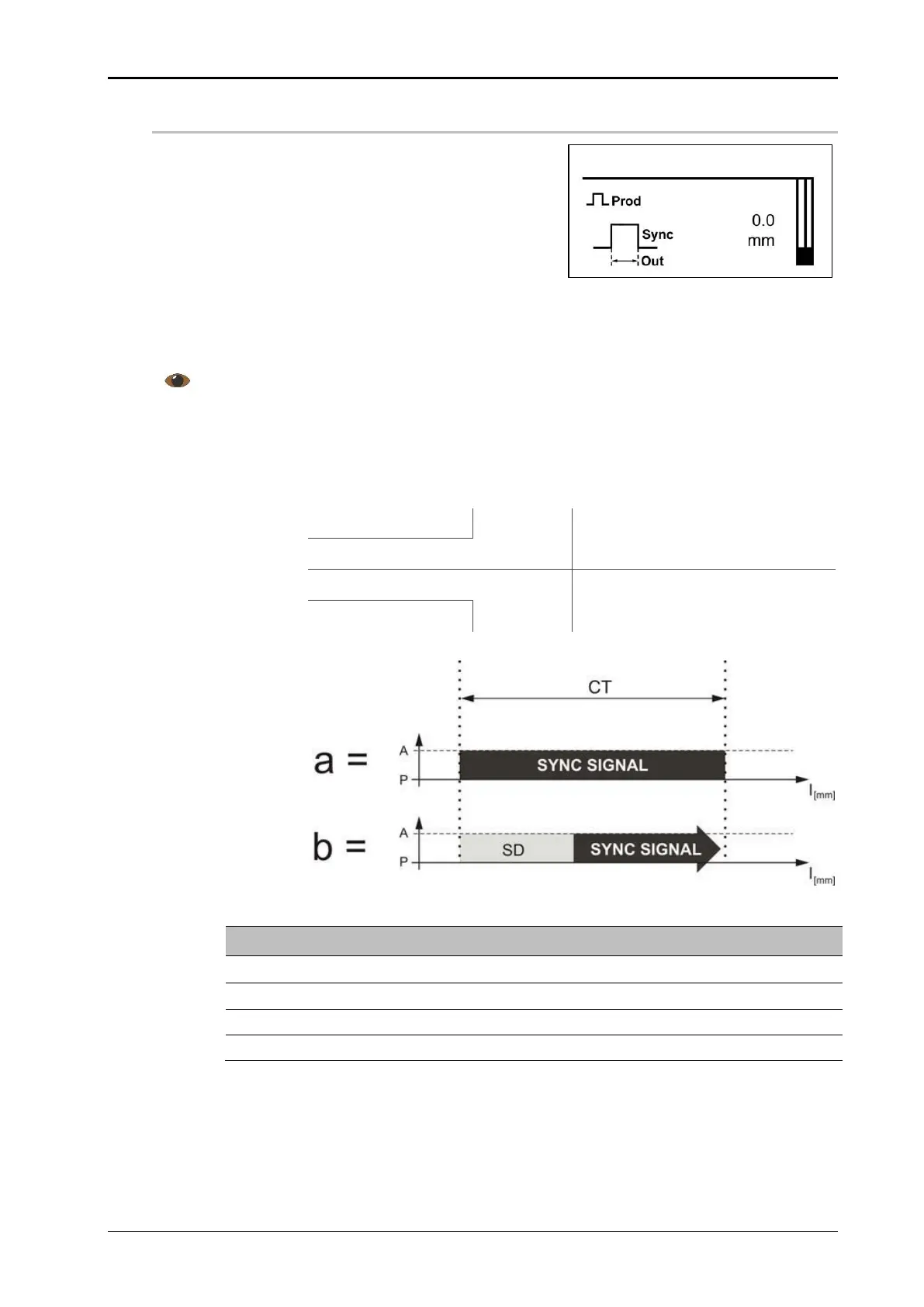

Fig. 8-37: Sync Length
(Only) in combination with [Sync Start] (see Page 83) can the sync signal be extended
by the value set here. The adjustment range is 0.0 – 900.0 mm.
The display of the "Sync Length" parameter in the configuration menu can be acti-
vated or deactivated with the 020 "Sync Conf" machine parameter in the system mode.
This diagram is meant to illustrate the dependency of "Sync Start" and "Sync Length":
Sync Start = 0
= a
Sync Start > 0
= b
Sync Length = 0
Sync Length > 0
Sync Start = 0
= a
Sync Start > 0
= 0
Sync Length > 0
Sync Length = 0
Fig. 8-38: SYNC diagram
Pos.
Designations
CT
(CYCLE TIME)
A
ACTIVE
P
PASSIVE
SD
(SYNC DELAY)
Sync Length
