Weber Alpha HSM - Diagnosis (IO-Status)

Chapter 8 Operation 40058725 BTA Alpha HSM
Version: 12.19.17 Page 88 of 112 GB

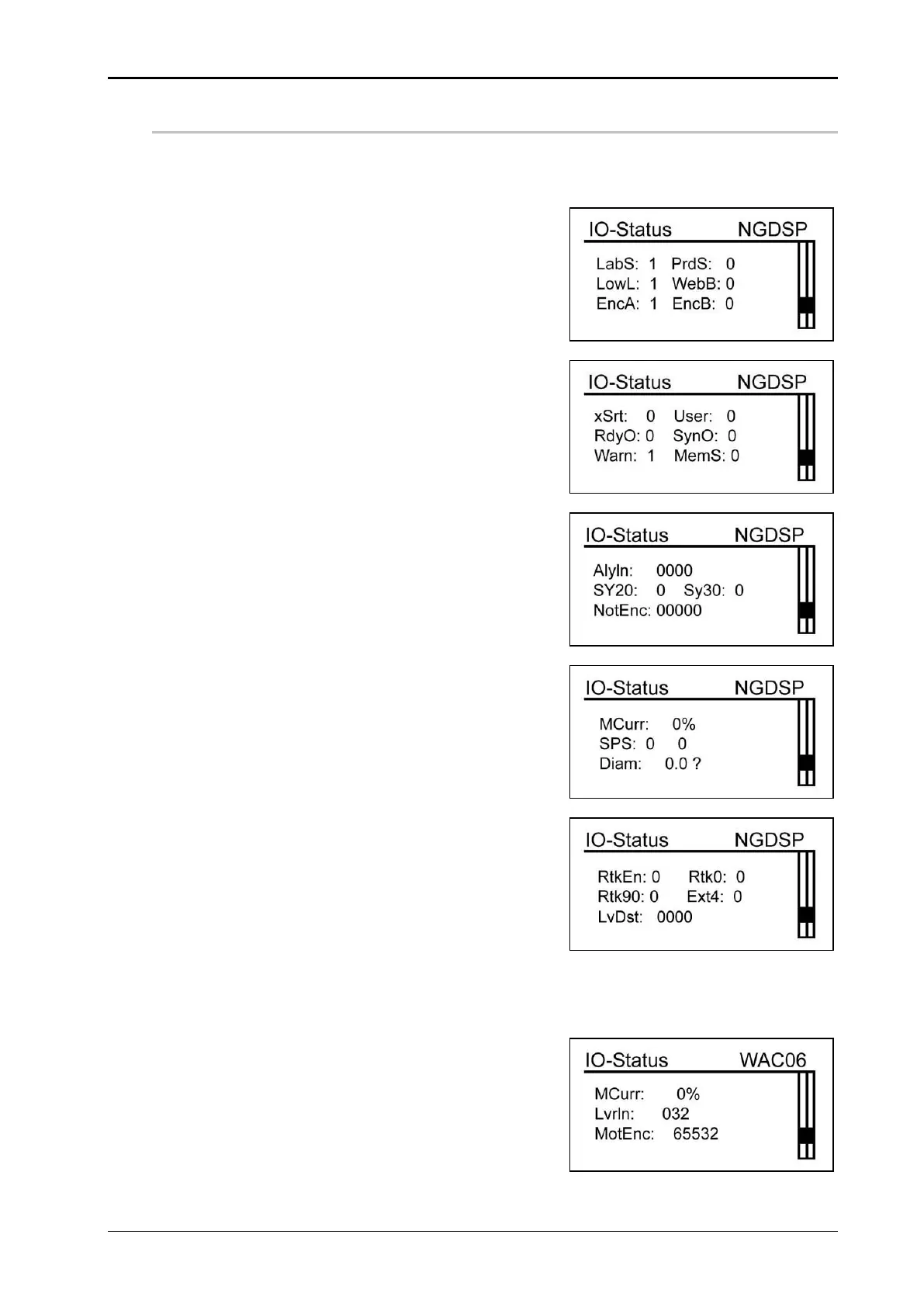

Diagnosis (IO-status)
All of this data is purely for Diagnostics and requires a high degree of expertise
for the correct interpretation. The following menu pages show current signal
states of the base module.
LabS:
PrdS:
LowL:
WebB:
EncA:
EncB:
Label sensor input
Product detector input
Low label sensor input
Web-break sensor input
A-spur encoder input
B-spur encoder input
Fig. 8-48: IO-status (page 1)
xSrt:
User:
RdyO:
SynO:
Warn:
MemS:
External start input
Input USER
Output READY
Output SYNC
Output Warning
USB stick status
Fig. 8-49: IO-status (page 2)
AlyIn:
Sy20:
Sy30:
MotEnc:
Motor Encoder
Output Sync2
Output Sync3
Rotary encoder Motor
Fig. 8-50: IO-status (page 3)
MCurr:
PLC:
Diam:
Percent of the max. permissi-
ble current
SPS signal
Remainder LowLabel
Fig. 8-51: IO-status (page 4)
RtkEn
Rtk0
Rtk90
Ext4
LvDst
not used
not used
not used
not used
Dancer position unwinder
Fig. 8-52: IO-status (page 5)
The following menu pages show the current signal states of the unwinder
(WAC05) and winder (WAC06).
MCurr:
LvrIn:
MotEnc:
Percent of the max. permissi-
ble current
Dancer arm position
Receiving axis position
Fig. 8-53: IO-status (page 6)
