430 Ink Jet Printer Service and Maintenance Manual
92
Issue 2
Part No. 306-0430-102
GUTTER

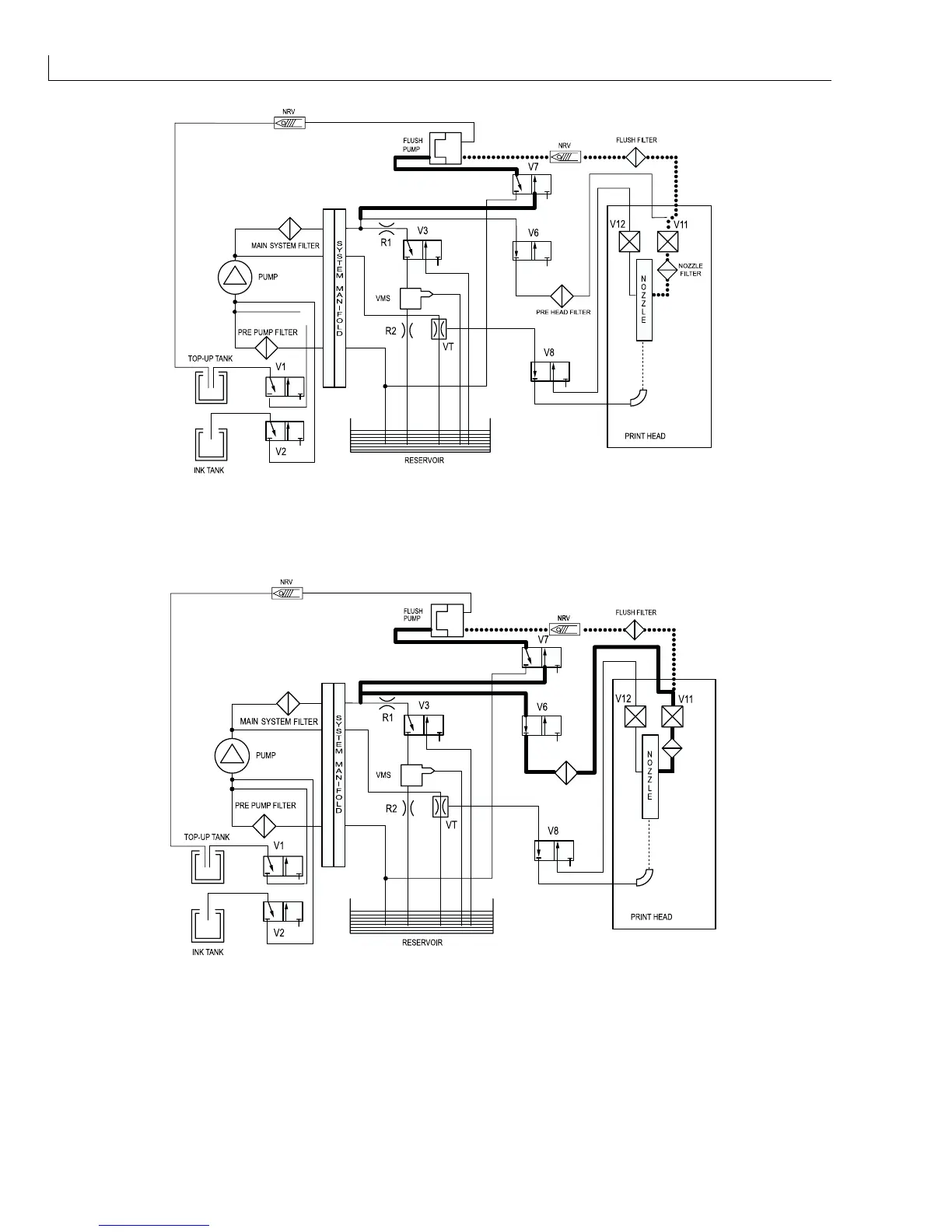

Figure 42 Clean Start Jet Sequence Pressurise Flush Pump and Eject Solvent out of Nozzle
NOZZLE
FILTER
PRE HEAD FILTER
GUTTER
Figure 43 Clean Start Jet Sequence Change from Solvent to Ink
