WILLETT 430 - Baffle Plate Assembly

430 Ink Jet Printer Service and Maintenance Manual
174
Issue 2
Part No. 306-0430-102
Baffle Plate Assembly
1
2
5
4
3

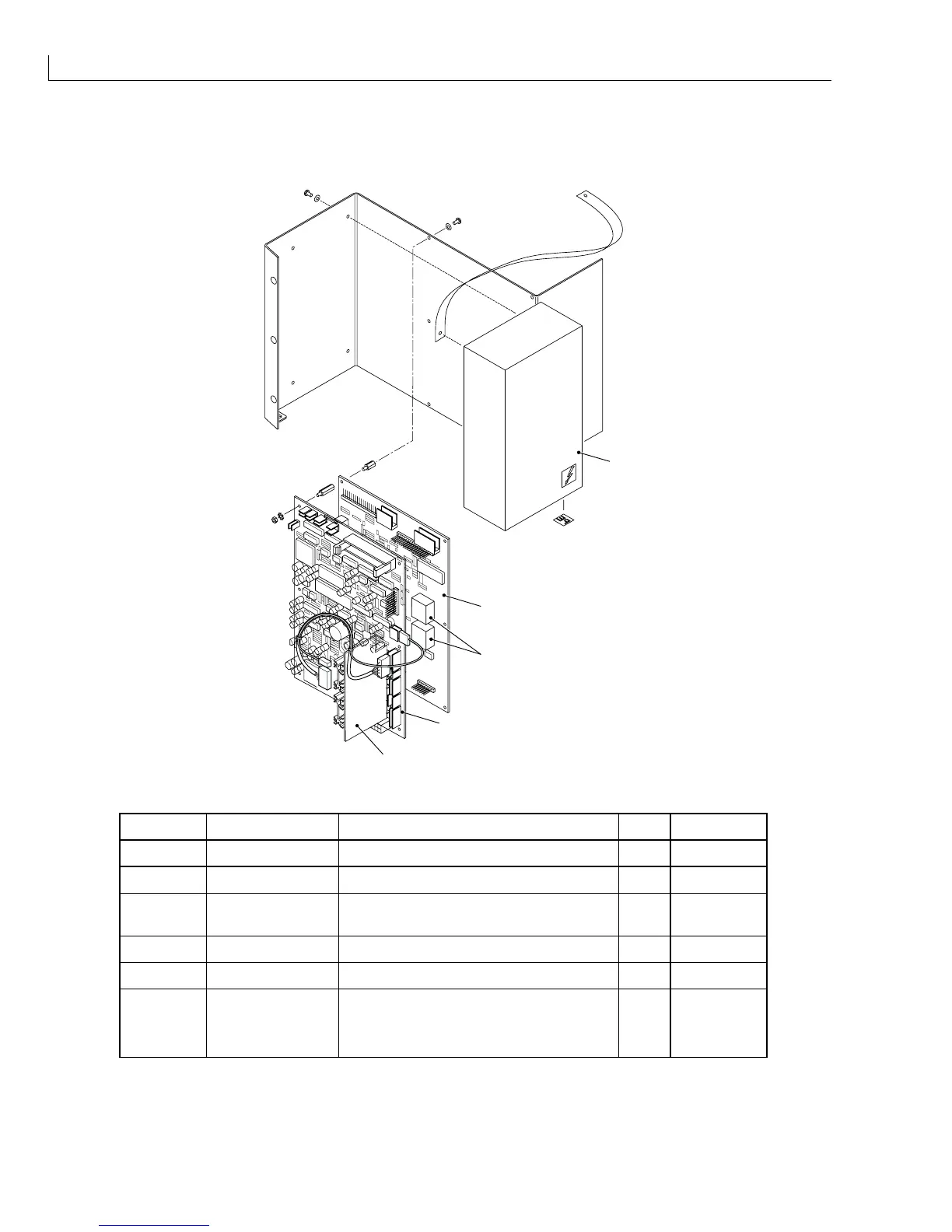

Figure 88 Baffle Plate Assembly
Fig ref. Part number Description Qty Remarks
1 200-0390-102 PSU - 80 watt with cover 1
2 200-0390-111 CPU board 1
3 500-0053-363 Unprogramed Flash memory
AM29F040-70JC
2
4 200-0430-160 I/O board 1
5 200-0430-161 Ink pump motor driver board 1
NI 200-0430-115 Expansion Board
Note:
Expansion board 200-0390-112
does not fit the 430.
1
Table 54 Baffle Plate Assembly
