WILLETT 430 - Ink and Top up Reservoir Sensor; Removal; Installation; Exchanging the Sensor and LED

Disassembly and Assembly: Ink and Top Up Reservoir Sensor
Issue 2
117
Part No. 306-0430-102
Ink and Top Up Reservoir Sensor
Removal
1
Cut the four wires (sensor and LED connections).
2
Unscrew the sensor from the threaded receptacle on top of the reservoir and list it out.
Installation
1
Screw the level detector into the receptacle in the tank.
2
Thread heatshrink over the four lead ends.
3
Solder the leads to the wires cut in
Removal
step
1
.
Exchanging the Sensor and LED
1
3
2
4
6
5
7
(
1
) Level Detect Retainer (
5
) Spacer Tube
(
2
) O-ring (
6
) Lens Retainer
(
3
) Lens (
7
) Sensor and LED
(
4
) Sensor Holder

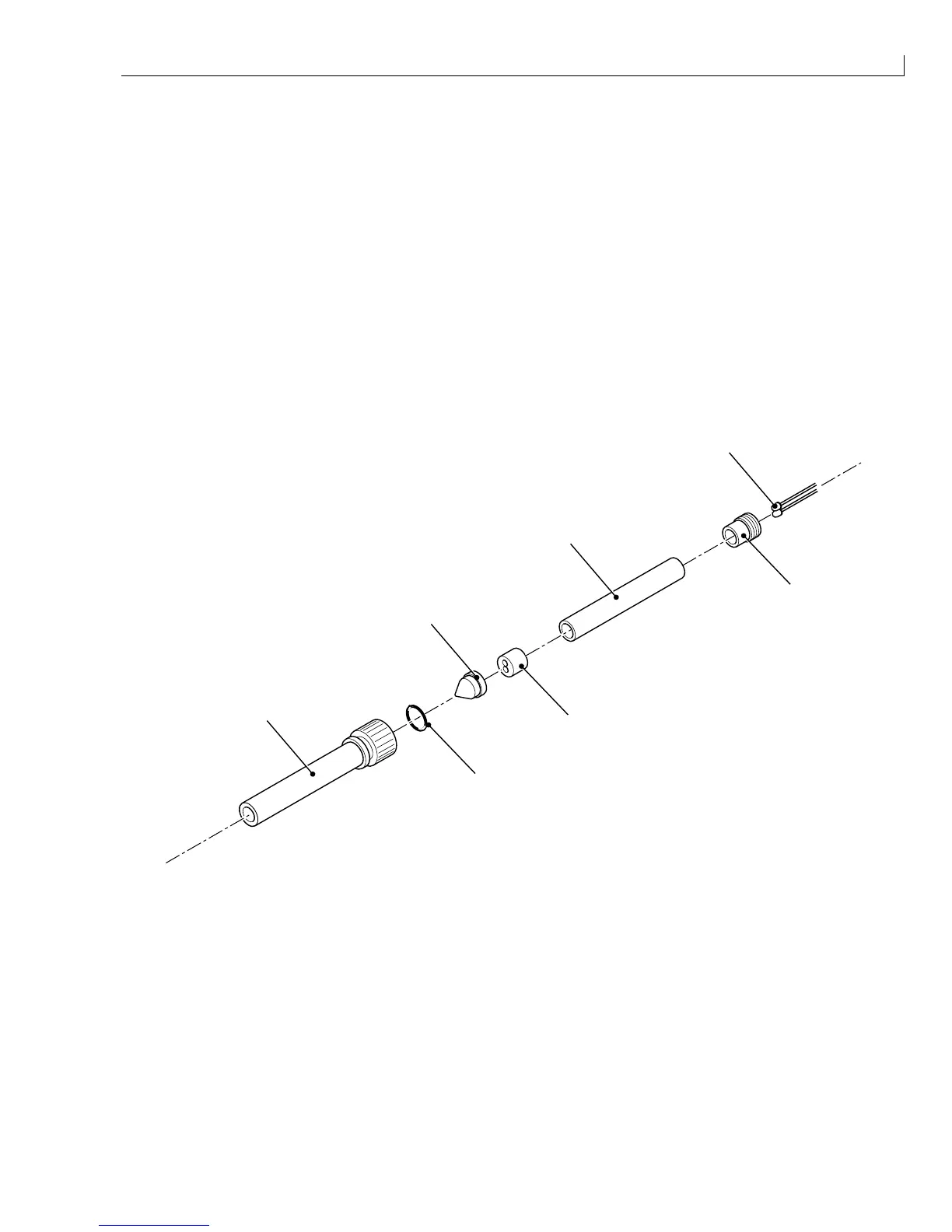

Figure 55 Level Detector
1
Remove the sensor from the tank as described above.
2
Unscrew the lens retainer (Figure 55 (
6
)) and thread it over the trailing leads of the sensor and LED.
3
Withdraw the spacer tube (
5
), sensor holder (
4
), lens (
3
) and O-ring (
2
) from the level detect retainer (
1
).
4
Remove the sensor and LED from the sensor holder (
4
) and discard the sensor and LED.
