WILLETT 430 - Top Moulding Ink System Components

Illustrated Parts List: Top Moulding Ink System Components
Issue 2
171
Part No. 306-0430-102
Top Moulding Ink System Components
1
2
3
4
5
6
7
8
9
12
11
10

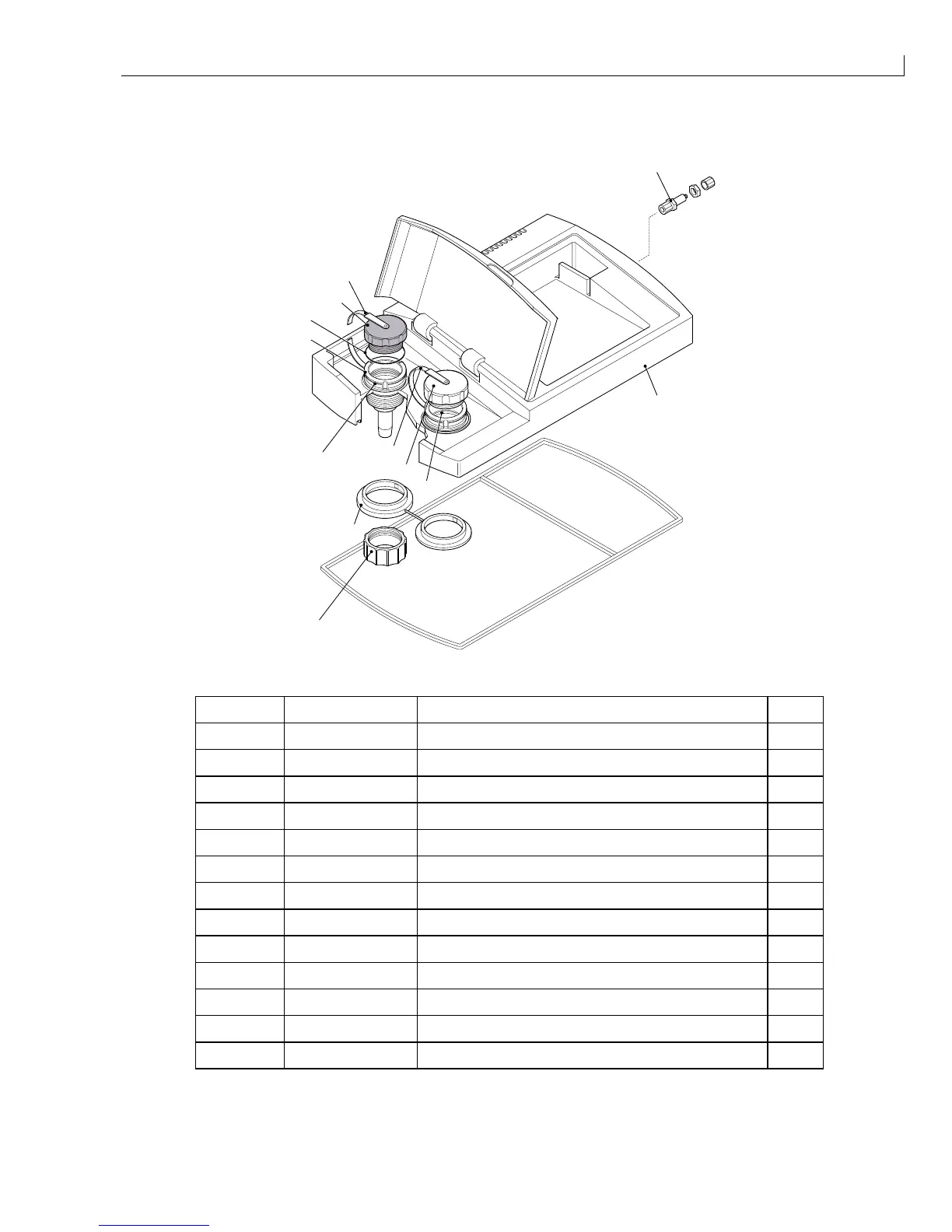

Figure 86 Top Moulding Ink System Components
Fig ref. Part number Description Qty
1 500-0031-232 O-ring 1
2 100-0470-215 Ink cap 1
3 500-0041-101 Bulkhead fitting 1
4 200-0390-248 Top mould assy. 1
5 100-0470-218 Filler housing, top-up 1
6 100-0470-219 Top-up cap 1
7 100-0470-254 Adapter 1
8 100-3900-210 Seal 2
9 100-0470-217 Filler housing, ink 1
10 100-0470-195 Cap retainer black 1
11 100-0470-256 Cap retainer white 1
12 100-0470-196 Retainer nut 2
NI 204-0329-101 Ink/Top-up adapter kit (comprising items 1 – 12) 1
Table 52 Top Moulding Ink System Components
