Production Line Setup
Typical Installation

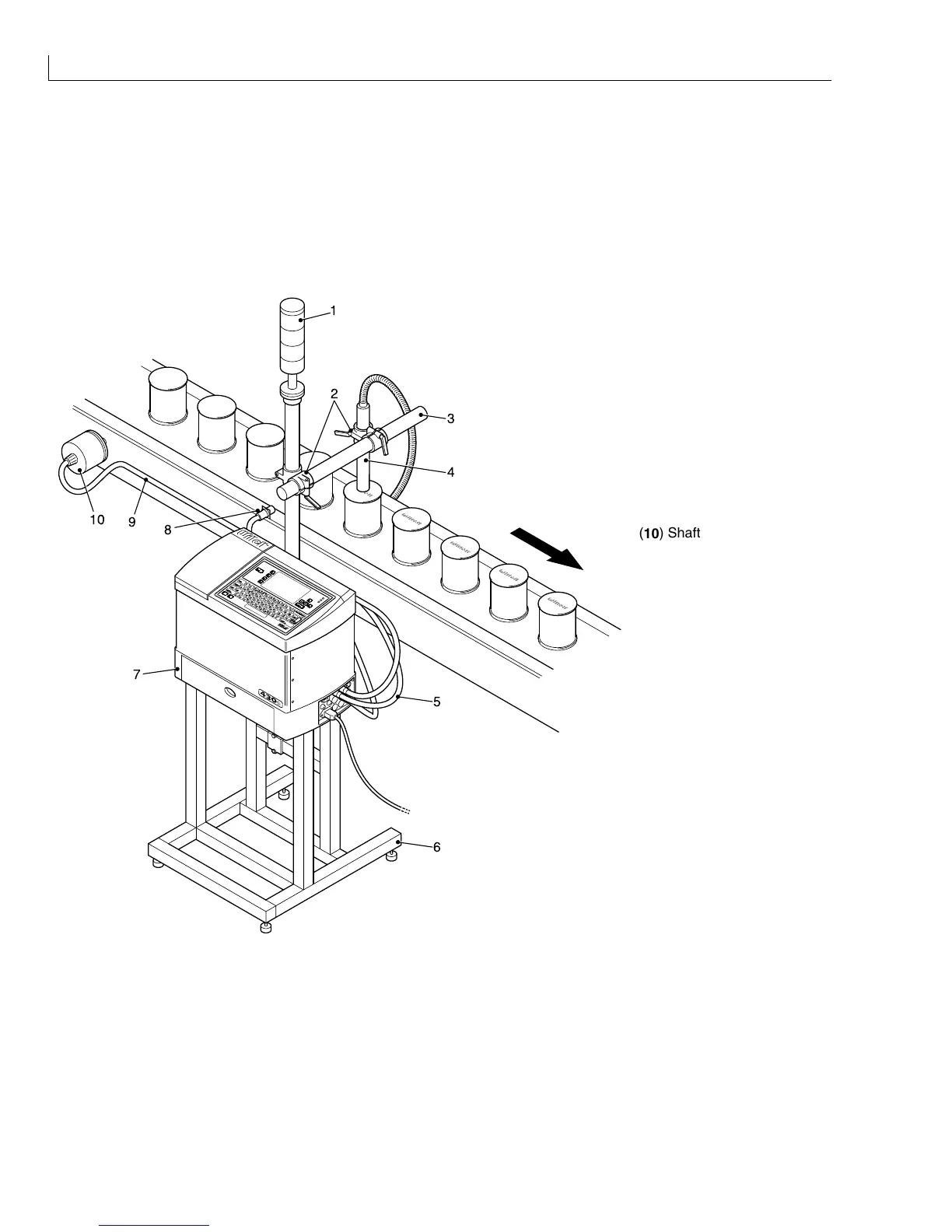

A typical installation is shown in Figure 6, where the printer (
7
) is mounted on a printer stand (
6
). The printhead
(
4
) is configured to print vertically via a clamp (
2
) and bracket (
3
) assembly. A lamp stack (
1
) is fitted to the
printer stand.
(
1
) Lamp stack
(
2
) Clamp
(
3
) Bracket
(
4
) Printhead
(
5
) Photocell cable
(
6
) Printer stand
(
7
) Printer
(
8
) Photocell
(
9
) Shaft encoder cable
1
2
3
4
5
7
9
10
6
8
(
10
) Shaft encoder
Figure 6 Typical Production Line Installation
