Technical Description: Ink System Operation
Issue 2
95
Part No. 306-0430-102
NOZZLE
FILTER
PRE HEAD FILTER
GUTTER

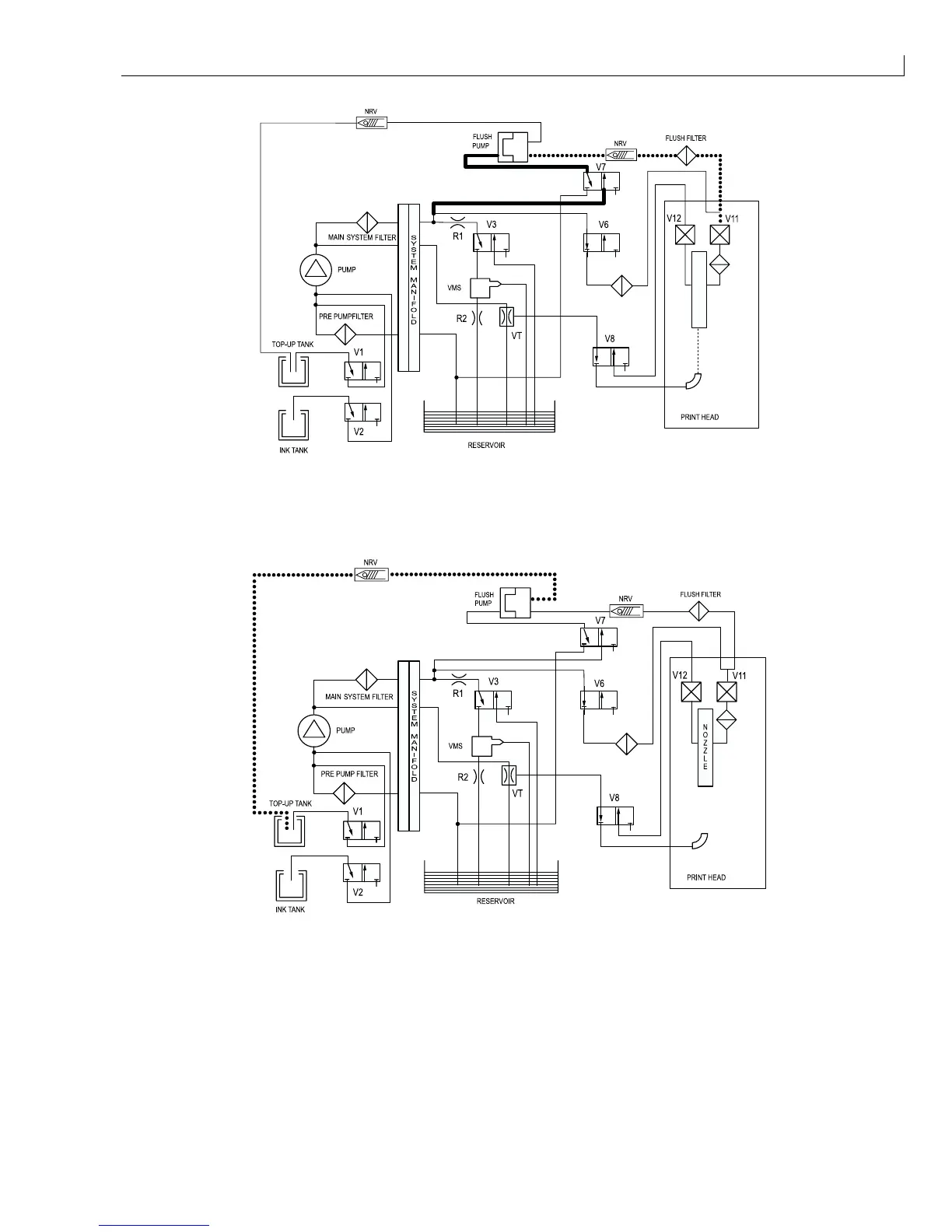

Figure 46 Clean Stop Jet Sequence – Stop Ink Supply and Continue with Pure Flush
PRE HEAD FILTER
NOZZLE
FILTER
GUTTER
Figure 47 Clean Stop Jet Sequence – Stop Ink Supply and Re-fill Flush Pump
