X-IO ISE-2 Series User Manual

Page 56 160337-000 Rev D, 30 September, 2013 Xiotech—Proprietary
ISE User Guide Initialize and Configure
The Orchestrator interface (see the Orchestrator User Guide) provides storage pool management through the
following select strings:
1.
All Devices >> ise_name >> Storage View >> Storage Pools
2. All Devices >> ise_name >> Storage View >> Volumes
3. All Devices >> ise_name >> Storage View >> Mirrors

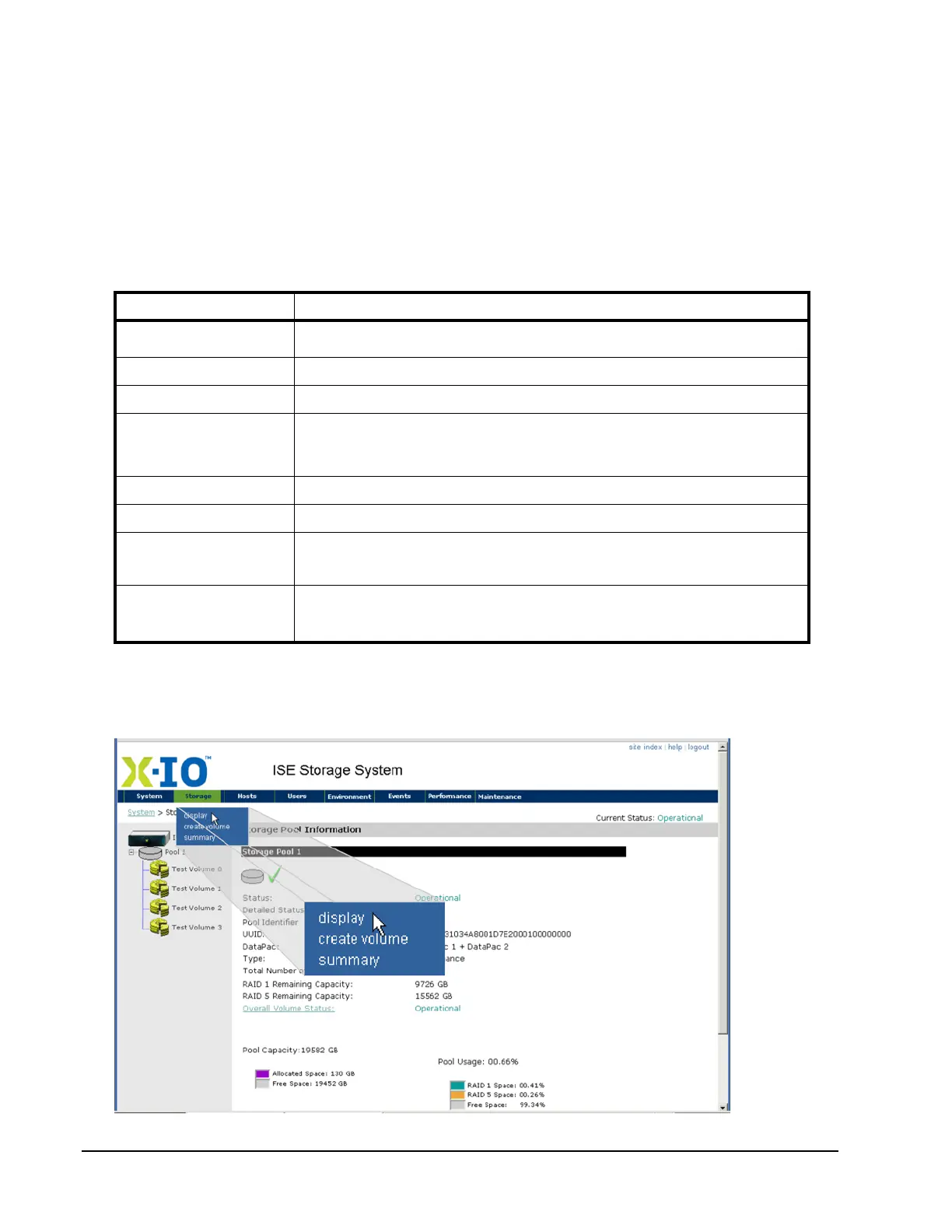

The Web-Mgt interface provides a Storage Pool Information view (see Figure 38 on page 57), accessed by
placing the cursor over the
Storage tab and selecting display from the drop-down menu. In this view, the
characteristics listed below are shown for each storage pool.
Table 16: Storage characteristics
Storage Pool Information panels display a list of all volumes in the pool as shown below. This view is also
reached by expanding the pool tree element in the navigation pane of many of the Management Information
panels.
Characteristic Description
Status
Overall state of the storage pool. This field usually reports Operational. Other possible
states include Uninitialized or Non-Operational.
Detailed Status
Reports any unusual state the pool may be in. This field usually reports None.
Pool identifier
Equivalent to DataPac number.
Type
Performance DataPac
Balanced DataPac
Capacity DataPac
Number Volumes Pool
Number of volumes assigned to the identified pool.
Remaining Capacity
Remaining capacity by RAID type.
Overall Volume Status
Reports the overall state of the volumes within the storage pool. If any volumes in the pool
are non-operational, this status reports Non-Operational. Click this link to select the Volume
Summary view (see Figure 41 on page 59).
Pool Stats
Pool capacity (raw GB used vs. free)
Pool usage (total percentage of pool used, percentage used for each RAID type, and per-
centage free)
