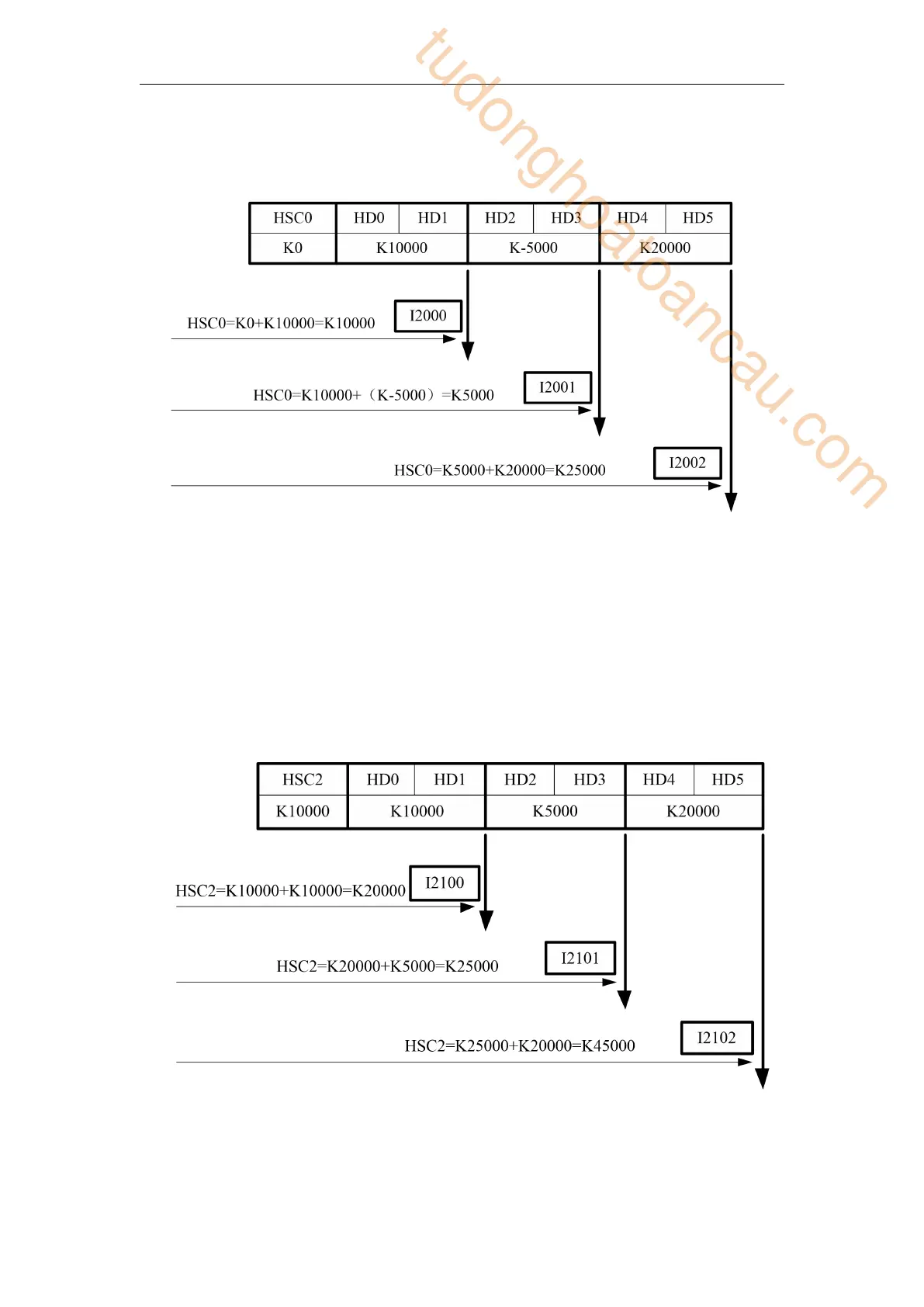

See graph below:
Example 2:
HSC2 current value is 10000, the segment one preset value is 10000, the preset value of
segment 2 is 5000, the preset value of segment 3 is 20000. When starting to count, when the
counter's current value is 20000, it generates the segment 1 interruption I2100; when the
counter's current value is 25000, it generates the segment 2 interruption I2101; when the
counter's current value is 45000, it generates the segment 3 interruption I2102.
See graph below:

Absolute Mode
