Xinje XD Series User Manual

224
In absolute mode, interruption occurs when the count value equals the set value of each
section of the counter. N interrupt markers correspond to N interrupt settings. The N+1
interrupt settings register is reserved for other purposes.

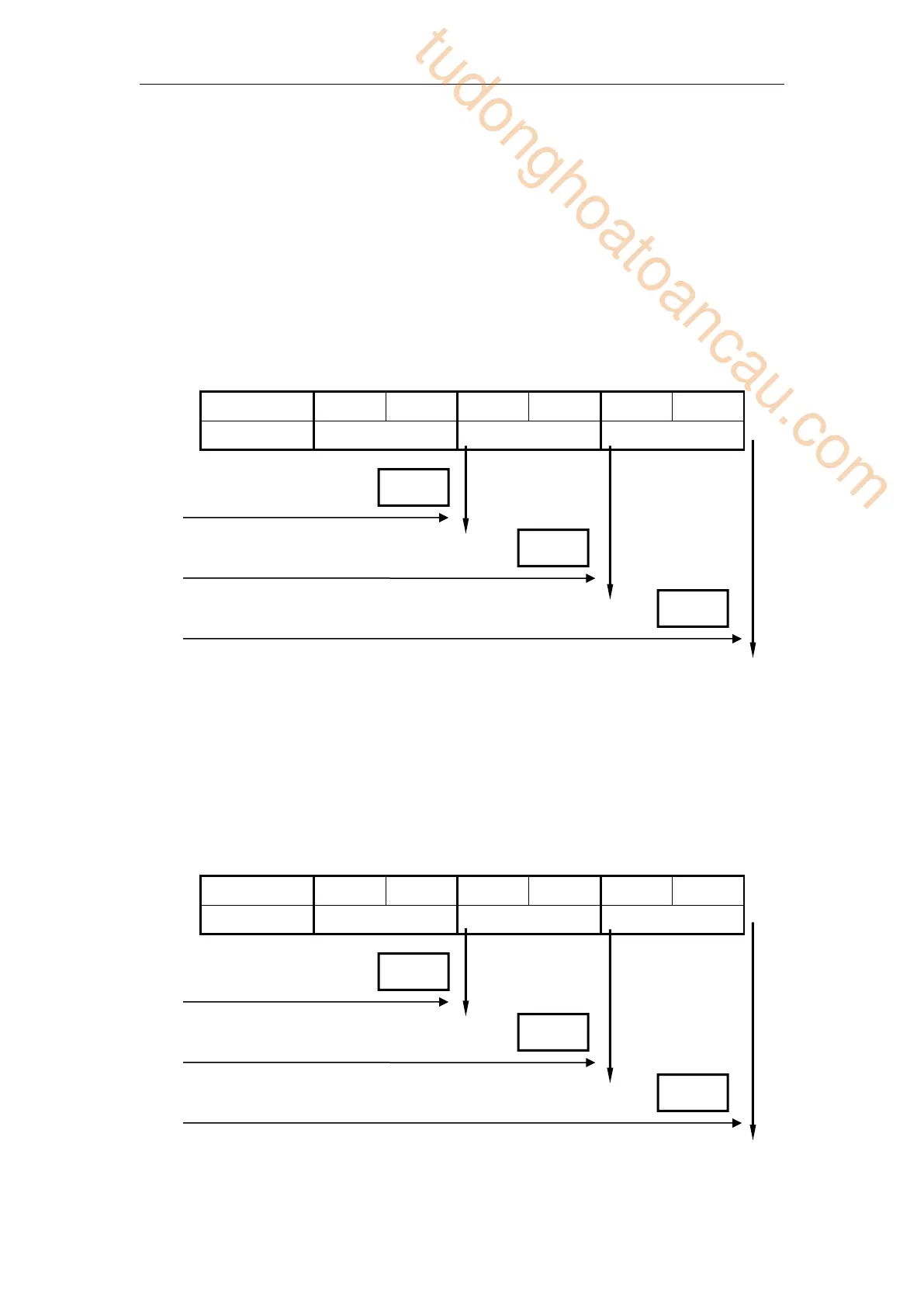

Example 1:
The current value of counter HSC0 is 0, the setting value of segment 1 is 10000, the setting
value of segment 2 is 15000, and the setting value of segment 3 is 20000. When it starts
counting, if the current value of the counter is 10000, the segment 1 interruption I2000 is
generated; when the current value of the counter is 15000, the segment 2 interruption I2001 is
generated; when the current value of the counter equals 20000, the segment 3 interruption
I2002 is generated.
HSC0= K20000
HSC0= K15000
HSC0= K10000
HSC0
HD0
HD1
HD2
HD3
HD4
HD5
K0
K10000
K15000
K20000
I2000
I2001
I2002
Example 2:
The current value of counter HSC2 is 5000, segment 1 set value is 10000, segment 2 set value
is 5000, and segment 3 set value is 20000. When it starts counting, if the current value of the
counter is 10000, segment 1 interrupt I2100 is generated; when the current value of the
counter is 5000, segment 2 interrupt I2101 is generated; when the current value of the counter
equals 20000, segment 3 interrupt I2102 is generated.
HSC0= K20000
HSC0= K5000
HSC0= K10000
HSC0
HD0
HD1
HD2
HD3
HD4
HD5
K0
K10000
K5000
K20000
I2000
I2001
I2002
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
