Xinje XD Series User Manual

229
Configure item
Function
High speed counter
Choose HSC, the range is from HSC0 to HSC18
Frequency
Choose the HSC frequency doubling (2 or 4)
Compare value
The value can be register or constant, in this example, when the
counting value reaches compare value, HSC0 is ON. here the compare
value is 200000 which is saved in D10.
Relative and absolute
The HSC is relative mode or absolute mode
Interrupt address
The starting registers to store 100 segments interruption preset value
Circulate
100 segments interruption mode is cycle or not
Cam
The cam function is executed when any set value of 100-segment high
speed counting interruption equals the counting value.

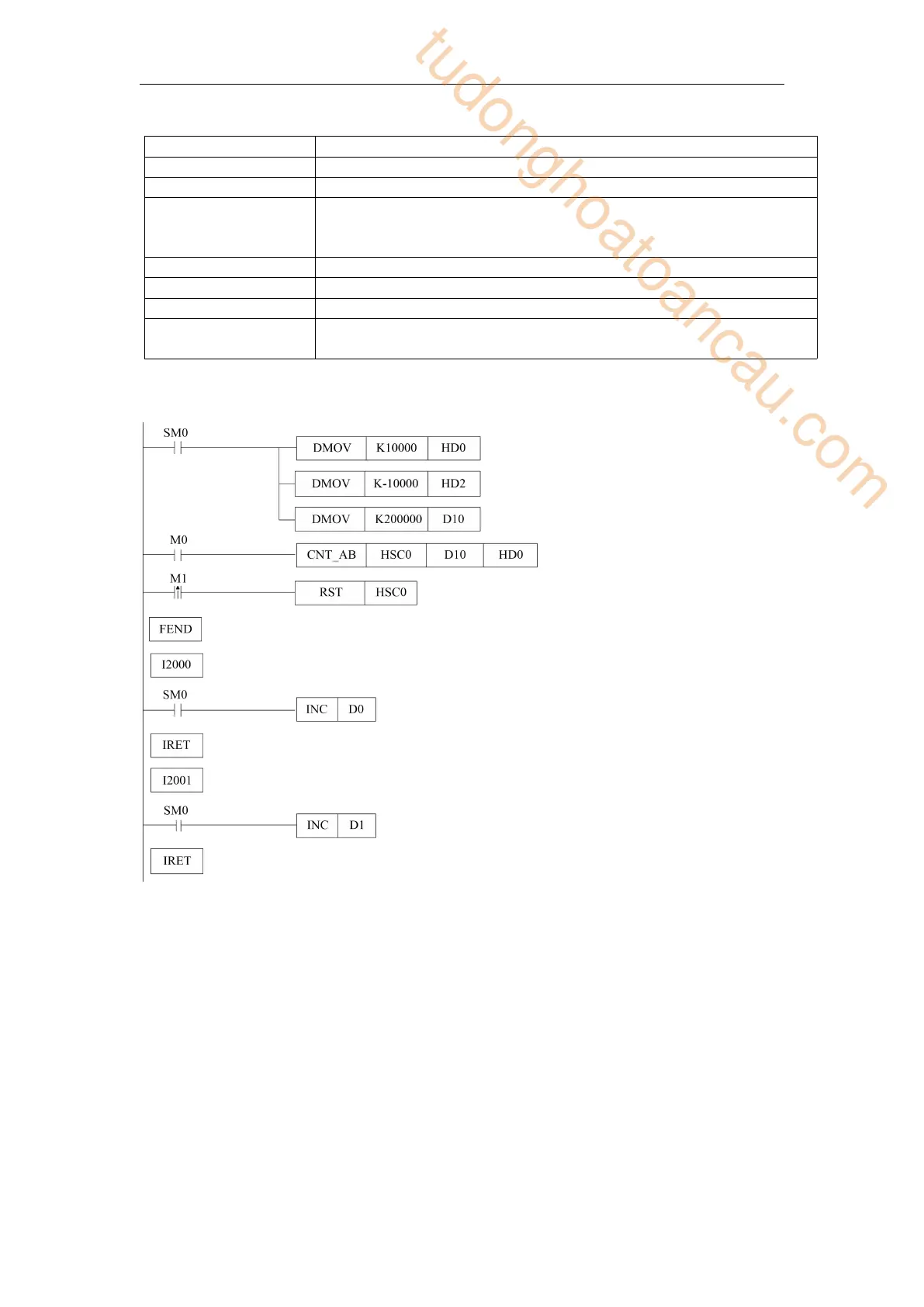

Method 2: make the program
Instruction:
LD SM0 //SM0 is normally ON coil
DMOV K10000HD0 //segment one preset value HD0 is 10000
DMOV K-10000 HD2 //segment 2 preset value HD2 is -10000
DMOV K200000 D10 //set HSC compare value
LD M0 //HSC activate condition M0
CNT_AB HSC0 D10 HD0 //HSC interruption instruction
LDP M1 //HSC reset condition M1
RST HSC0 //reset HSC and 100 segments interruption
FEND //the main program end
I2000 //segment one interruption flag
LD SM0 //SM0 is normally ON coil
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
