Xinje XD Series User Manual

230
INC D0 //D0= D0+1
IRET //interruption return flag
I2001 //segment 2 interruption flag
LD SM0 //SM0 is normally ON coil
INC D1 //D1= D1+1
IRET //interruption return flag

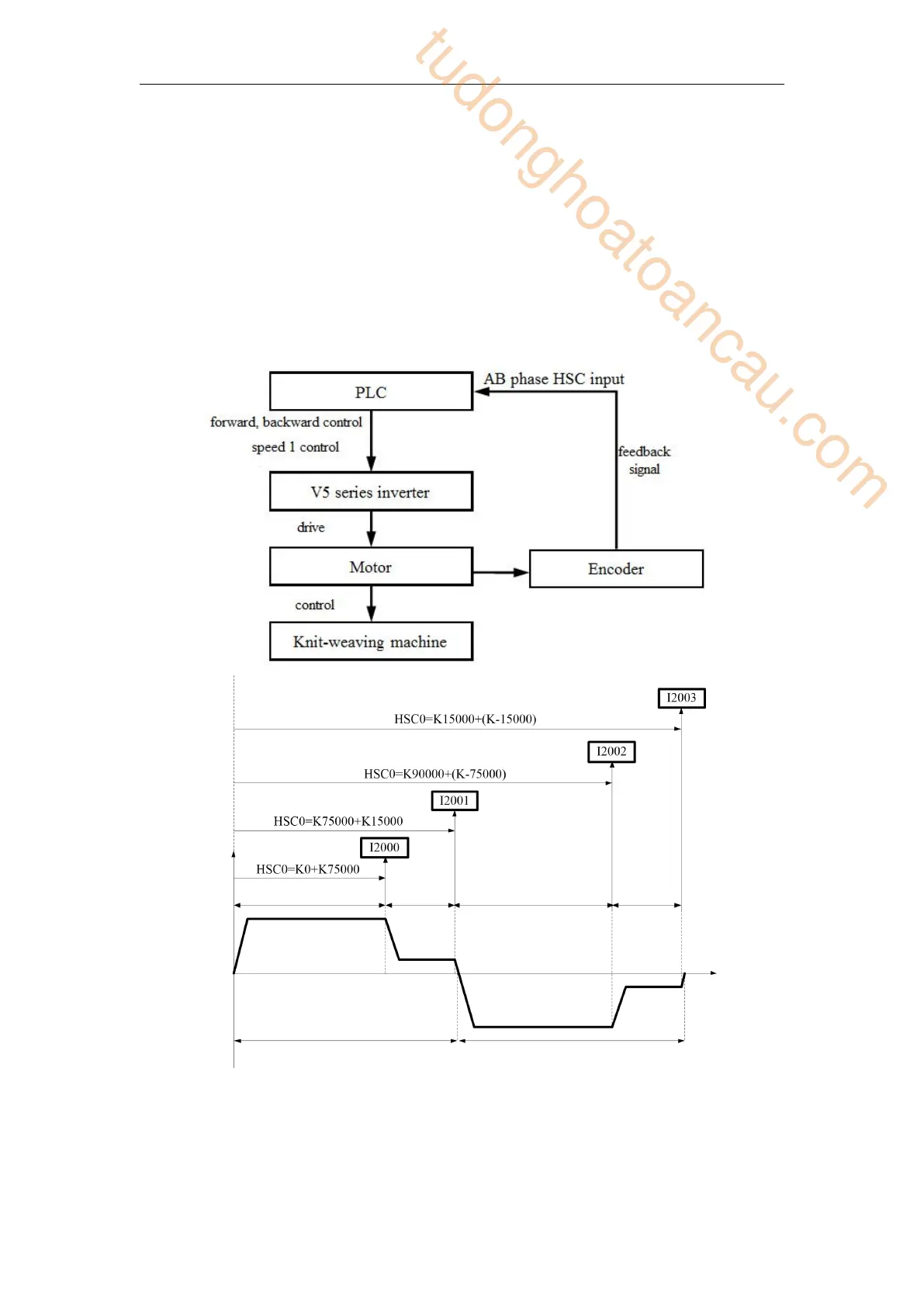

Application 2: knit-weaving machine (continuous loop mode)
The machine principle: Control the inverter via PLC, thereby control the motor. Meantime,
via the feedback signal from encoder, control the knit-weaving machine and the precise
position.
Below is PLC program:
Y2 represents forward output signal;
Y3 represents reverse output signal;
Y4 represents output signal of speed 1;
Pulse frequency f
Forward fast run
Forward
slow run
Reverse fast run
Reverse
slow run
Forward run
Reverse run
Time t
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
