4. Ethernet port (RJ45)
RJ45 port is unique for Ethernet PLC, supports TCP/IP Ethernet communication, the port is
faster and more stable than USB communication, the data monitoring real-time ability is
better, program downloading and uploading is faster. The connection mode of Ethernet
communication itself has obvious advantages over RS485 and USB. In many situations of
PLC communication, users can communicate with any PLC on the spot through only one
switch.
In addition to its application in LAN, Ethernet also supports the remote search, monitoring
and operation of PLC, download functions, and communication with other TCP IP devices in
the network through the Internet.

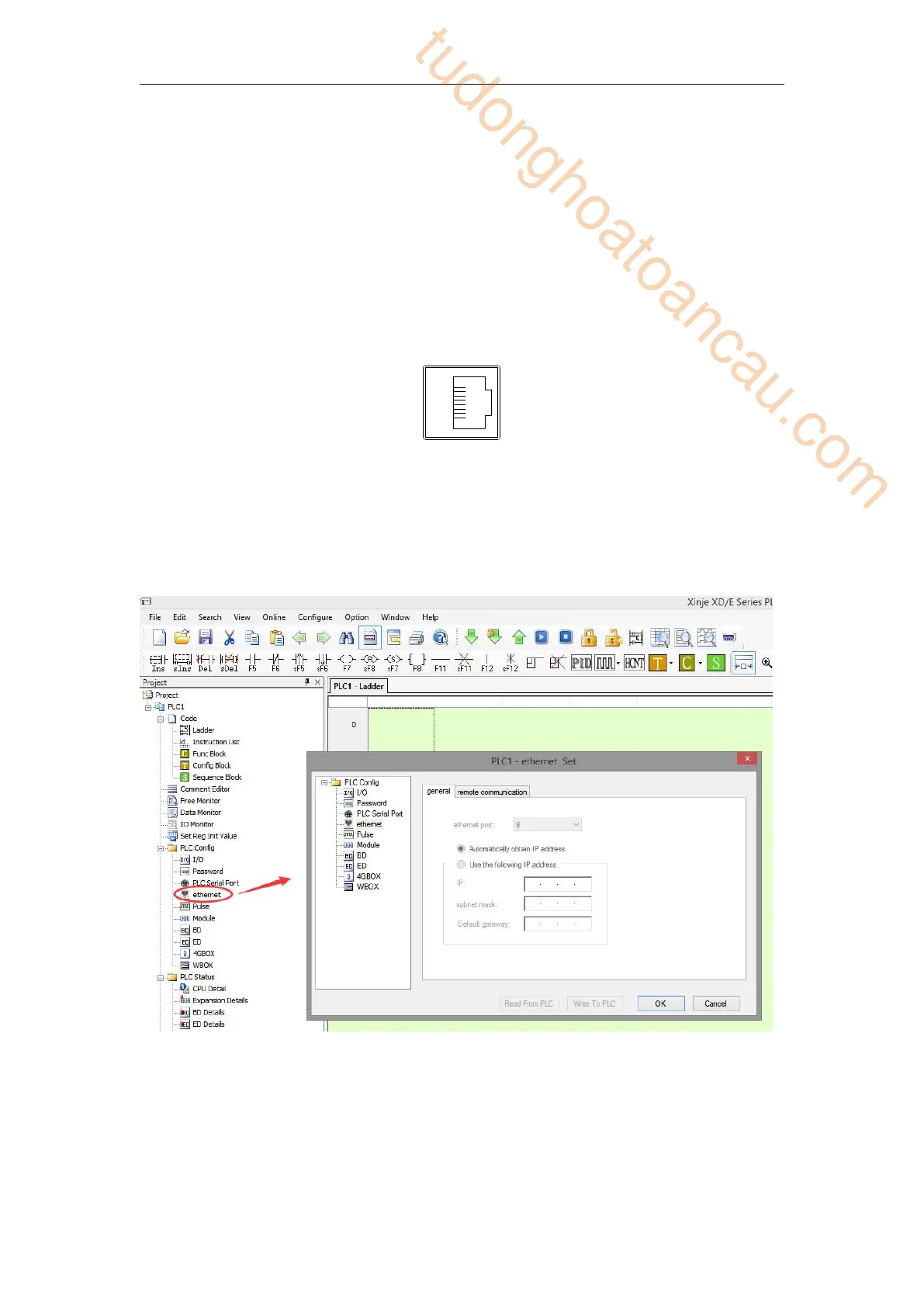

RJ45 port can be configured in "PLC Config-Ethernet" of XINJE PLC programming software,
or through XINJEConfig tool. Refer to the relevant manual for details.
The LAN2 port of XDH series PLC supports EtherCAT bus control function. The number of
axes is up to 32, and the control cycle is less than 1ms. Please refer to EtherCAT motion
control user manual for the specific use of the function.
5. Left extension ED port (COM3)
The left extension ED port can connect ED card to extend RS232 and RS485 port. The ED
models include XD-NES-ED (can extend one RS232 and one RS485 port, but the two cannot
communicate at the same time).
