Xinje XD Series User Manual

283
3) Suitable soft component
Operands
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
●
●
●
●
S2
●
●
●
●
●
n
●
K
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.

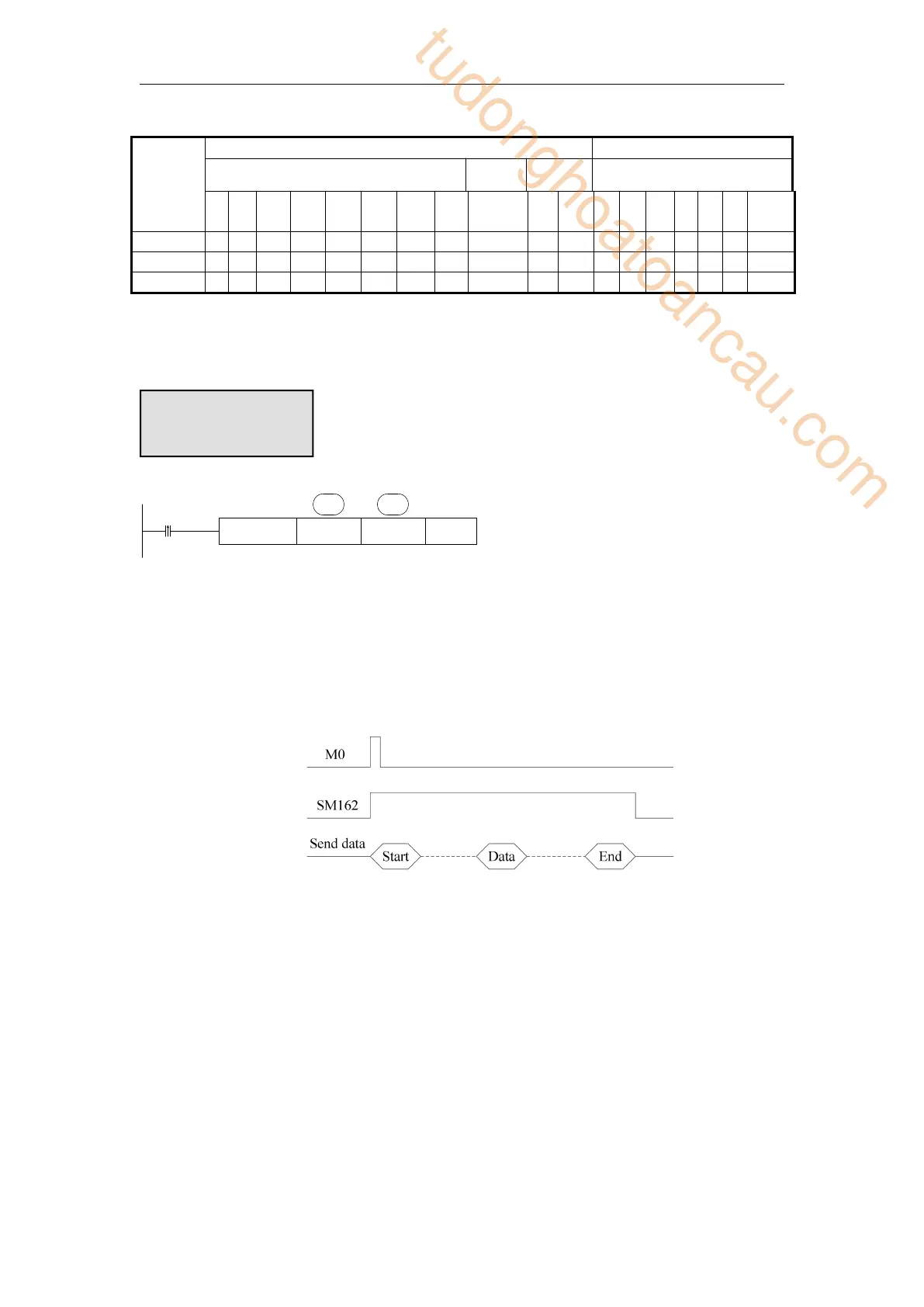

SEND D10 D100 K2
S1·
S2·
n
M0
 Data sending instructions, M0's rising edge sends data once.
 Communication port. Scope: K0 ~ K5. K0: Port0 (RS232), K1: Port1(RS232), K2:
Port2(RS485), K3: Port3(left extension port), K4: Port4(above extension port 1), K5:
Port5(above extension port 2).
 In the process of data transmission, the "sending" flag SM162 (communication port 2)
is set on.
 When the buffer number is 8 bits, only low-byte data is sent, so D100 = the number
of registers sent, for example, to send low-byte data in D10-D17, D100 should be set
to 8.
 When the buffer number is16 bits, high and low byte data will be sent, so D100 = the
number of registers sent * 2. For example, when sending high and low byte data in
D10-D17, D100 should be set to 16, and when sending, low byte will be before the
high byte.
Function and action
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
