Xinje XD Series User Manual

386

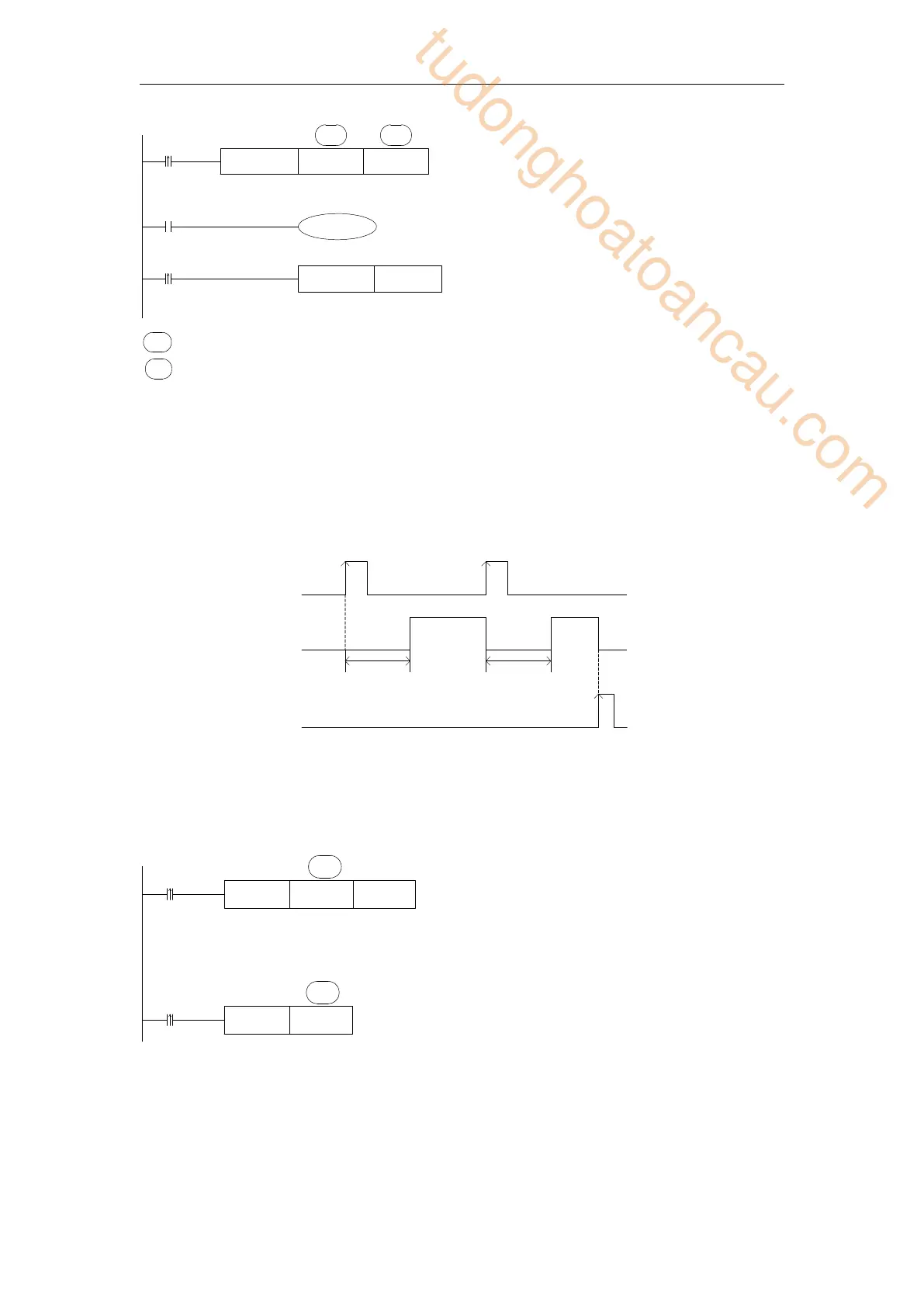

STR ET0 K100
X0
D1·
D2·
Y0
ET0
RST ET0
M0
:Timer’s number. Range: ET0~ET30 (ET0, ET2, ET4……all number should be even)
:Timing value
 Precise timer works in unit of 1ms.
 Precise timer32 bits, the counting range is 0~+2,147,483,647.
 When executing STR, the timer will be reset before start timing.
 When X0 turns from OFF to ON, ET0 starts timing. ET0 will be reset and keep its value 100
when accumulation time reaches 100ms; If X0 again turns from OFF to ON, timer T600 turns
from ON to OFF，restart to time, when time accumulation reaches 100ms, T600 reset again.
See graph below:
X0
ET0
100ms 100ms
M0
When the pre-condition of STR is normally open/closed coil, the precise timer will set ON
immediately when the timing time arrives and reset the timing, and cycle back and forth.
<read the precise timing>, <stop precise time>
DMOV ET0
X0
STOP ET0
M0
D·
D·
D0
D1·
D2·
 When X0 changes from OFF to ON, move the
current precise timing value into D0
immediately, it will not be affected by the scan
cycle;
 When M0 changes from OFF to ON, execute
STOP instruction immediately, stop precise
timing and refresh the count value in ETD0. It
will not be affected by the scan cycle;
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
