Xinje XD Series User Manual

387
Interruption Tag corresponding to the Timer:
Timer’s No
Interruption Tag
Timer’s No
Interruption Tag
ET0
I3000
ET10
I3005
ET2
I3001
ET12
I3006
ET4
I3002
……
……
ET6
I3003
ET22
I3011
ET8
I3004
ET24
I3012
Example 1
The filling machine controls the filling capacity by controlling the liquid valve open time (it is
3000ms in this application). To improve the filling capacity precision, the liquid valve open
time can be controlled by precise timing.
Filling machine

When the precise timing reaches the count value, it will generate an
interruption tag, interruption subprogram will be executed.

Can start the precise timing in precise timing interruption;


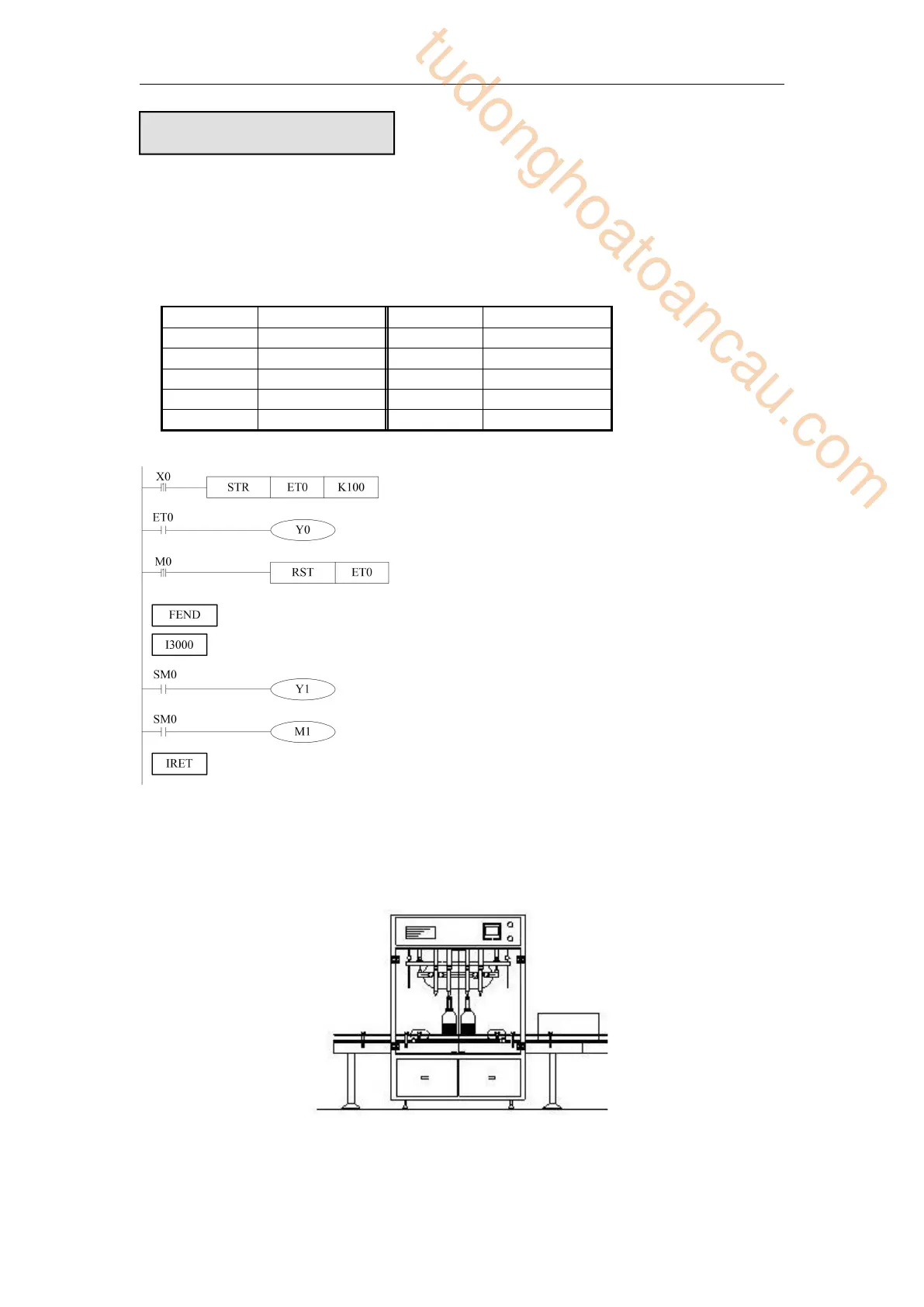

Every precise timer has its own interruption tag, as shown below:
PreciseTiming Interruption
When X0 changes from OFF to ON,
ET0 will start timing. And ET0 reset
when accumulation time is up to
100ms; meantime generates an
interruption, the program jumps to
interruption tag I3000 and execute the
subprogram.
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
