Xinje XD Series User Manual

388
Component explanation:
PLC
component
Control explanation
Mark
X0
Start button, X0 is ON when the button is pressed
ET0
Precise timer
Y0
Control the liquid valve, Y0 ON when the valve
opened, Y0 OFF when the valve closed

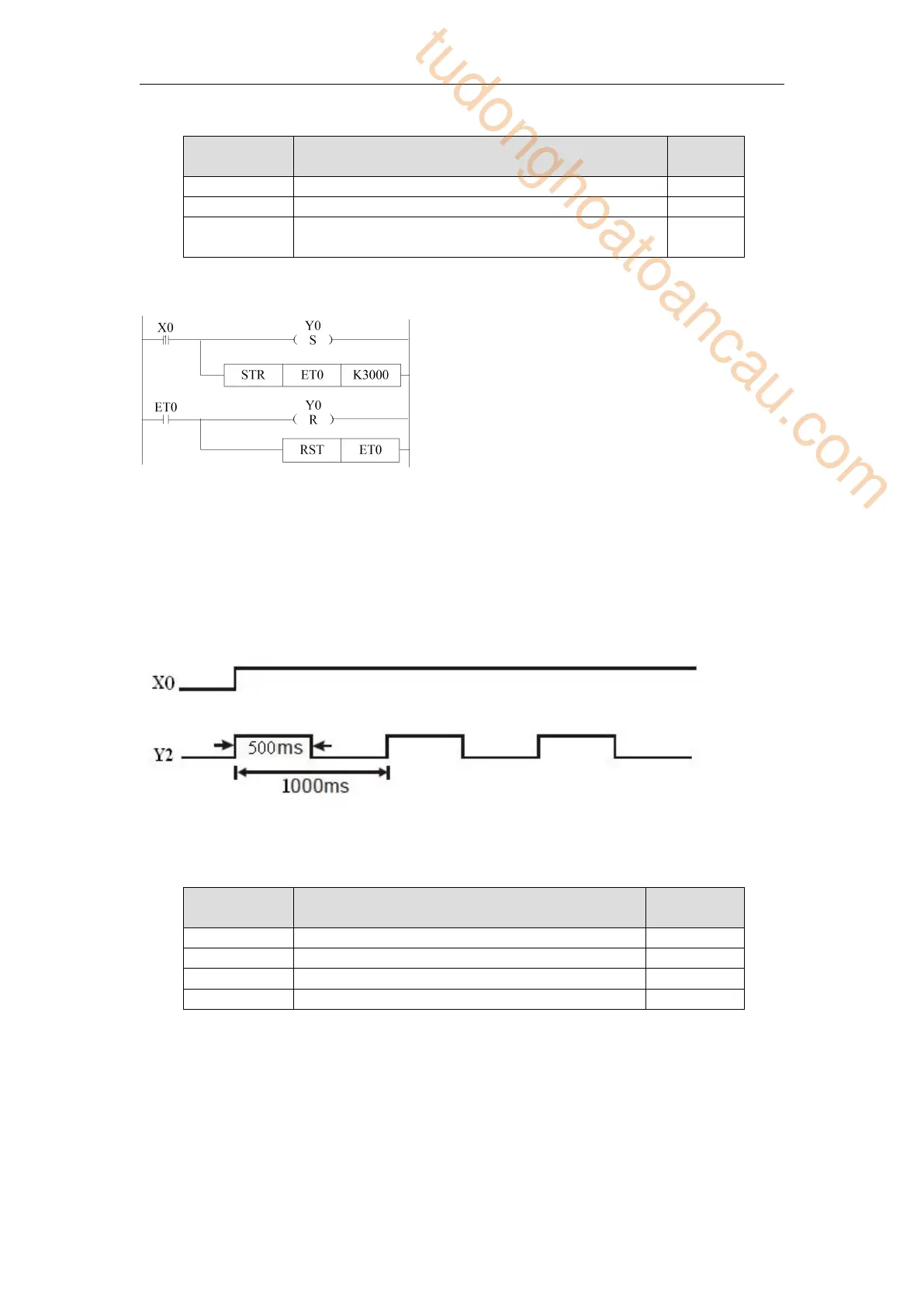

Program:
Program explanation:
1. When X0 is ON, the liquid valve Y0 and precise timer ET0 open at once.
2. Shut down the liquid valve Y0 and precise timer ET0 when the time arrived.
Example 2
The precise timer interruption can produce the following pulse wave. The Y2 ON time is
500ms, the pulse period is 1000ms.
Component explanation:
PLC
component
Control explanation
Mark
X0
Start button, X0 is ON when button is pressed
Y2
Pulse output terminal
M0
Internal auxiliary coil
ET0
Precise timer
Program:
tudonghoatoancau.com

Xinje XD Series Specifications

General

Input Voltage	24V DC
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Type	PLC
Series	XD
Programming Language	Ladder Logic, Instruction List
Communication Interface	RS232, RS485
Power Supply	24V DC
Digital Inputs	Available (number varies by model)
Digital Outputs	Available (number varies by model)
Analog Inputs	Available (number varies by model)
Analog Outputs	Available (number varies by model)
Output Type	Relay, Transistor
Number of Inputs	Varies by model (see Digital Inputs and Analog Inputs)
Number of Outputs	Varies by model (see Digital Outputs and Analog Outputs)
Operating Temperature	0°C to 50°C
Humidity	5% to 95% (non-condensing)
