Xinje XD Series User Manual

389
Program explanation:
1. When X0 is ON, the precise timer interruption will work, Y2 will output the pusle
wave.
2. When X0 is OFF, shut down the precise timer interruption, Y2 stop outputting.
Example 3
As the FRQM calculating the time for fixed pulse numbers, we will change the way to
calculate the pulse numbers in fixed time.
Component explanation:
PLC
component
Control explanation
Mark
M0
Start button, X0 is ON when pressed
ET0
Precise timer
HD0
Precise timer setting value (unit: ms)
HSC0
High speed counter
D10
The measured frequency (unit: s)

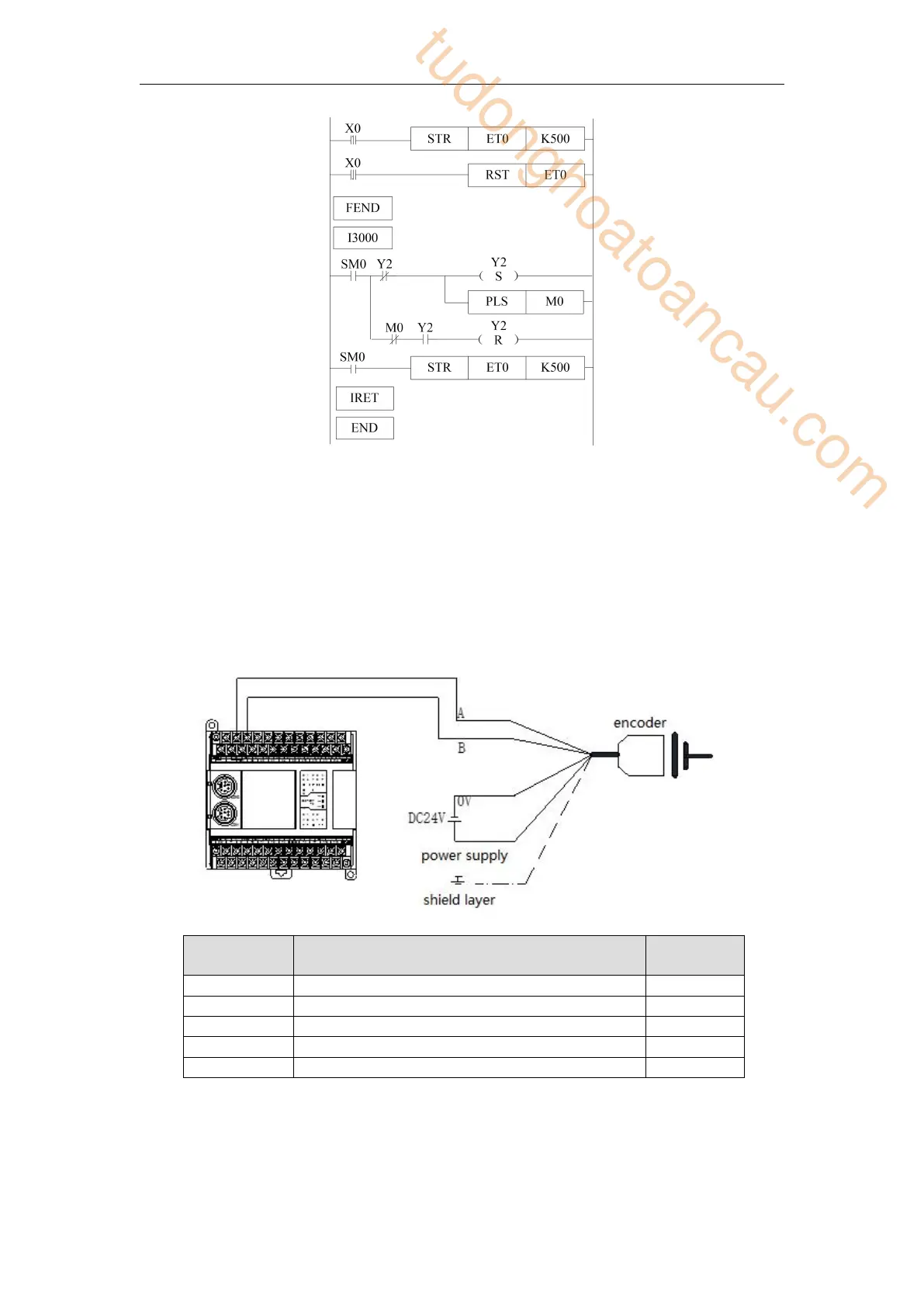

Program:
