Yamaha F150B - Fuel System; Hose Routing; Fuel Hose and Blowby Hose

6-1
FUEL
Fuel system

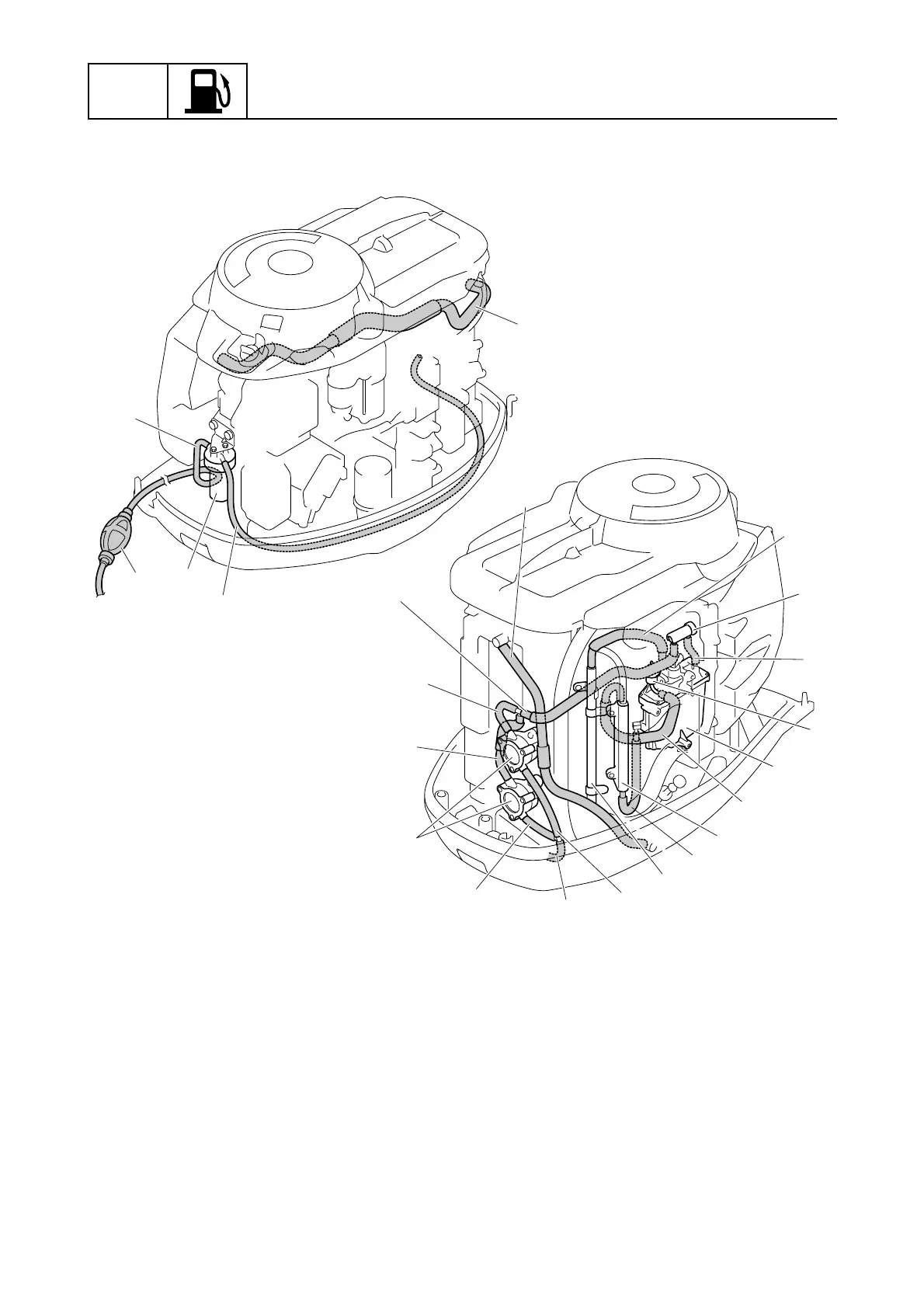

Hose routing
Fuel hose and blowby hose
a Fuel hose (primer pump-to-fuel filter)
b Fuel hose (fuel filter-to-joint)
c Fuel hose (joint-to-fuel pump)
d Fuel hose (joint-to-fuel pump)
e Fuel hose (fuel pump-to-joint)
f Fuel hose (fuel pump-to-joint)
g Fuel hose (joint-to-filter)
h Fuel hose (filter-to-vapor separator)
i Fuel hose (vapor separator-to-fuel rail)
j Fuel hose (pressure regulator-to-fuel cooler)
k Fuel hose (fuel cooler-to-vapor separator)
l Blowby hose (cylinder block-to-cylinder head
cover)
m Blowby hose (cylinder head cover-to-intake
silencer)
a Primer pump
b Fuel filter
c Fuel pump
d Filter
e Vapor separator
f Fuel rail
g Pressure regulator
h Fuel cooler
a
b
b
b
g
f
e
c
d
k
j
h
i
l
m
c
f
h
e
g
d
a
