Yamaha F150B - Drive Shaft and Lower Case (Regular Rotation Model); Removing the Drive Shaft; Disassembling the Drive Shaft Housing; Disassembling the Forward Gear

8-16
Drive shaft and lower case (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

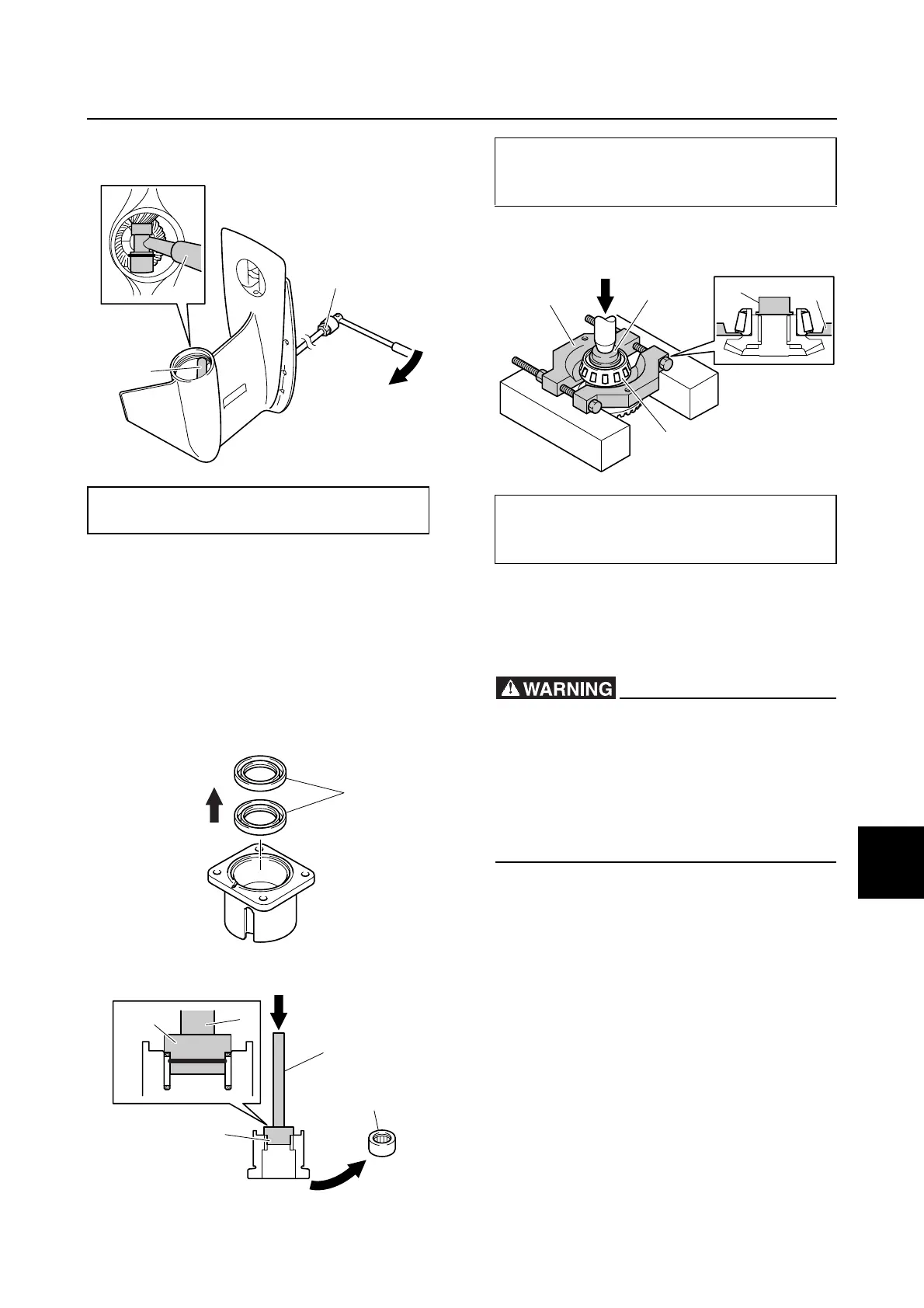

Removing the drive shaft
1. Remove the pinion nut.
2. Remove the drive shaft housing, shim(s)
(T3), thrust bearing, drive shaft, and
pinion.
3. Pull out the forward gear assembly.
Disassembling the drive shaft
housing
1. Remove the oil seals a.
2. Remove the needle bearing b.
Disassembling the forward gear
1. Remove the taper roller bearing a.
2. Remove the needle bearings from the
forward gear.
Disassembling the lower case
• Use heat-resistant gloves, otherwise
burns could result.
• Remove any flammable substances,
such as gasoline and oil, around the
working area to avoid the risk of fire.
• Heat the lower case in a well-ventilated
area.
1. Remove the water inlet covers.
Drive shaft holder 6 a: 90890-06520
Pinion nut holder b: 90890-06715
a
b
b
a
b
c
d
c
d
Needle bearing attachment c:
90890-06610
Driver rod L3 d: 90890-06652
Bearing separator b: 90890-06534
Needle bearing attachment c:
90890-06608
c
b
a
b
c
