3-11
RIG
GING
Rigging information

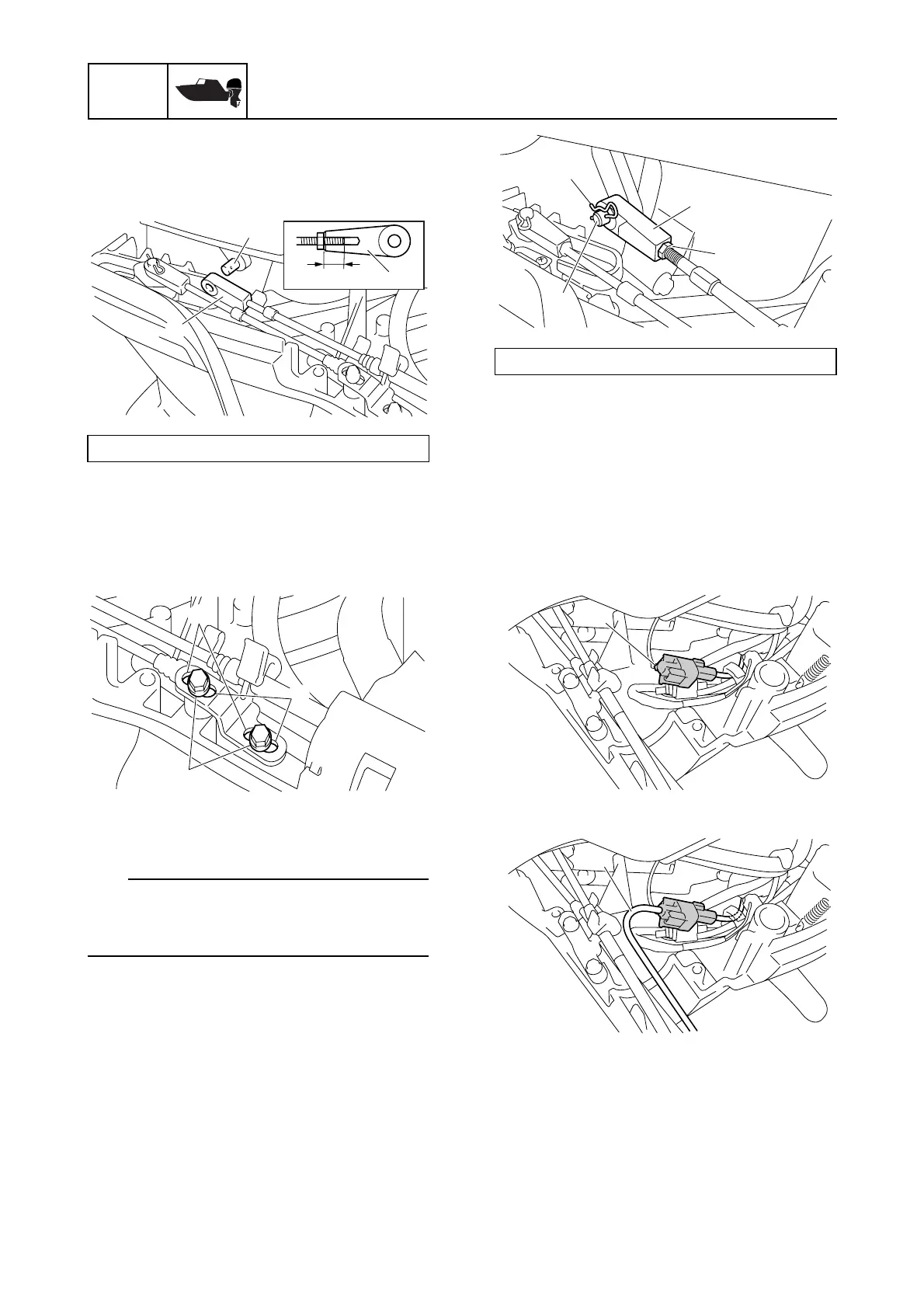

5. Adjust the cable joint a to the pin c of
the throttle cam. WARNING! The
throttle cable joint must be screwed in
a minimum 8.0 mm (0.31 in).
6. If the cable joint is not maintained the
engagement of minimum 8.0 mm
(0.31 in) d, remove the bolts f and
remount the holder with the holes e or
f.
7. Install the cable joint a to the pin c, and
secure it with the clip g.
TIP:
Pull the inner cable to avoid the free play
(backlash) of the cable, and install it to the
pin.
8. Tighten the locknut h to the specified
torque.
9. Check the throttle cable for proper
operation.
Installing the isolator lead (option)
Carry out the following procedures only when
the isolator lead (option) is used.
1. Remove the cap a from the isolator cou-
pler.
2. Connect the isolator lead b it’s coupler.
Installing the gauge harness
See “Rigging guide” for the installation of the
gauge to the boat.
1. Remove the coupler a from the bracket
a.
Dimension d: 8.0 mm (0.31 in)
c
a
a
d
f
e
f
Locknut h: 5 N·m (0.5 kgf·m, 3.7 ft·lb)
a
c
g
h
a
b
