Yamaha F150B - Water Pump and Shift Rod (Regular Rotation Model); Removing the Water Pump and Shift Rod; Disassembling the Water Pump Housing

8-6

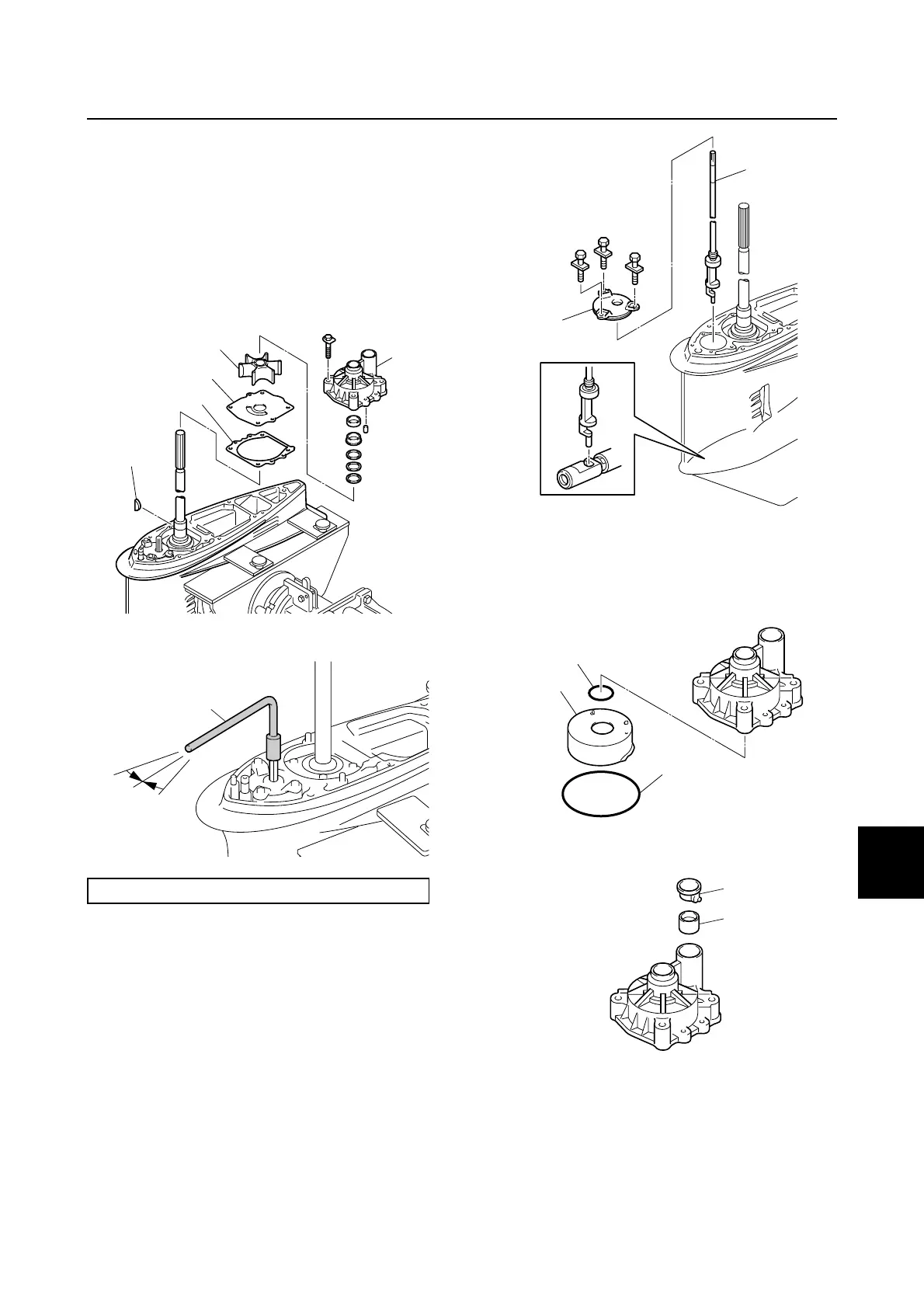

Water pump and shift rod (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
Removing the water pump and shift
rod
1. Install the lower unit onto a repair stand.
2. Remove the water pump housing a,
impeller b, and Woodruff key c.
3. Remove the outer plate cartridge d and
gasket e.
4. Set the gear shift to the N position.
5. Remove the oil seal housing g and shift
rod assembly h.
Disassembling the water pump
housing
1. Remove the O-ring a, insert cartridge
b, and O-ring c.
2. Remove the cover d and seal e.
Shift rod push arm f: 90890-06052
a
b
c
d
e
R
N
F
f
g
h
a
b
c
d
e
