Yamaha F150B - Installing the Water Temperature Sensor (Option); Installing the 6 Y8 Multifunction Meter Harness (Option); Install the Speed Sensor (Option for 6 Y8 Multifunction Meter)

3-12
Mounting the rigging grommet
0
1
2
3
4
5
6
7
8
9
10
A

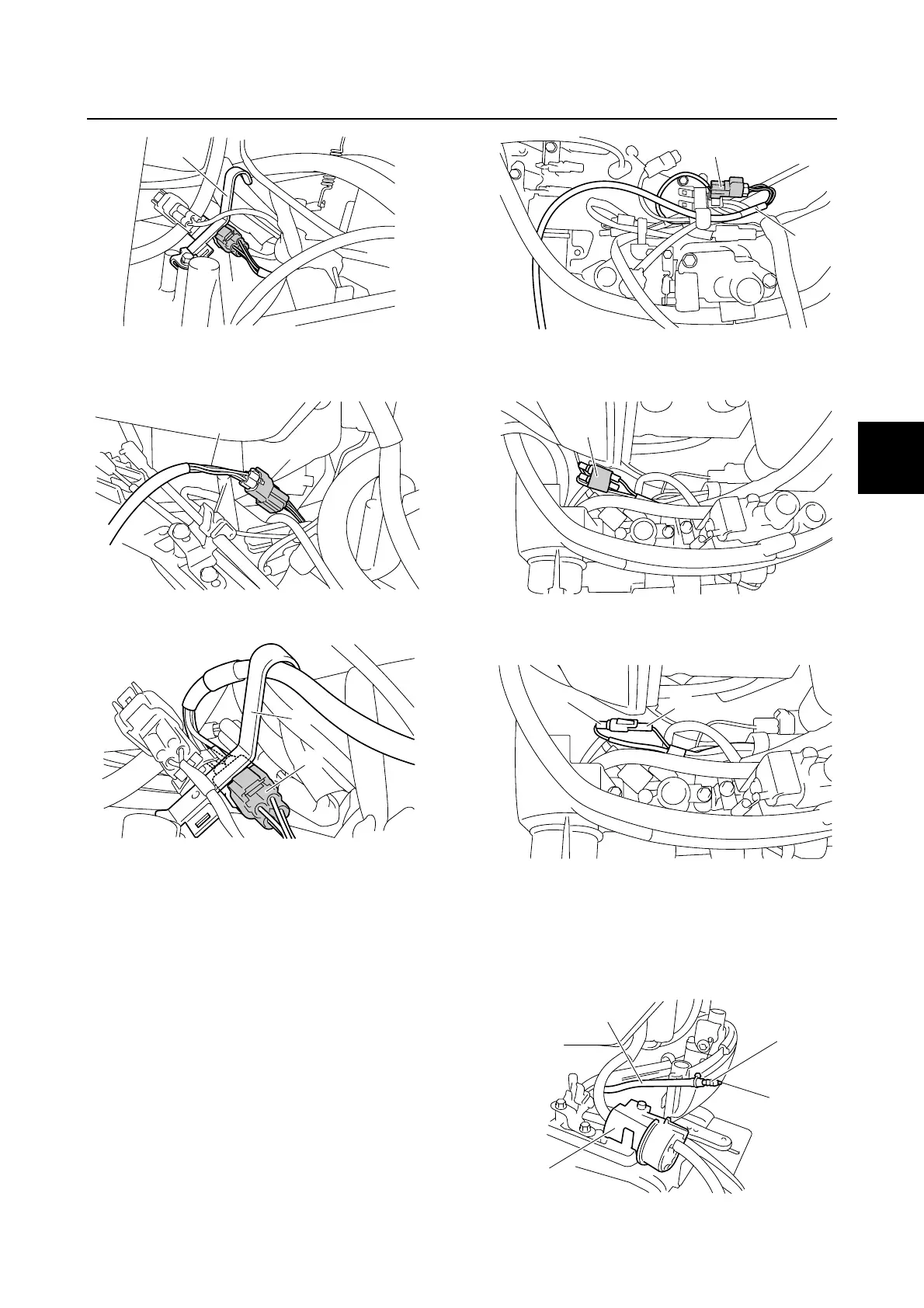

2. Connect the gauge harness b to the
coupler a.
3. Install the coupler a to the bracket a.
Installing the water temperature
sensor (option)
See “Rigging guide” for the installation proce-
dures of water temperature sensor.
Installing the 6Y8 Multifunction
Meter harness (option)
• See “6Y8 Multifunction Meter set up man-
ual” for the installation of 6Y8 Multifunction
Meter to the boat.
• Perform the following procedure when the
optional 6Y8 Multifunction Meter is used.
1. Remove the cap from the coupler a, and
then connect the meter harness a to the
coupler a.
2. Remove the yellow tape b to make the
wires loose.
3. Remove the each caps, and then
connect the couplers c and d.
Install the speed sensor (option for
6Y8 Multifunction Meter)
1. Remove the speedometer hose a from
grommet b, and then cut off the tip a of
the nipple c.
a
a
b
a
a
a
a
a
b
c
d
a
b
c
a
