Yamaha F150B - Upper Case

9-16

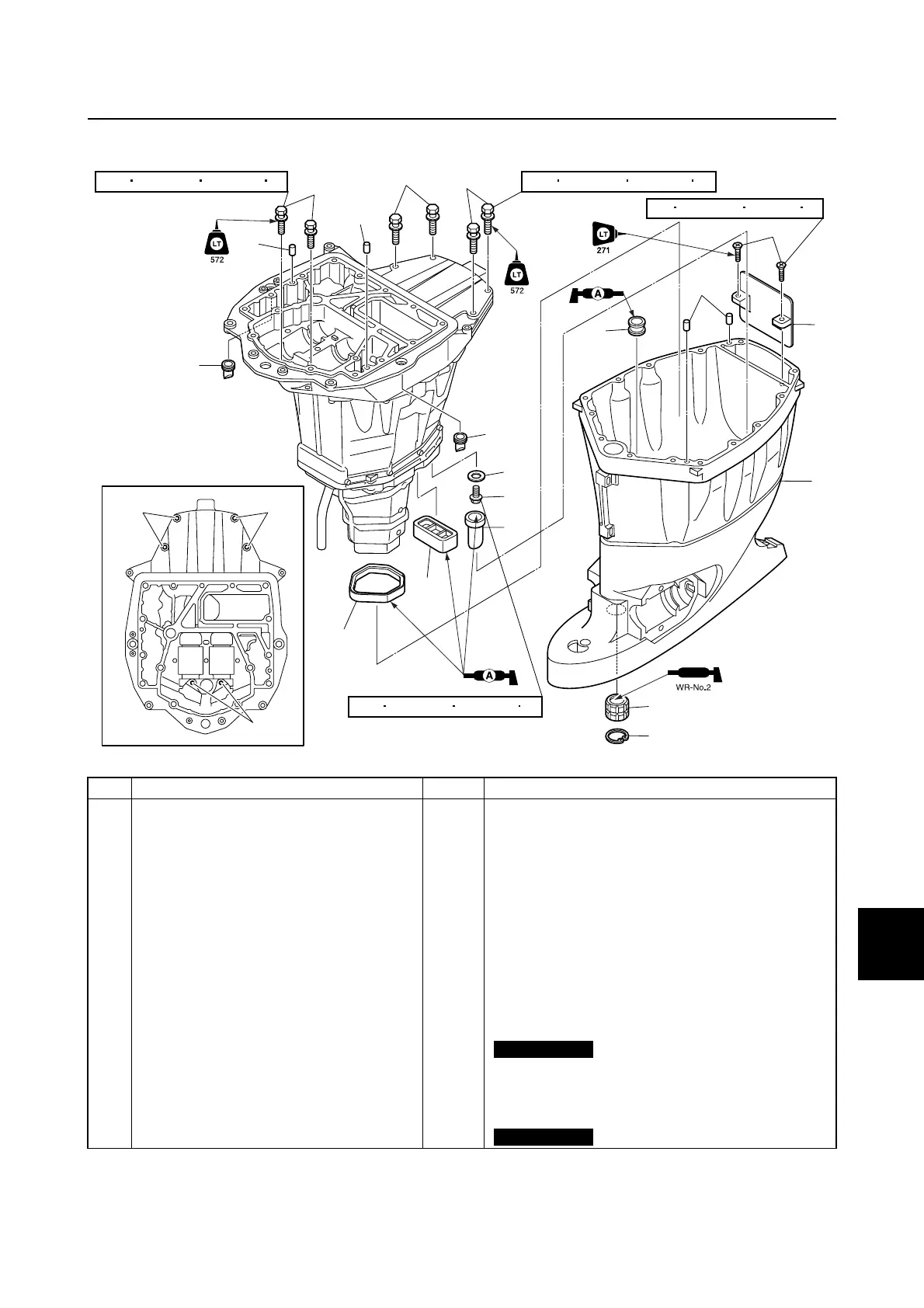

Upper case
0
1
2
3
4
5
6
7
8
9
10
A
Upper case
No. Part name Q’ty Remarks
1 Upper case 1
2 Circlip 1
3 Bushing 1
4 Rubber seal 1
5Dowel 2
6Screw 2 M6 × 15 mm
7 Baffle plate 1
8Bolt 2 M8 × 30 mm
9Dowel 2
10 Bolt 4 M10 × 45 mm
11 Grommet 2
12 Gasket 1
Not reusable
13 Drain bolt 1
14 Damper 1
15 Rubber seal 1
16 Rubber seal 1
Not reusable
4 N m (0.4 kgf m, 3.0 ft lb)
1
2
3
4
5
6
7
8
9
9
10
10
11
11
10
8
10
12
13
14
15
16
42 N m (4.2 kgf m, 31.0 ft lb)
27 N m (2.7 kgf m, 19.9 ft lb)
20 N m (2.0 kgf m, 14.8 ft lb)
Upper case and mounts / Upper case
