Yamaha F150B - Installing the Tilt Ram

9-56
PTT cylinder
0
1
2
3
4
5
6
7
8
9
10
A
7. Install the PTT gear pump. See
“Assembling the gear pump assembly”
(9-48).
8. Install the PTT reservoir. See “Installing
the reservoir” (9-44).

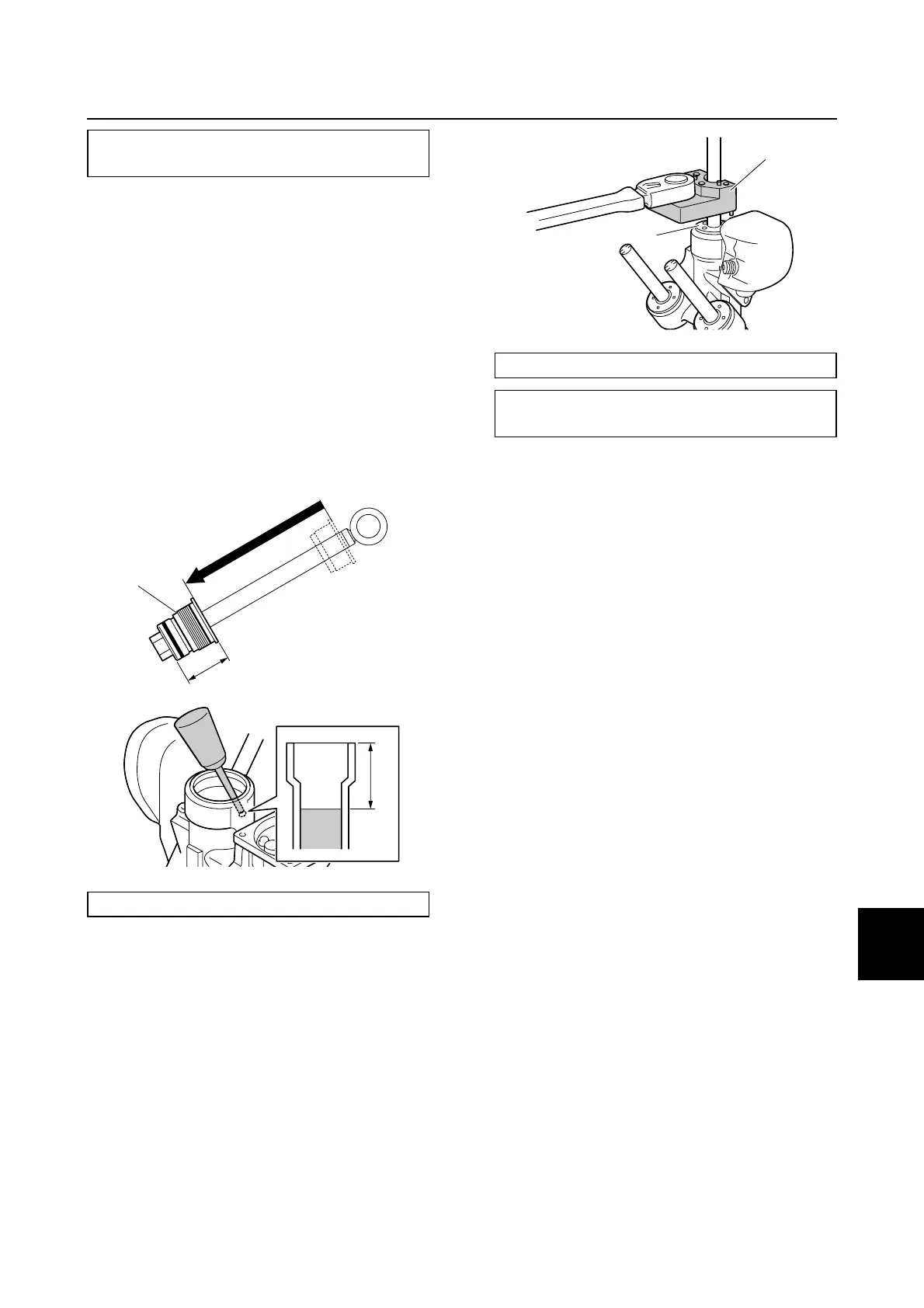

Installing the tilt ram
1. Place the tilt cylinder end screw a at the
position a.
2. Fill the tilt cylinder and PTT body with the
recommended fluid to the correct level
b.
3. Place the tilt cylinder end screw at
position a, install the tilt ram assembly
into the tilt cylinder, and then tighten the
tilt cylinder end screw a to the specified
torque.
4. Install the PTT motor assembly. See
“Installing the PTT motor” (9-44).
Trim cylinder end screw e:
140 N·m (14.0 kgf·m, 103.3 ft·lb)
Recommended PTT fluid: ATF Dexron ΙΙ
a
a
b
b
Trim and tilt wrench b: 90890-06587
Trim cylinder end screw a:
128 N·m (12.8 kgf·m, 94.4 ft·lb)
a
b
