Rigging information

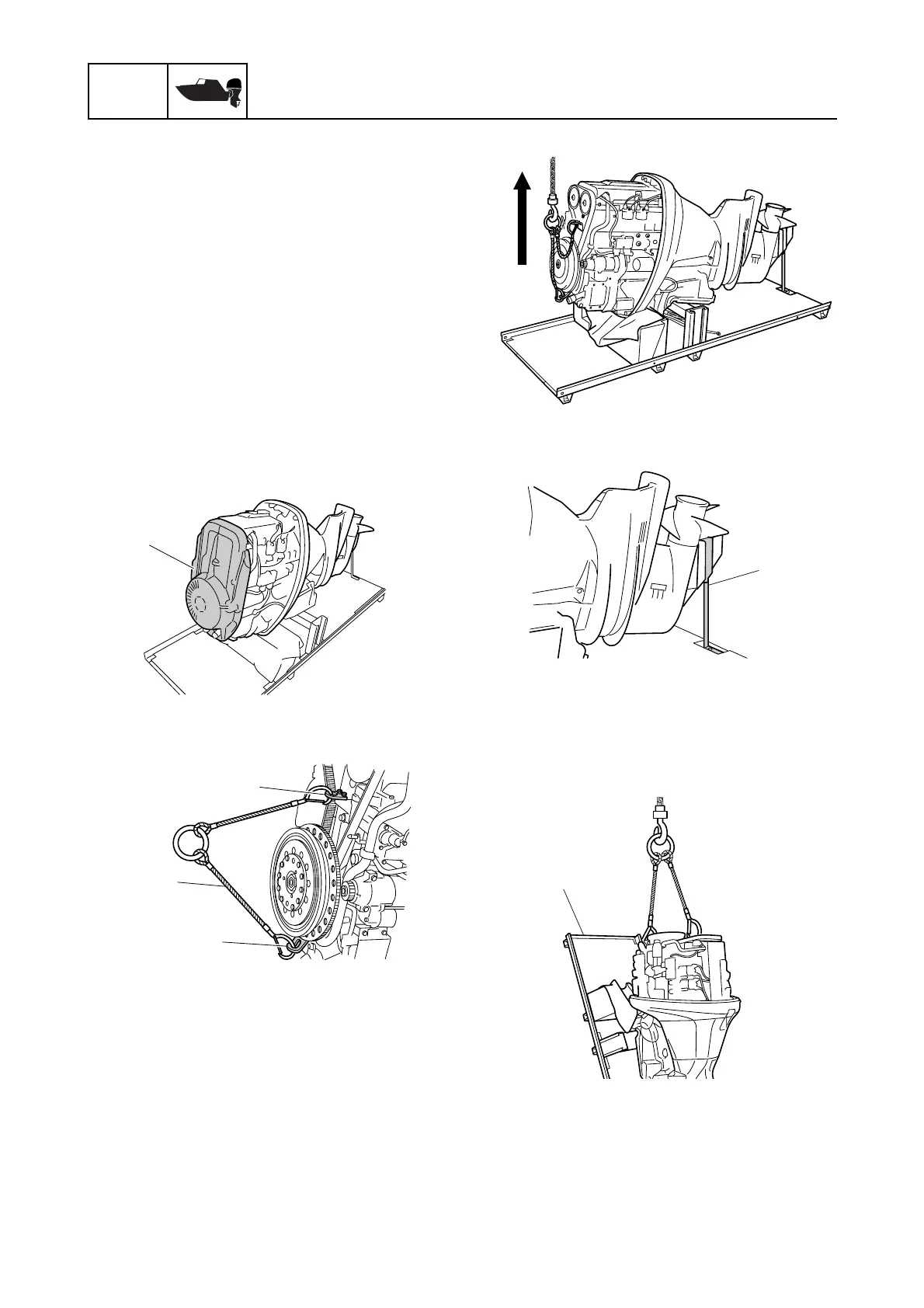

Uncrate procedure
1. Check for any shipping damage.
2. Remove the top cover.
3. Remove all bolts from the bottom plate,
and remove the frame. NOTICE: Be
careful not to cause any damage to
the outboard motor.
4. Remove the wrapping, and check the
outboard motor for concealed damage. If
any damage is found, use the concealed
crate damage claim procedure.
5. Remove the top cowling and the flywheel
magnet cover a.
6. Install a lifting harness b to the engine
hangers c.
7. Tension the lifting harness.
8. Remove the skeg holder d.
9. Carefully lift up the outboard motor
together with the bottom frame e.
NOTICE: Do not allow the lifting
harness to damage any parts of the
outboard motor.
10. Remove the bolts f.
a
b
c
c
d
e
