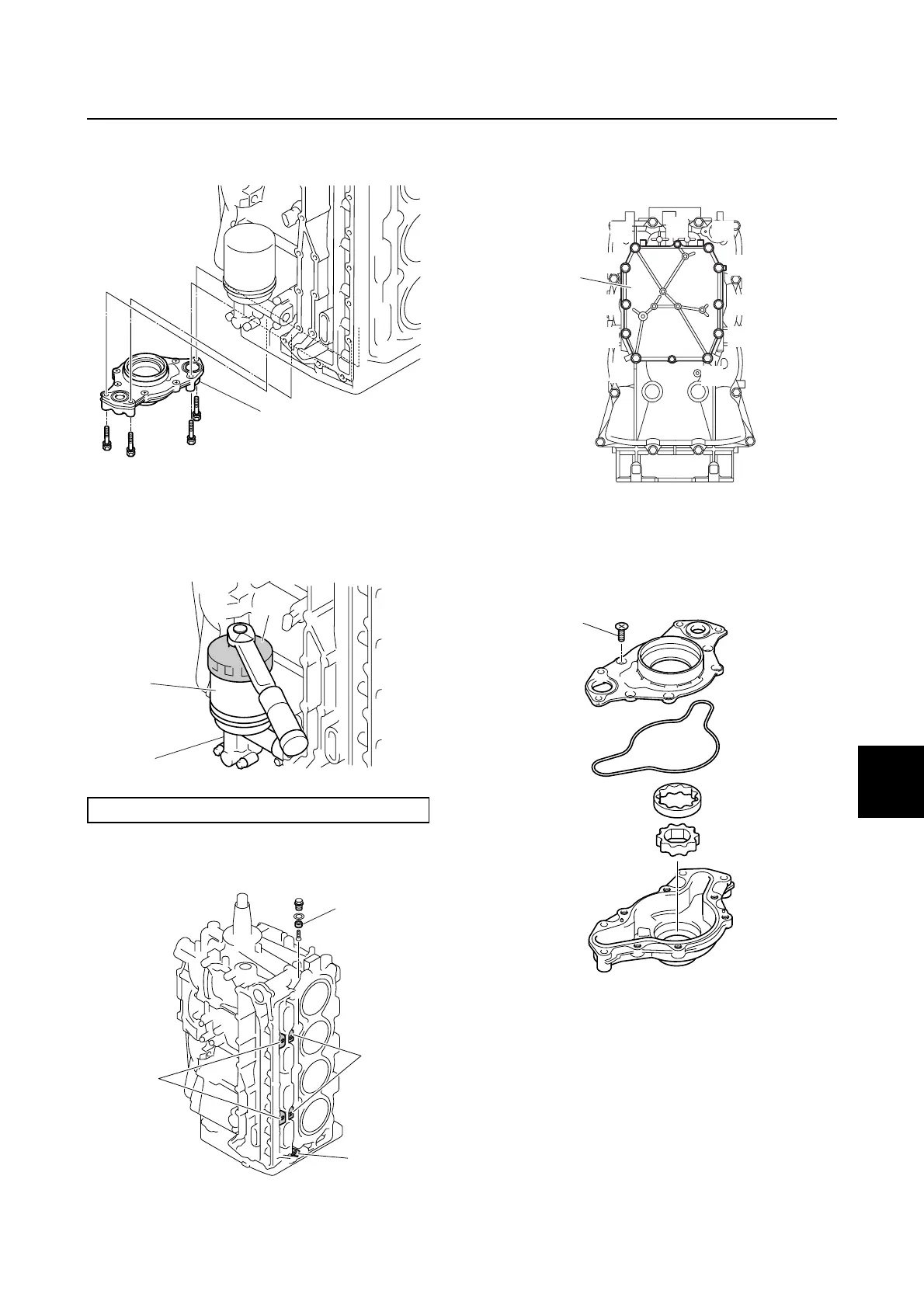

Removing the oil pump assembly
1. Remove the oil pump a.
Removing the oil filter bracket
1. Remove the oil filter a using a 72.5 mm
(2.9 in) oil filter wrench b, and then
remove the oil filter bracket c.
Removing the anode (cylinder block)
1. Remove the anodes a, b, c and d.
Removing the crankcase cover
1. Remove the crankcase cover a bolts in
the sequence numbers (a, b, · · ·).
Disassembling the oil pump
assembly
1. Remove the screws a and disassemble
the oil pump.
Checking the oil pump assembly
1. Check the gear teeth and inner surface of
the oil pump case. Replace the oil pump
assembly if the gear teeth are cracked or
worn, or if inner surface of the oil pump
case is scratched.
Oil filter wrench b: 90890-06830
