Yamaha F150B - Assembling the Trim Ram

9-54
PTT cylinder
0
1
2
3
4
5
6
7
8
9
10
A

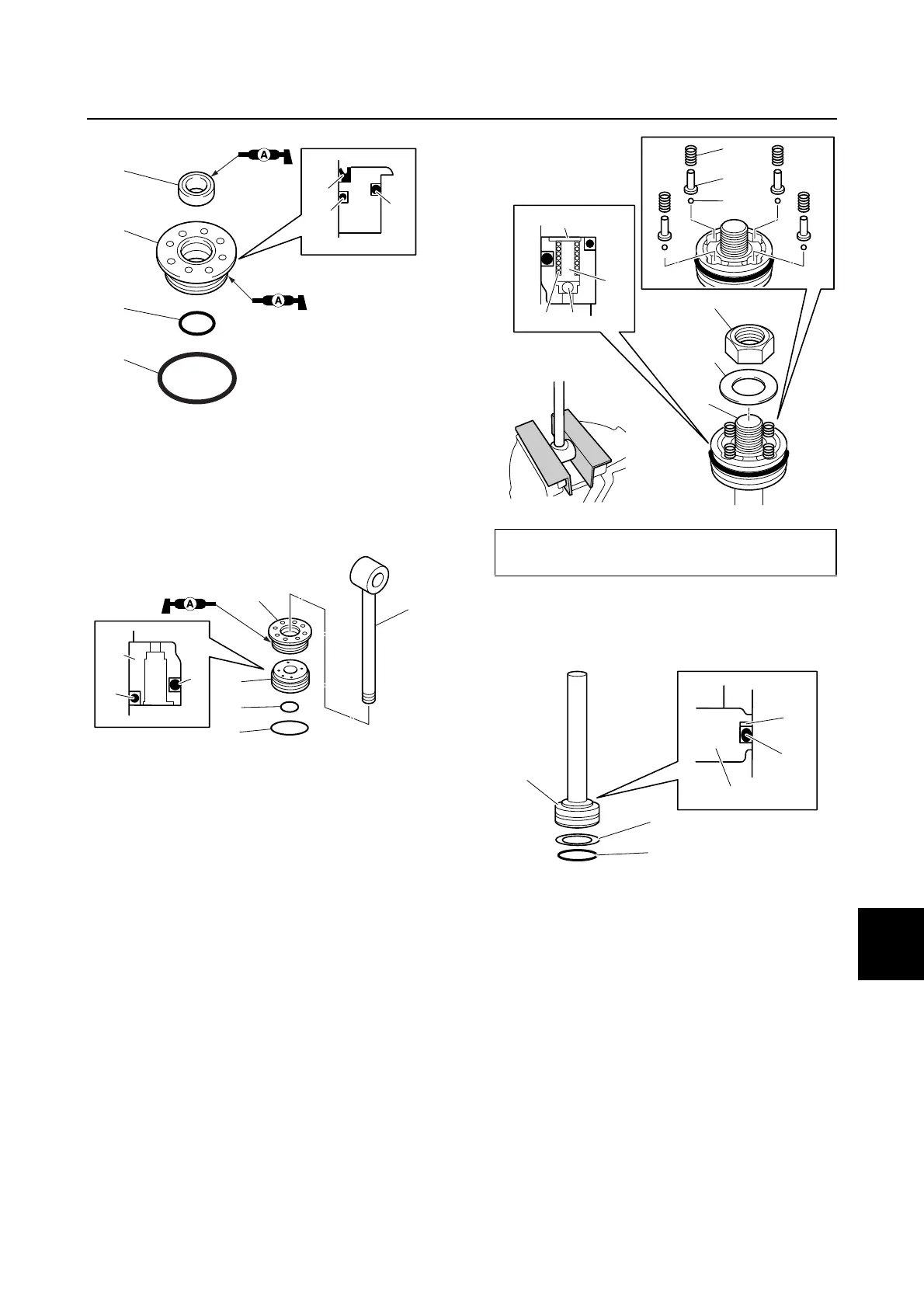

2. Install the tilt cylinder end screw d and
tilt piston e to the tilt ram f.
3. Install new O-rings g and h to the tilt
piston e.
4. Hold the tilt ram end.
5. Install the balls i, absorber valve pins
j, and springs k.
6. Install the washer l and nut m to the tilt
ram f, and then tighten the nut m to the
specified torque.
Assembling the trim ram
1. Install the backup ring a and a new O-
ring b to the trim ram c.
a
b
d
c
a
b
c
d
e
e
g
h
h
f
g
Tilt piston nut m:
96 N·m (9.6 kgf·m, 70.8 ft·lb)
i
i
j
j
f
k
k
l
l
m
b
b
a
a
c
c
