7-45
Power unit
POWR

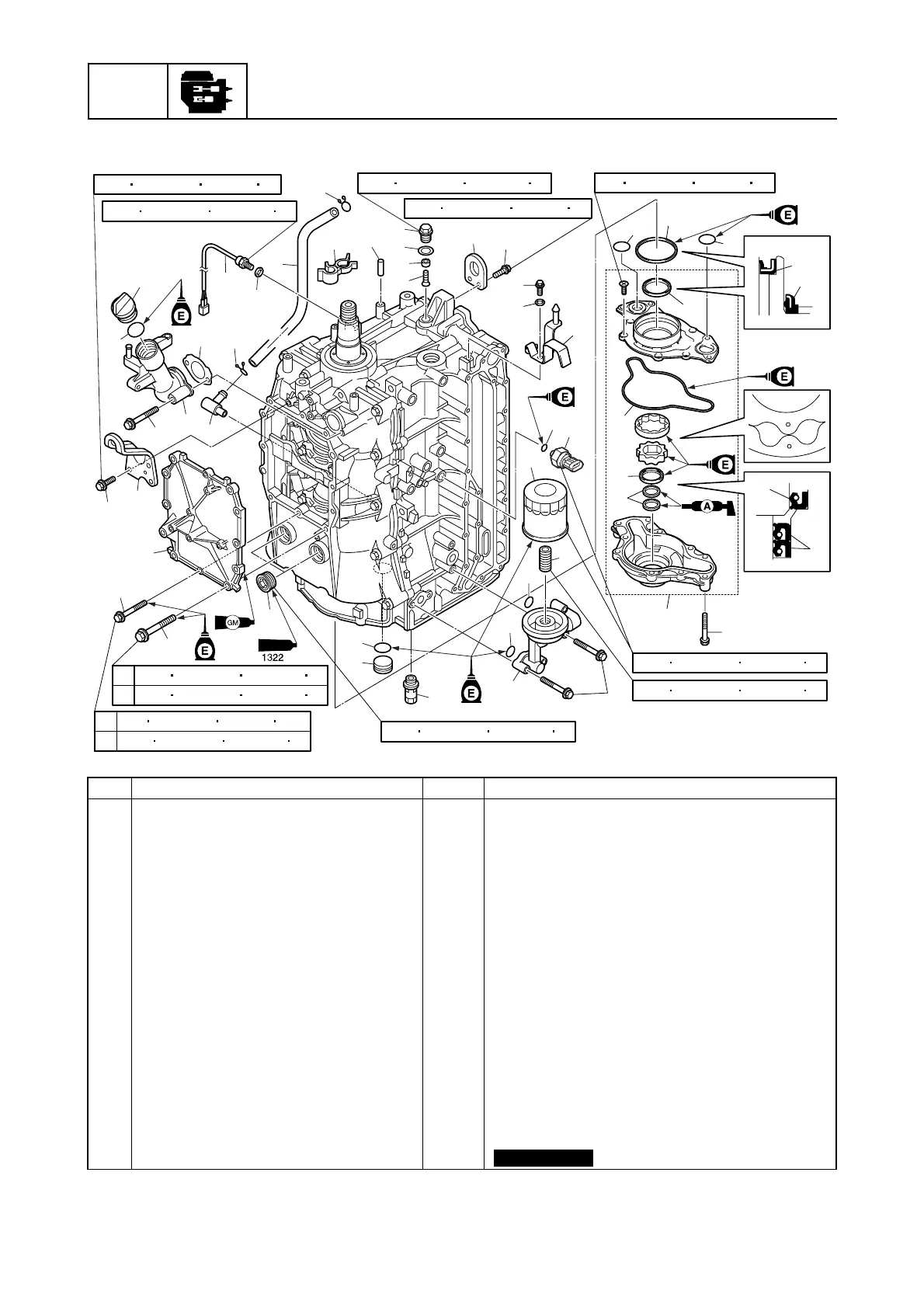

Cylinder block
No. Part name Q’ty Remarks
1 Nipple 1
2 Clip 2
3Hose 1
4 Holder 1
5 Engine temperature sensor 1
6 Washer 1
7Dowel 1
8Plug 1 M14 × 12 mm
9 Washer 1
10 Anode 1
11 Screw 1 M5 × 12 mm
12 Engine hanger 1
13 Bolt 2 M6 × 20 mm
14 Washer 1
15 Bolt 1 M6 × 16 mm
16 Bracket 1
17 O-ring 1
Not reusable
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
42
43
43
44
45
a
b
7 N m (0.7 kgf m, 5.2 ft lb)
31 N
m (3.1 kgf m, 22.9 ft lb)
a
b
18 N m (1.8 kgf m, 13.3 ft lb)
31 N
m (3.1 kgf m, 22.9 ft lb)
54 N m (5.4 kgf m, 39.8 ft lb)
18 N m (1.8 kgf m, 13.3 ft lb)
34 N m (3.4 kgf m, 25.1 ft lb)
12 N m (1.2 kgf m, 8.9 ft lb)
12 N m (1.2 kgf m, 8.9 ft lb)
15 N m (1.5 kgf m, 11.1 ft lb)
23 N m (2.3 kgf m, 17.0 ft lb)
4 N m (0.4 kgf m, 3.0 ft lb)
38
39
