Yamaha F150B - Removing the Wiring Harness

7-8
Wiring harness
0
1
2
3
4
5
6
7
8
9
10
A

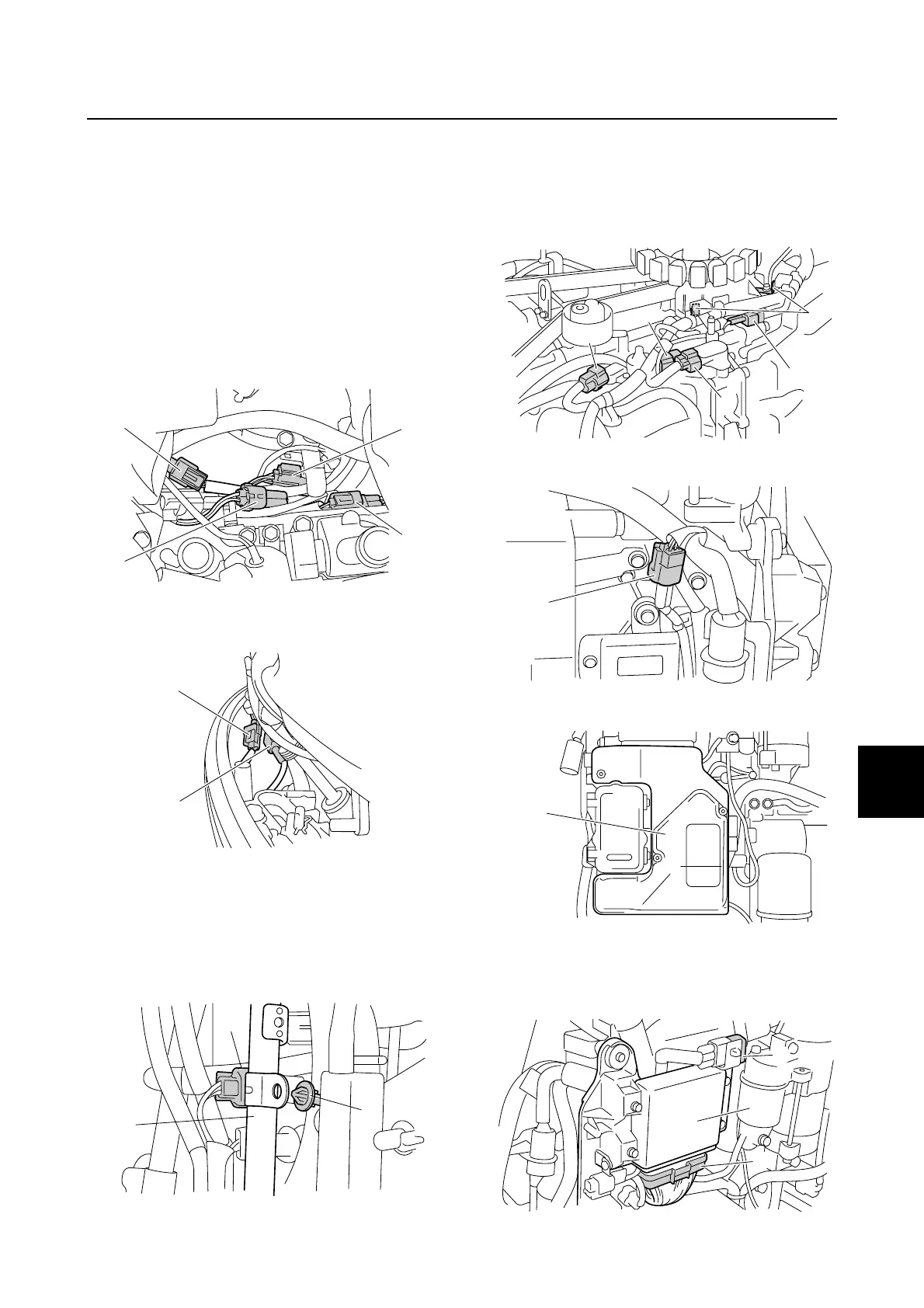

Removing the wiring harness
1. Remove the flywheel magnet cover.
2. Remove the flywheel magnet. See
“Removing the flywheel magnet” (7-6).
3. Disconnect the PTT switch coupler a,
trim sensor coupler b, and water
detection switch coupler c.
4. Remove the gauge harness coupler d
from the bracket.
5. Disconnect the shift cut switch coupler e
and neutral switch coupler f.
6. Disconnect the all fuel injector couplers.
7. Disconnect the fuel pump coupler g.
8. Remove the projection h of the plastic
tie from the fuel rail a.
9. Disconnect the TPS coupler k, ISC
coupler m, air pressure sensor coupler
n, and engine temperature sensor
coupler p, and then remove the wiring
harness from the brackets b.
10. Disconnect the hour meter coupler r.
11. Remove the cover c.
12. Disconnect the engine ECM coupler s
and pulser coil coupler t, and then
remove the engine ECM d.
a
b
d
c
f
e
a
h
g
n
m
b
p
k
r
c
t
d
s
