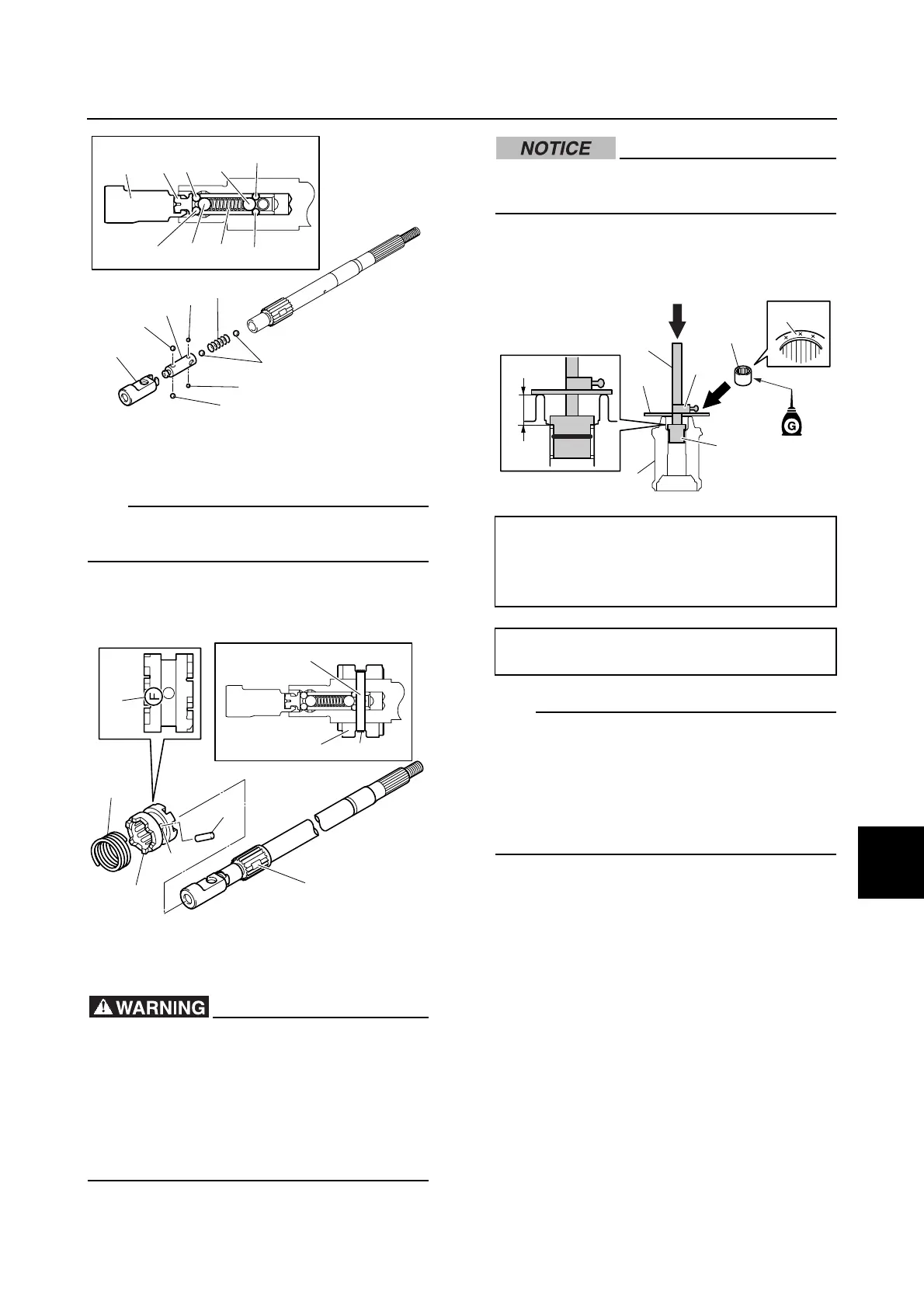

Yamaha F150B - Assembling the Propeller Shaft Housing Assembly

8-12
Propeller shaft housing (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
2. Align the hole a in the dog clutch g with
the hole b in the propeller shaft.
TIP:
Install the dog clutch g with the “F” mark c
facing toward the shift rod joint f.
3. Install the cross pin h, and then install
the spring i.
Assembling the propeller shaft
housing assembly
• Use heat-resistant gloves, otherwise
burns could result.
• Remove any flammable substances,
such as gasoline and oil, around the
working area to avoid the risk of fire.
• Heat the propeller shaft housing in a
well-ventilated area.
Do not reuse the bearing, always replace
it with a new one.
1. Install the needle bearing a into the pro-
peller shaft housing b to the specified
depth a.
TIP:
• Install the needle bearing with the manufac-
ture identification mark b facing toward the
oil seal (propeller side).
• When using the driver rod, do not strike the
special service tool in a manner that will
force the stopper c out of place.
e
f
b
a
c
d
c
d
f
d
e
c
c
a
b
b
d
g
i
h
c
a
b
i
g
h
Driver rod SS c: 90890-06604
Needle bearing attachment d:
90890-06610
Bearing depth plate e: 90890-06603
Depth a:
24.75–25.25 mm (0.974–0.994 in)
a
b
c
d
e
b
c
a
