Rigging information
2. Connect the main wiring harness coupler
a, and then secure the main wiring
harness coupler a with the holder c.

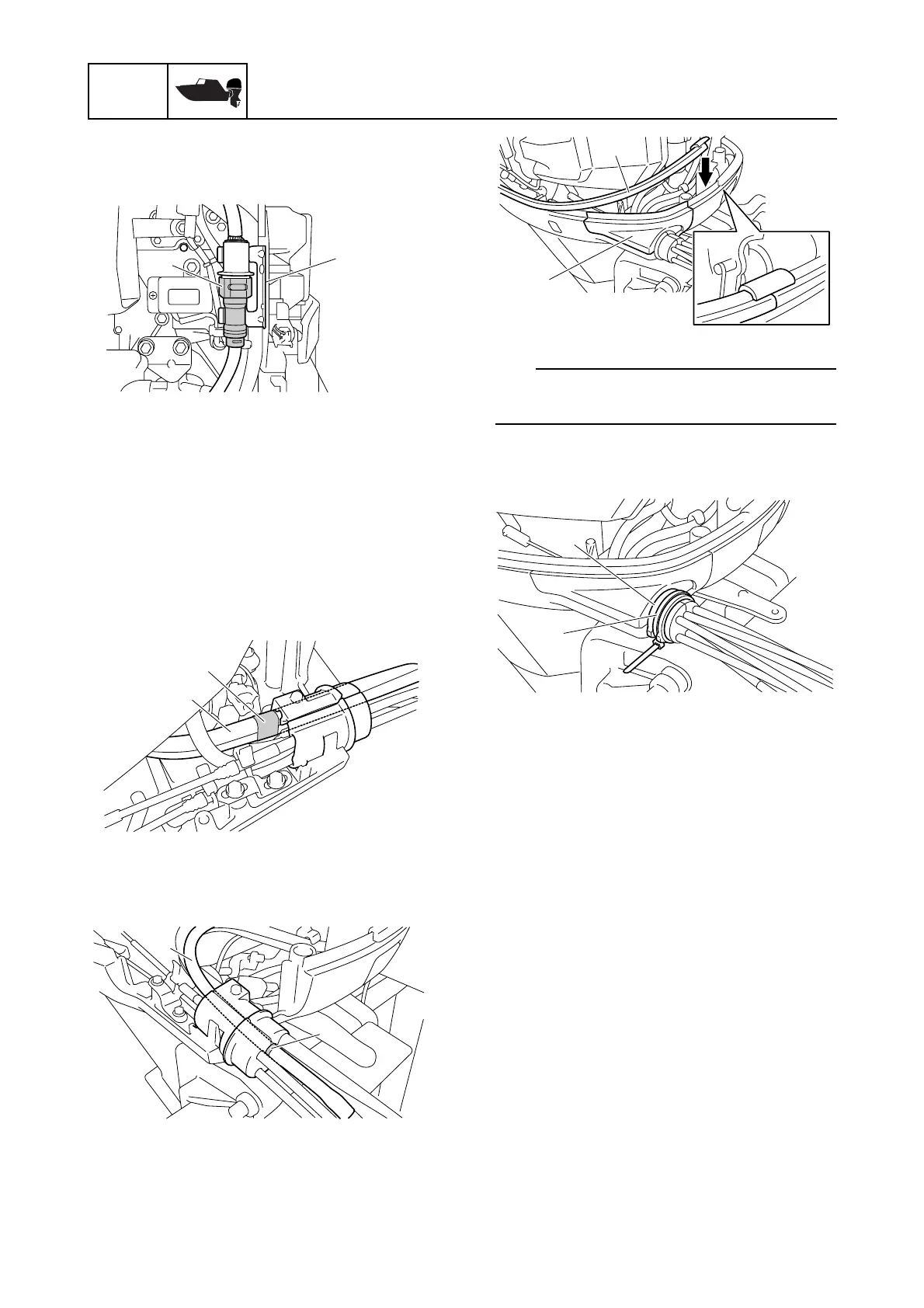

Installing the rigging grommet
1. Install each harness in the relevant posi-
tion on the rigging grommet. See “Rig-
ging grommet description” (3-8) for the
detailed description of the rigging grom-
met.
2. Align the white tape a on the battery
cable a with the inner end of the rigging
grommet.
3. Align the white mark b on the fuel hose
b with the outer end of the rigging
grommet.
4. Install the retaining plate c.
5. Install the rubber seal d.
TIP:
Make sure that the rubber seal is installed
securely.
6. Install the rigging tube retainer e, and
fasten it with a plastic tie f.
a
c
a
a
b
b
c
d
e
f
