Yamaha F150B - Assembling the Oil Pump Assembly; Installing the Oil Pump Assembly

7-49
Power unit
POWR

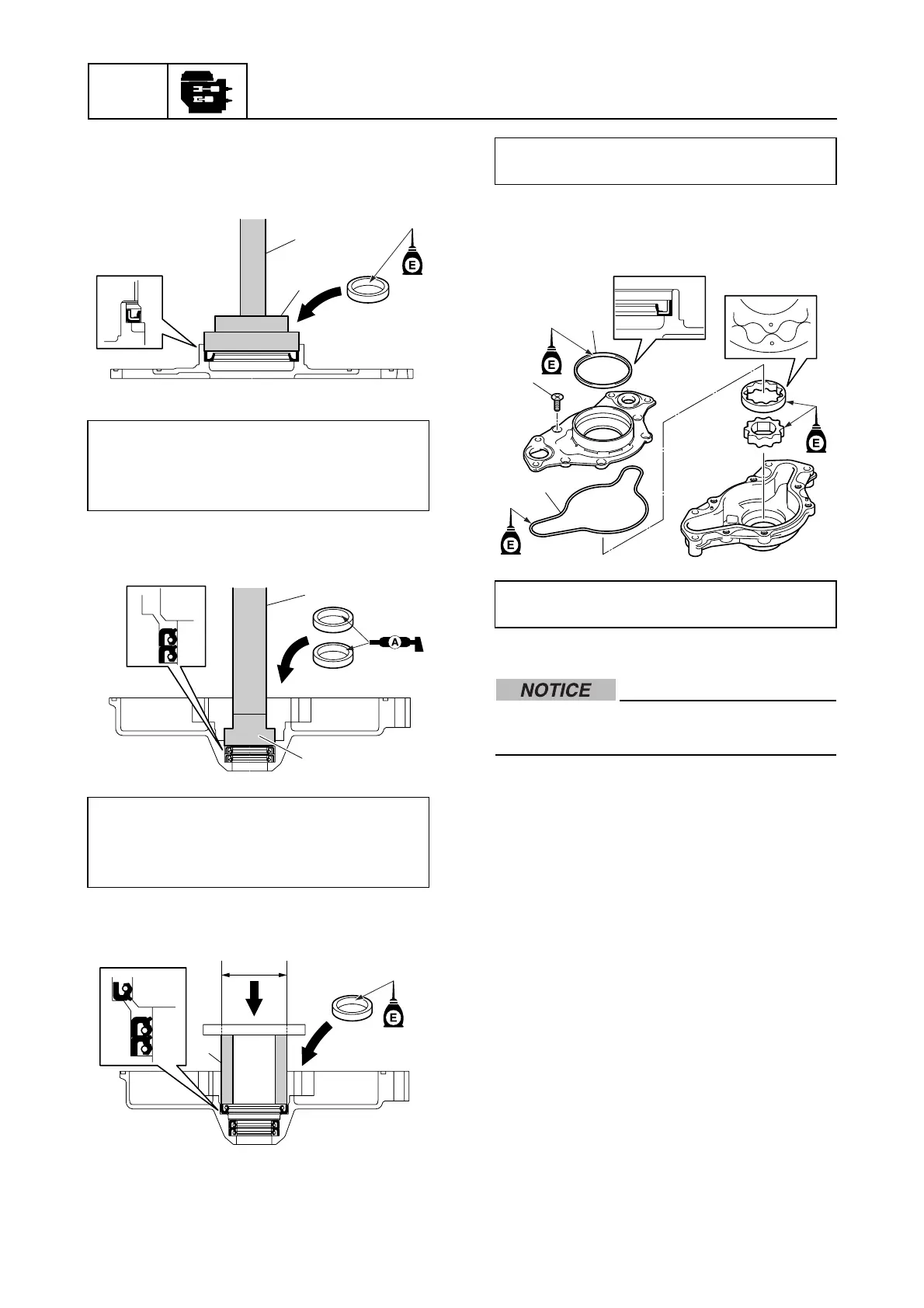

Assembling the oil pump assembly
1. Install a new oil seal into the oil pump
cover.
2. Apply grease to new oil seals, and then
install them into the oil pump housing.
3. Install a new oil seal into the oil pump
housing.
4. Install a new oil seal f and the gasket
g, and then tighten the screws h to the
specified torque.
Installing the oil pump assembly
When installing the oil pump assembly,
make sure to prevent the oil seal damage.
Needle bearing attachment a:
90890-06654
Driver rod L3 b:
90890-06652
Needle bearing attachment c:
90890-06611
Driver rod L3 d:
90890-06652
a
b
d
c
e
a
General pipe e:
a = 45.0 mm (1.77 in)
Screw h:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
f
g
h
