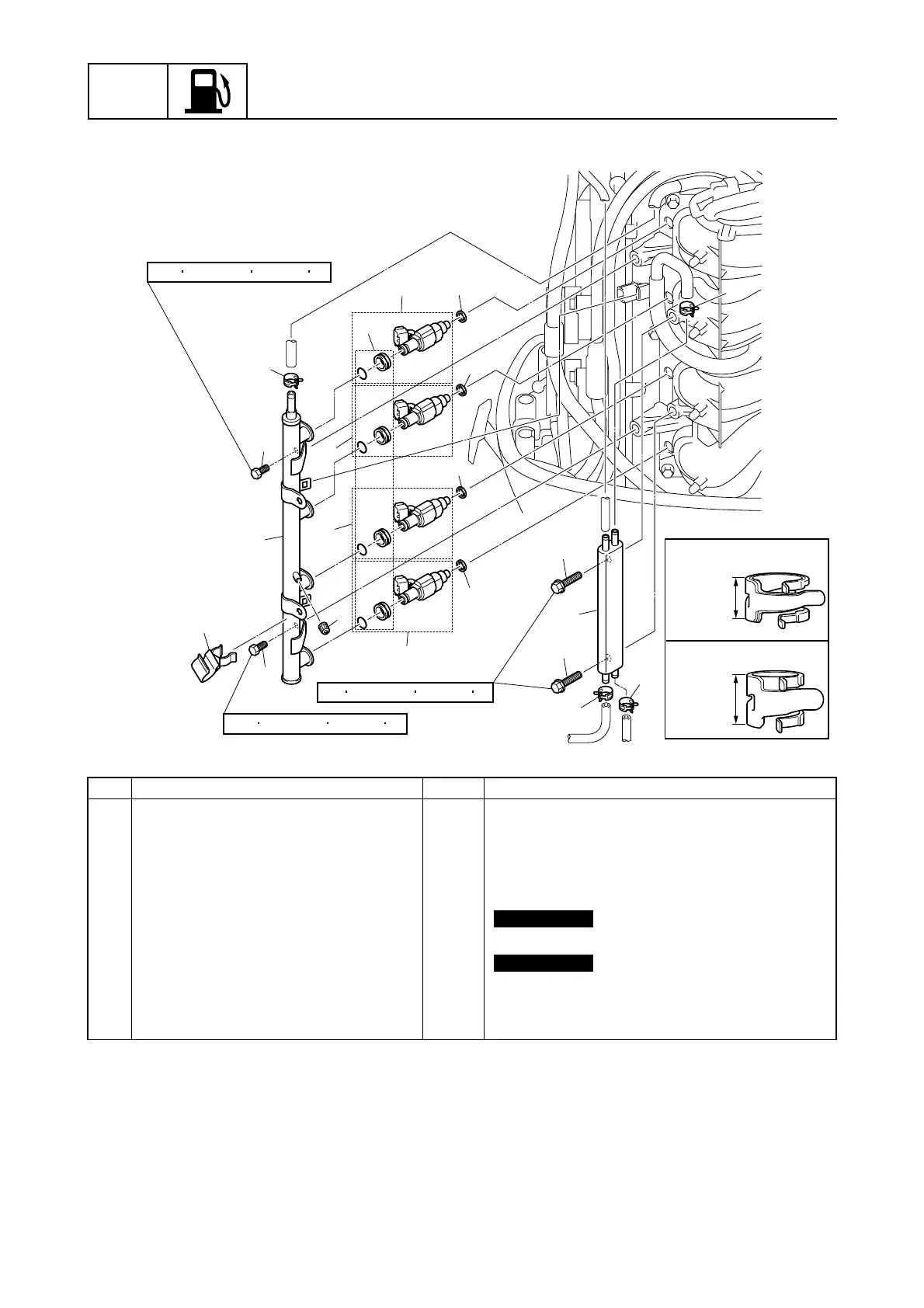

Yamaha F150B - Fuel Injector

6-25
FUEL
Fuel system
Fuel injector
No. Part name Q’ty Remarks
1 Holder 1
2Cap 1
3Bolt 2 M8
× 18 mm
4 Fuel rail 1
5 Clamp 3
6O-ring set 1
Not reusable
7 Fuel injector 4
8 Rubber seal 4
Not reusable
9Bolt 2 M6
× 25 mm
10 Fuel cooler 1
11 Clamp 1
1
2
3
3
4
5
6
7
7
7
7
8
8
8
8
5
5
11
9
9
10
13 N m (1.3 kgf m, 9.6 ft lb)
13 N m (1.3 kgf m, 9.6 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
11
5
12 mm
(0.47 in)
10 mm
(0.39 in)
