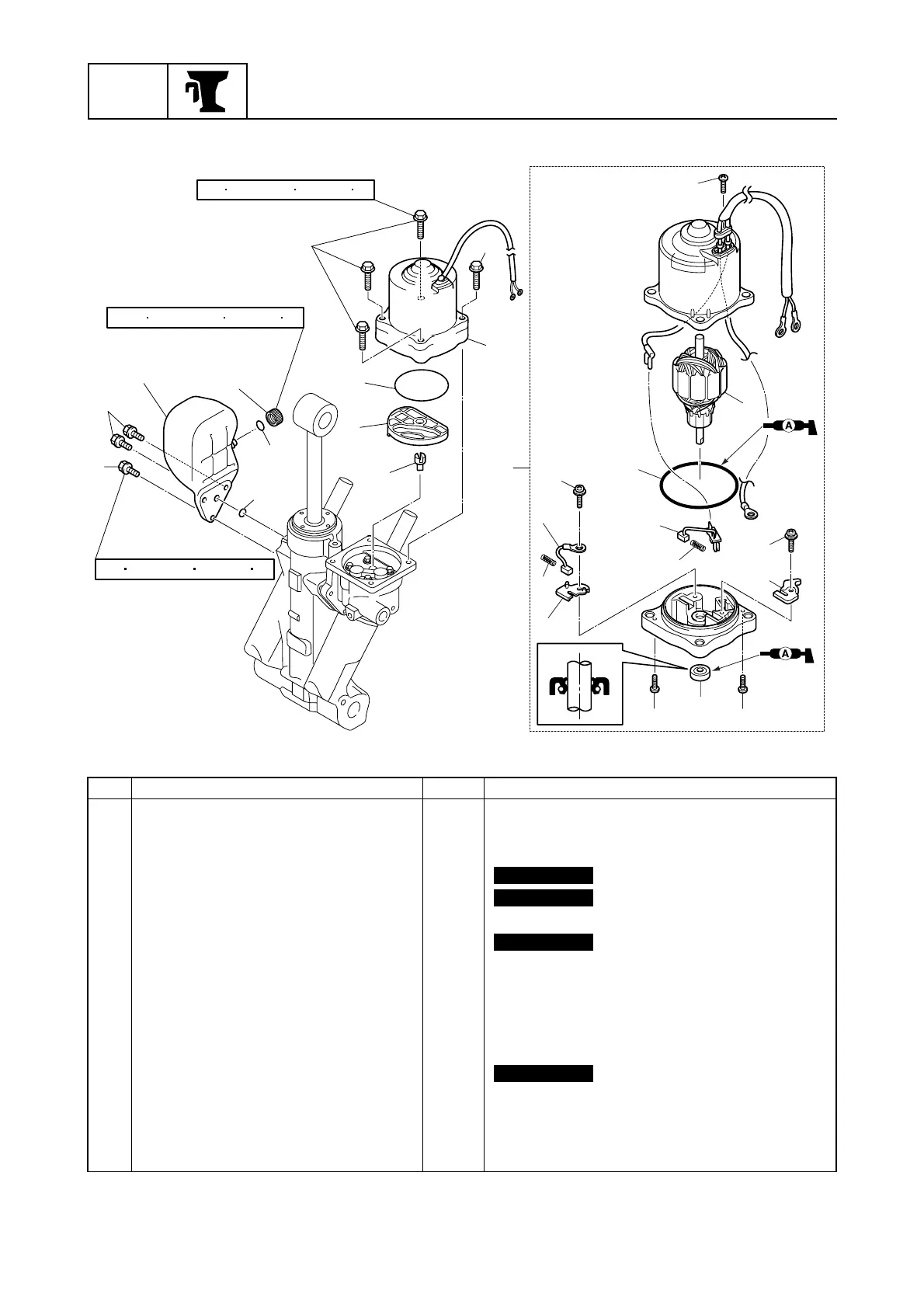

Yamaha F150B - PTT Motor

9-39
BRKT
Bracket unit
PTT motor
No. Part name Q’ty Remarks
1Bolt 3 M6 × 14 mm
2 Reservoir 1
3Cap 1
4O-ring 1
Not reusable
5O-ring 1
Not reusable
6Bolt 4 M6 × 33 mm
7O-ring 1
Not reusable
8 Filter 1
9 Joint 1
10 PTT motor assembly 1
11 Screw 1 M4 × 15 mm
12 Armature 1
13 O-ring 1
Not reusable
14 Screw 2 M4 × 12 mm
15 Brush holder 1
16 Brush holder 1
17 Brush 2 1
5 N m (0.5 kgf m, 3.7 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
0.7 N m (0.07 kgf m, 0.5 ft lb)
