Fuel system
Adjusting the throttle link

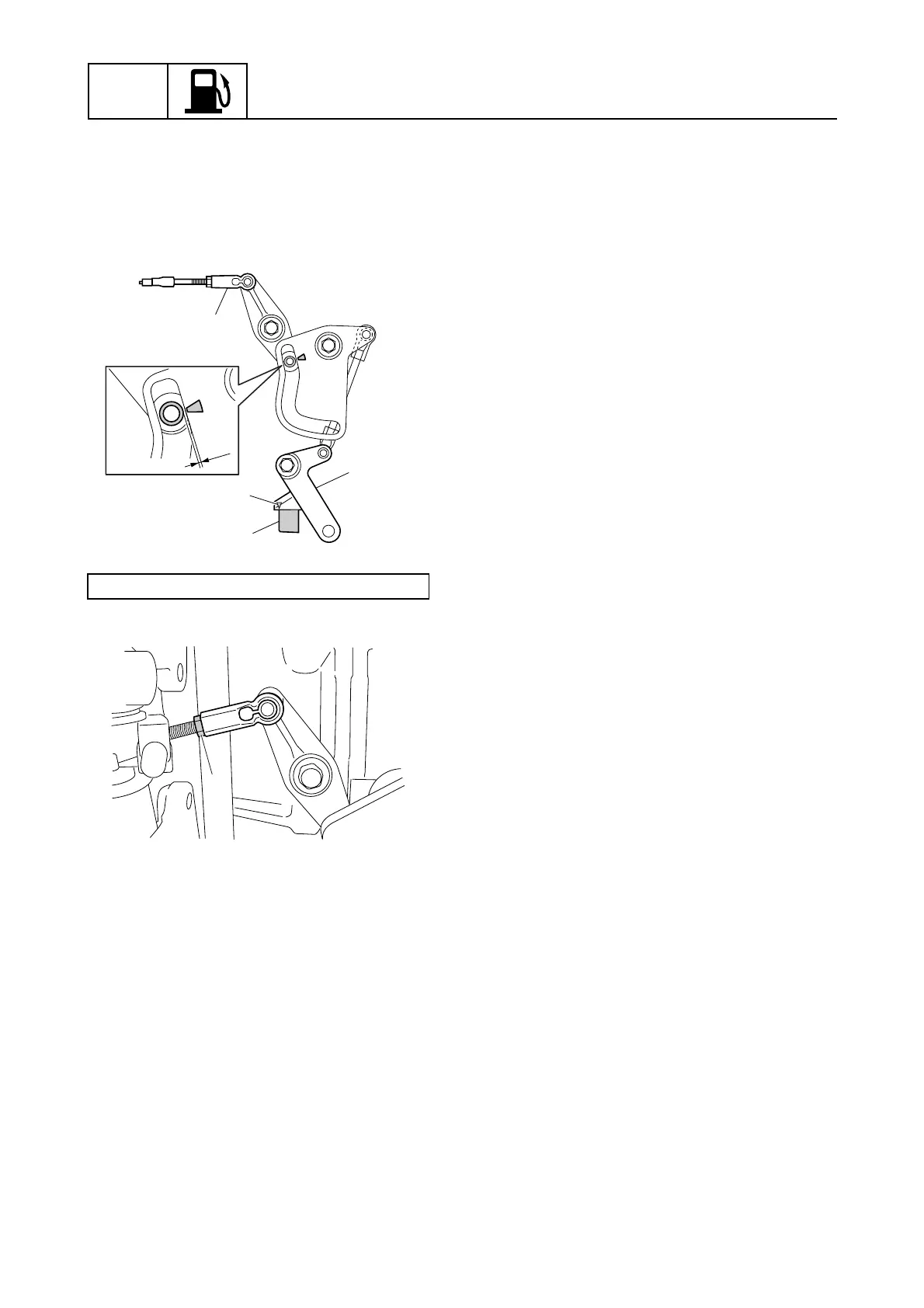

1. Contact the stopper a on the throttle
lever 2 a to the fully closed stopper b
on the cylinder block, and then adjust the
throttle link joint assembly b so that the
specified clearance c is obtained.
2. Tighten the locknut c.
Roller clearance c: 0.50 mm (0.02 in)
b
a
c
b
a
c
