3-14

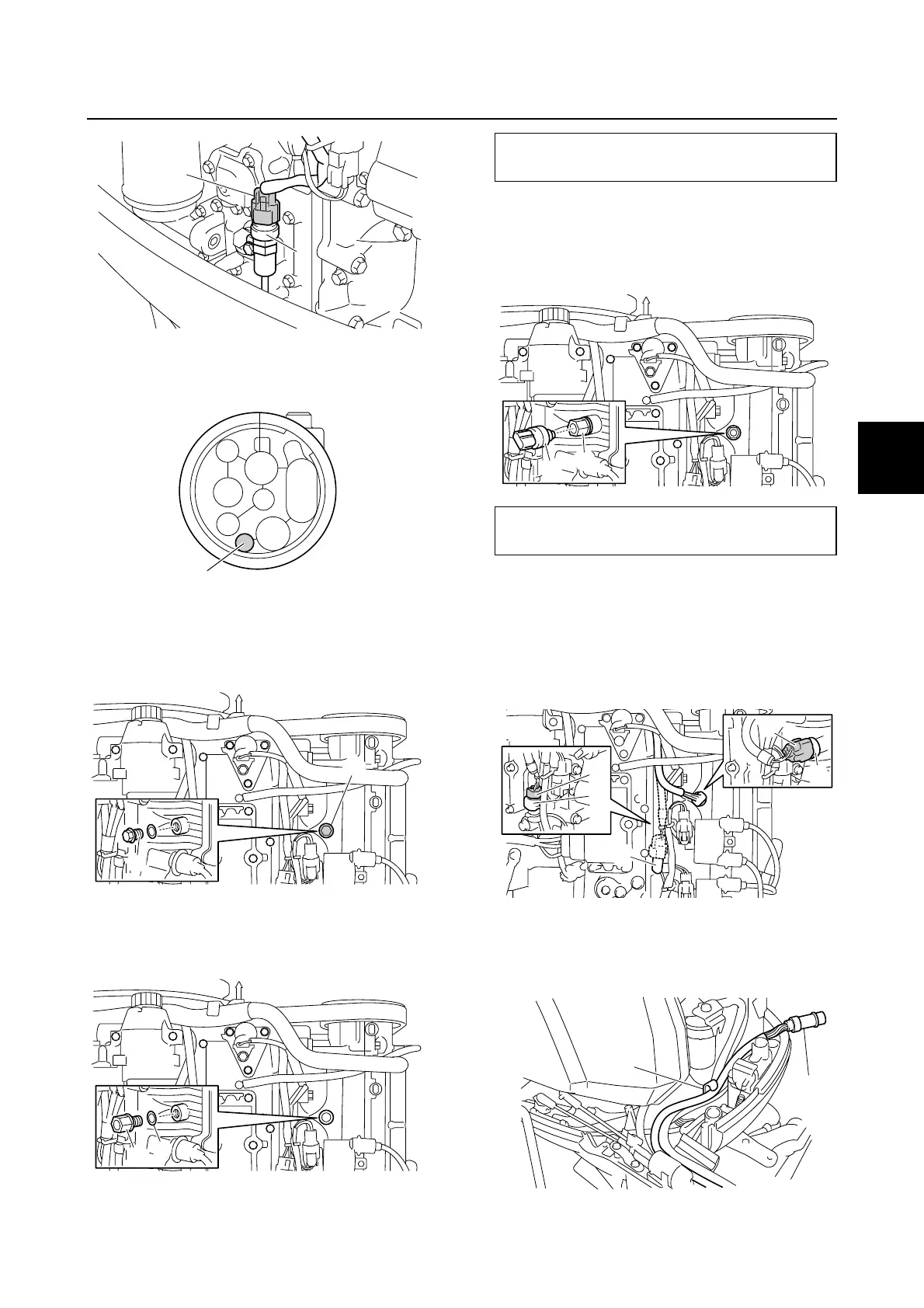

Mounting the rigging grommet
0
1
2
3
4
5
6
7
8
9
10
A
10. Install the rubber seal in the area c of
the rigging grommet.
Installing the water pressure sensor
(option for 6Y8 Multifunction Meter)
1. Remove the plug a.
2. Install the gasket b, adapter c, and then
tighten the adapter c to the specified
torque.
3. Install the water pressure sensor d onto
the adapter c, and then tighten the
water pressure sensor d to the specified
torque.
4. Remove the water pressure sensor
coupler a from the cap e.
5. Connect the water pressure sensor
coupler a to the water pressure sensor
d.
Installing the main wiring harness
1. Route the main wiring harness a in front
of the bracket b.
j
b
c
a
a
c
b
Adapter c:
23 N·m (2.3 kgf·m, 17.0 ft·lb)
Water pressure sensor d:
18 N·m (1.8 kgf·m, 13.3 ft·lb)
d
c
W
e
e
a
d
a
a
b
To Next Page
