Yamaha F150B - Lower Unit (Counter Rotation Model)

8-47
LOWR
Lower unit

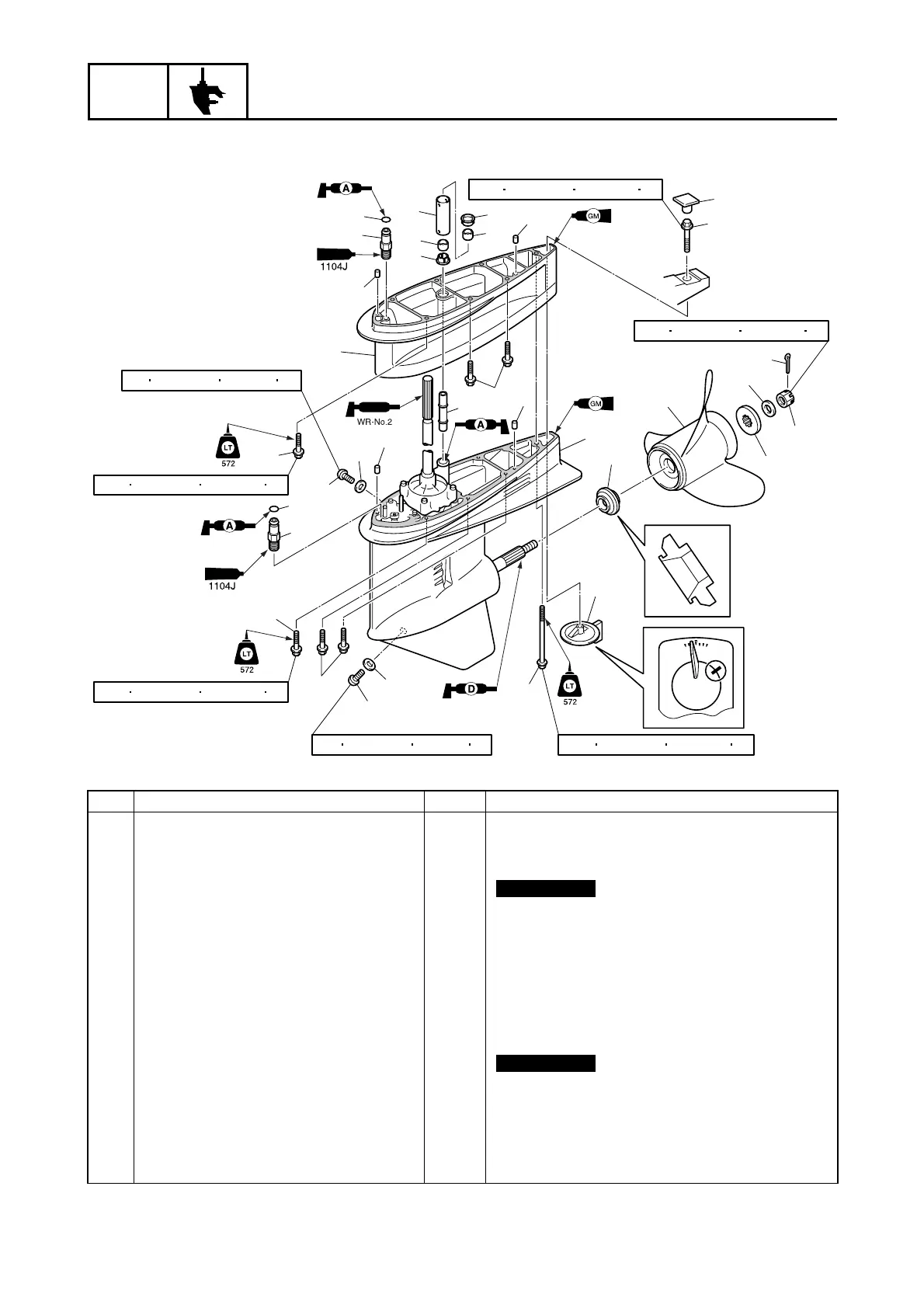

Lower unit (counter rotation model)
No. Part name Q’ty Remarks
1 Extension 1
2Dowel 4
3 Hose nipple 2
4O-ring 2
Not reusable
5Cover 2
6Seal 2
7 Water pipe 1
8 Grommet 1
9 Bolt 1 M10 × 45 mm
10 Bolt 12 M10 × 45 mm
11 Check screw 1
12 Gasket 2
Not reusable
13 Water pipe 1
14 Lower unit 1
15 Spacer 1
16 Propeller 1
17 Washer 1
21
15
14
17
18
19
20
16
2
2
11
12
22
10
10
2
7
13
5
6
6
5
10
10
2
23
12
47 N m (4.7 kgf m, 34.7 ft lb)
47 N m (4.7 kgf m, 34.7 ft lb)
47 N m (4.7 kgf m, 34.7 ft lb)
9 N m (0.9 kgf m, 6.6 ft lb)
9 N m (0.9 kgf m, 6.6 ft lb)
54 N m (5.4 kgf m, 39.8 ft lb)
9
8
42 N m (4.2 kgf m, 31.0 ft lb)
1
3
4
3
4
