Yamaha F150B - Drive Shaft and Lower Case (Counter Rotation Model)

8-59
LOWR
Lower unit

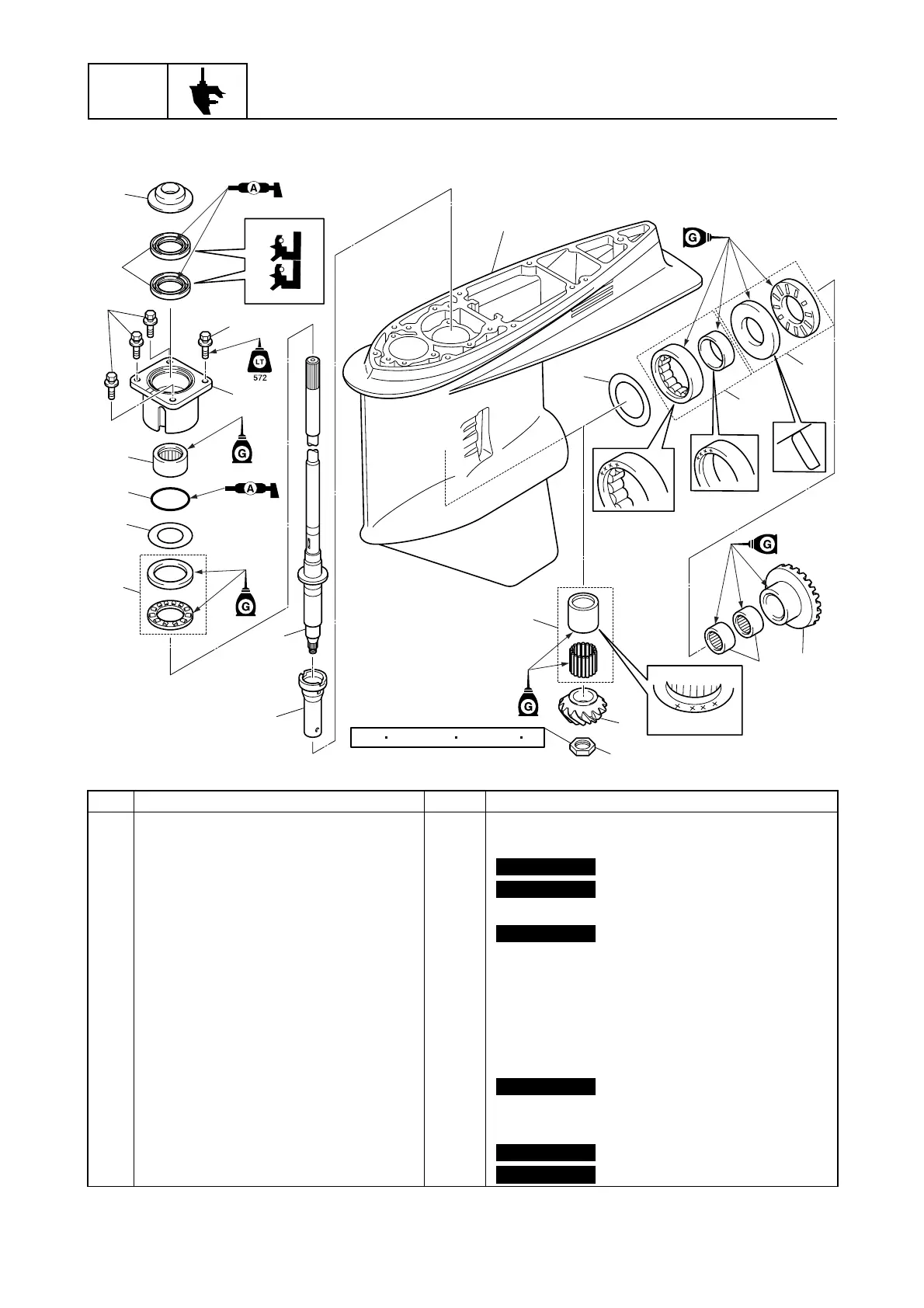

Drive shaft and lower case (counter rotation model)
No. Part name Q’ty Remarks
1 Thrust bearing 1
2 Shim (T3) —
3O-ring 1
Not reusable
4 Needle bearing 1
Not reusable
5Bolt 4 M8 × 25 mm
6 Oil seal 2
Not reusable
7Cover 1
8 Drive shaft housing 1
9Sleeve 1
10 Drive shaft 1
11 Lower case 1
12 Shim (T1) —
13 Roller bearing 1
Not reusable
14 Thrust bearing 1
15 Reverse gear 1
16 Needle bearing 2
Not reusable
17 Needle bearing 1
Not reusable
5
8
5
94 N m (9.4 kgf m, 69.3 ft lb)
7
6
4
3
2
1
9
10
11
17
18
16
15
12
14
13
19
