9-44
PTT motor
0
1
2
3
4
5
6
7
8
9
10
A

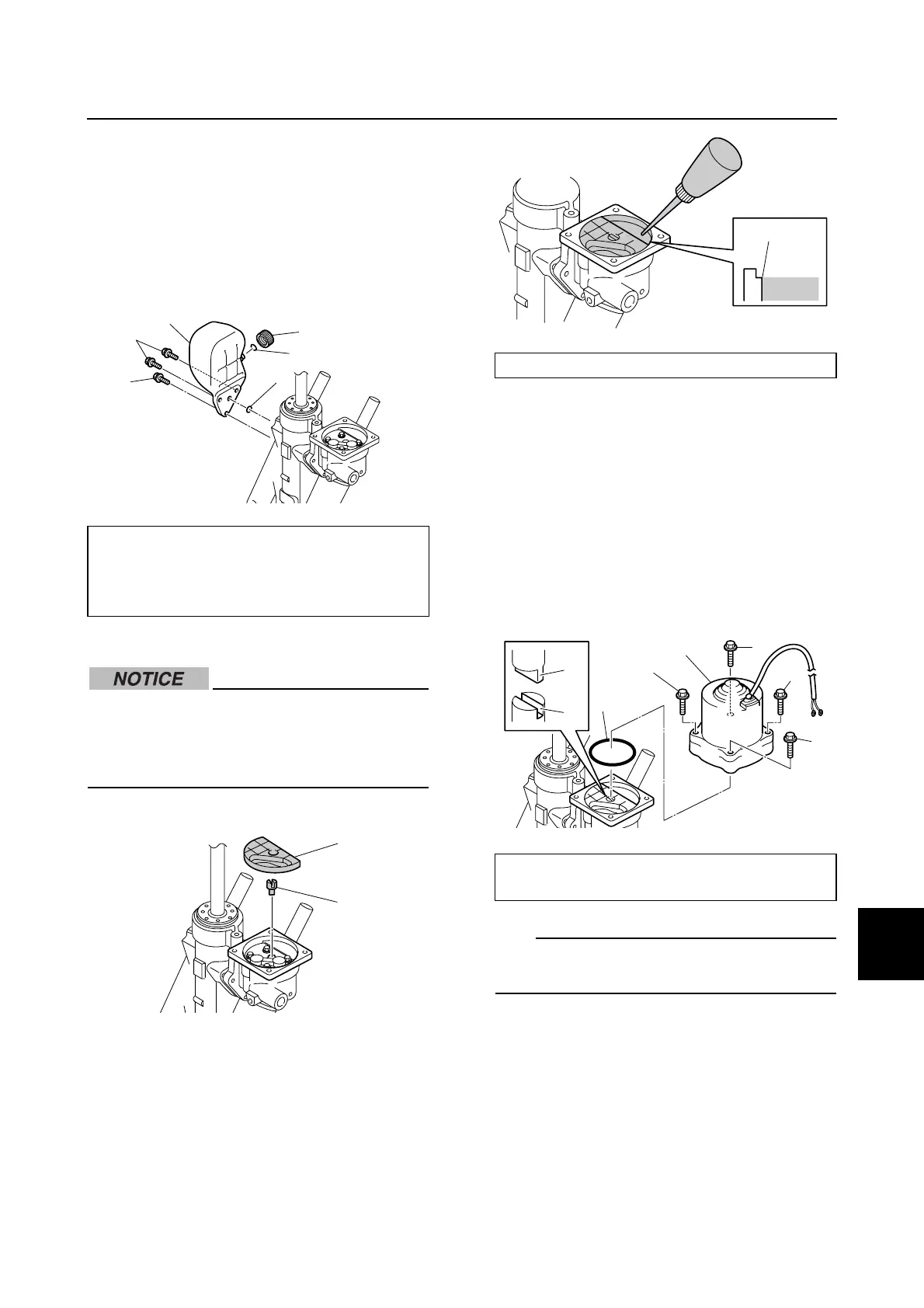

Installing the reservoir
1. Install a new O-ring a and the reservoir
b, and then tighten the reservoir mount-
ing bolts c to the specified torque.
2. Install a new O-ring d and the reservoir
cap e, and then tighten the reservoir cap
e to the specified torque.
Installing the PTT motor
Do not use a rag when assembling the
PTT unit because dust and particles on
the PTT unit components can lead to poor
performance.
1. Install the joint a and gear pump filter b.
2. Fill the gear pump housing with the
recommended fluid to the correct level
a.
3. Turn the joint a with a screwdriver, and
then remove any air between the pump
gear teeth.
4. Remove all of the air bubbles with a
syringe or suitable tool.
5. Install a new O-ring c and the PTT
motor assembly d, and then tighten the
PTT motor mounting bolts e to the
specified torque.
TIP:
Align the projection b on the armature shaft
with the slot c in the joint.
Reservoir mounting bolt c:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
Reservoir cap e:
0.7 N·m (0.07 kgf·m, 0.5 ft·lb)
a
b
d
e
c
c
a
b
Recommended PTT fluid: ATF Dexron ΙΙ
PTT motor mounting bolt e:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
a
c
d
e
e
e
e
b
c
