7-52

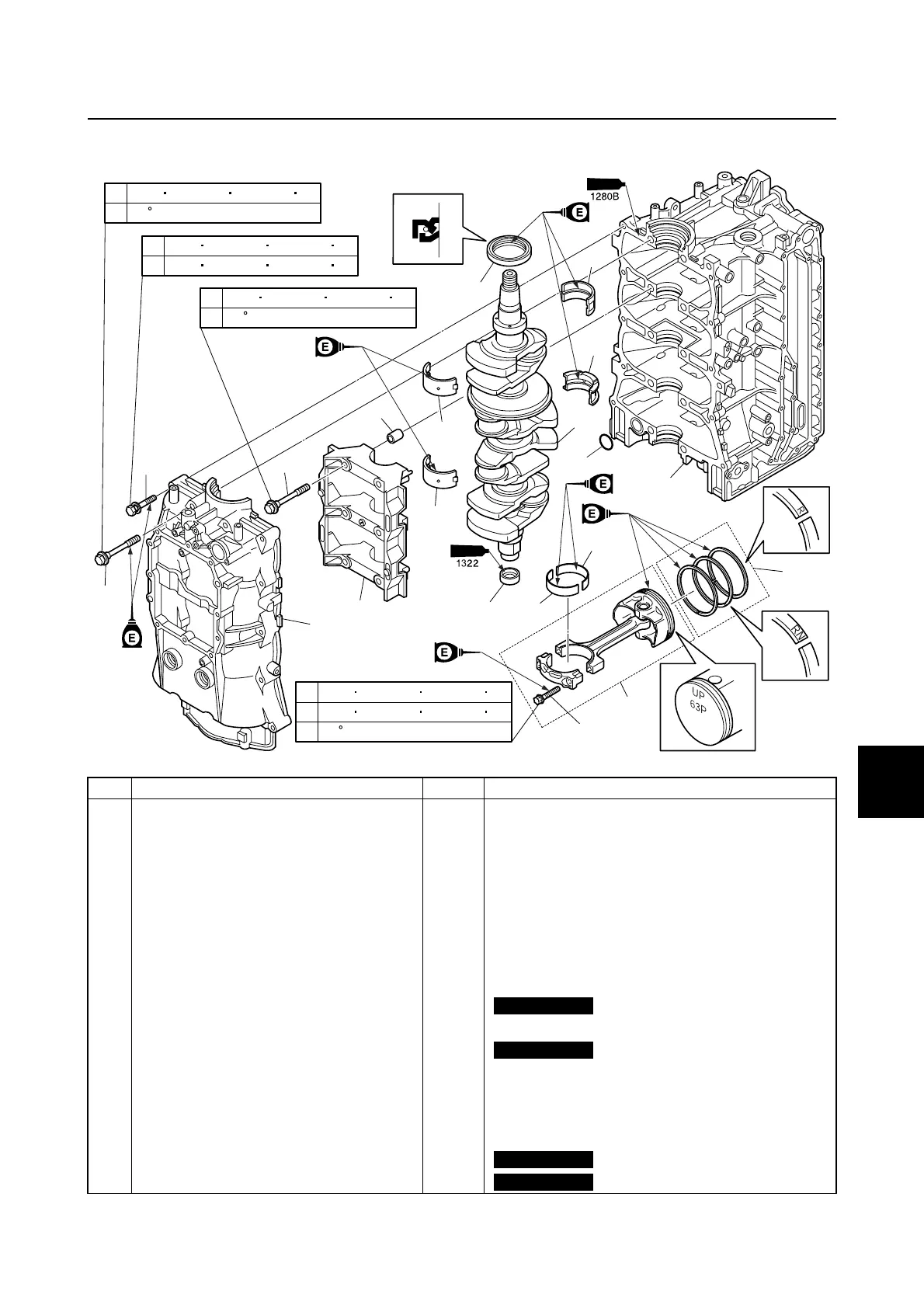

Crankcase
0
1
2
3
4
5
6
7
8
9
10
A
Crankcase
No. Part name Q’ty Remarks
1Bolt 10 M10 × 85 mm
2Bolt 10 M8 × 55 mm
3 Crankcase 1
4 Collar 10
5 Main bearing cap 1
6 Cylinder block 1
7 Piston ring set 4
8 Piston and connecting rod assembly 4
9Bolt 8 M9 × 44 mm
Not reusable
10 Connecting rod bearing 8
11 Oil seal 1
Not reusable
12 Main bearing 4
13 Thrust bearing 1
14 Main bearing 5
15 Crankshaft 1
16 O-ring 1
Not reusable
17 Collar 1
Not reusable
1
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
a
b
23 N m(2.3 kgf m, 17.0 ft lb)
43 N
m(4.3 kgf m, 31.7 ft lb)
a
b
14 N m(1.4 kgf m, 10.3 ft lb)
26 N
m(2.6 kgf m, 19.2 ft lb)
a
b
30 N m(3.0 kgf m, 22.1 ft lb)
90
a
b
30 N m(3.0 kgf m, 22.1 ft lb)
90
c
90
17
Cylinder block / Crankcase
