3-16
Installing the fuel flow sensor
0
1
2
3
4
5
6
7
8
9
10
A

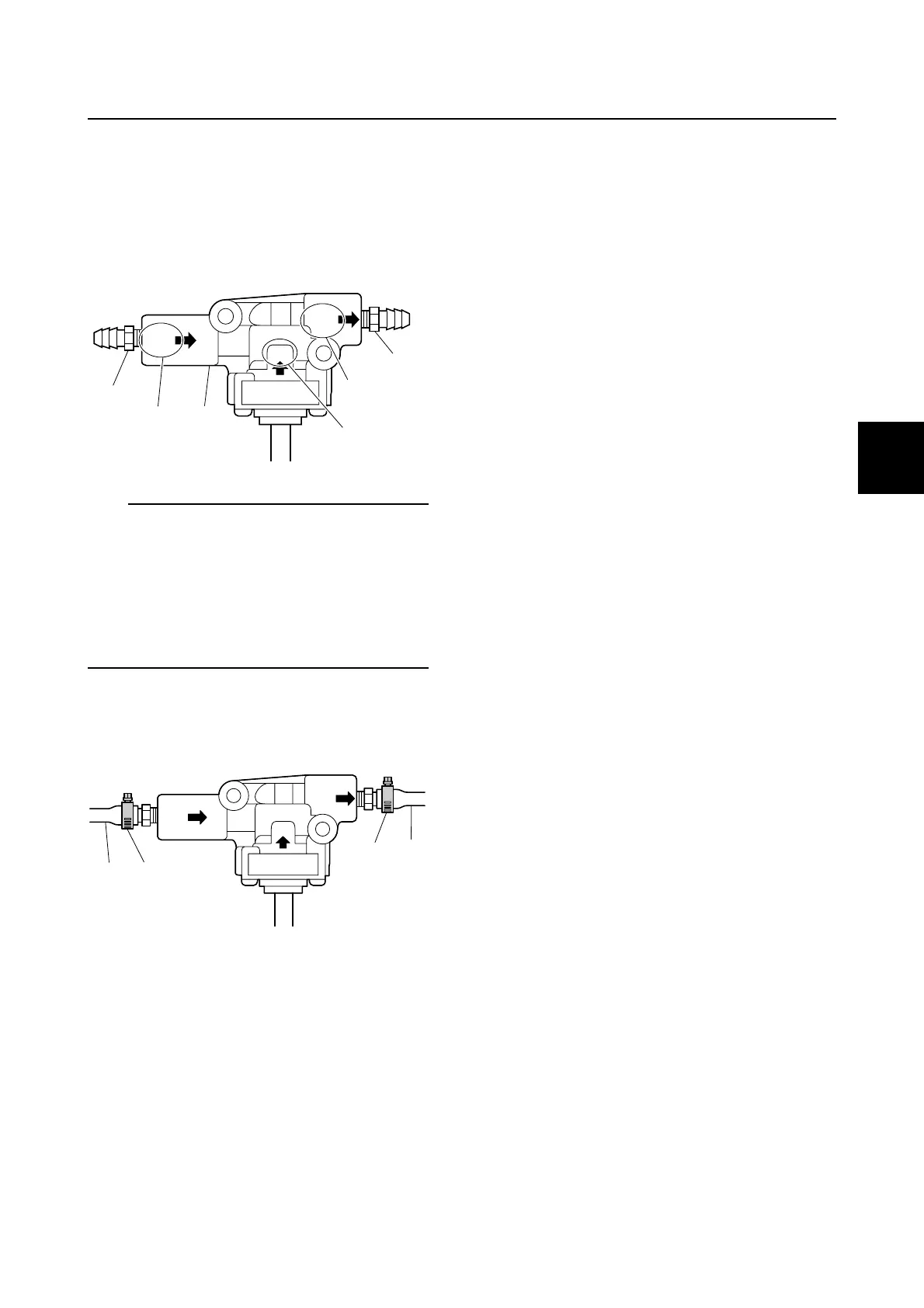

Installing the fuel flow sensor
1. Install the fuel joints a to the fuel flow
sensor b.
2. Install the fuel flow sensor b between
the fuel tank and primer pump.
TIP:
• Install the fuel flow sensor so that “IN” mark
a comes to the fuel tank side, and “OUT”
mark b comes to the primer pump side.
• Install the fuel flow sensor with the “UP”
mark c facing upward.
• If a fuel filter is used, install fuel flow sensor
between the fuel filter and primer pump.
3. Install the fuel hoses c, and then fasten
them with the clamps d.
Remote control box and switch
panel installation
See “Remote control box operation manual”
or “Rigging guide” for the installation proce-
dures of remote control box and the switch
panel.
IN
UP
OUT
a
a
a
b
c
b
IN
UP
OUT
c
c
d
d
Mounting the rigging grommet
/ Installing the fuel flow sensor / Remote control box and switch panel installation
