Yamaha F150B - Page 233

7-20
Power unit assembly
0
1
2
3
4
5
6
7
8
9
10
A

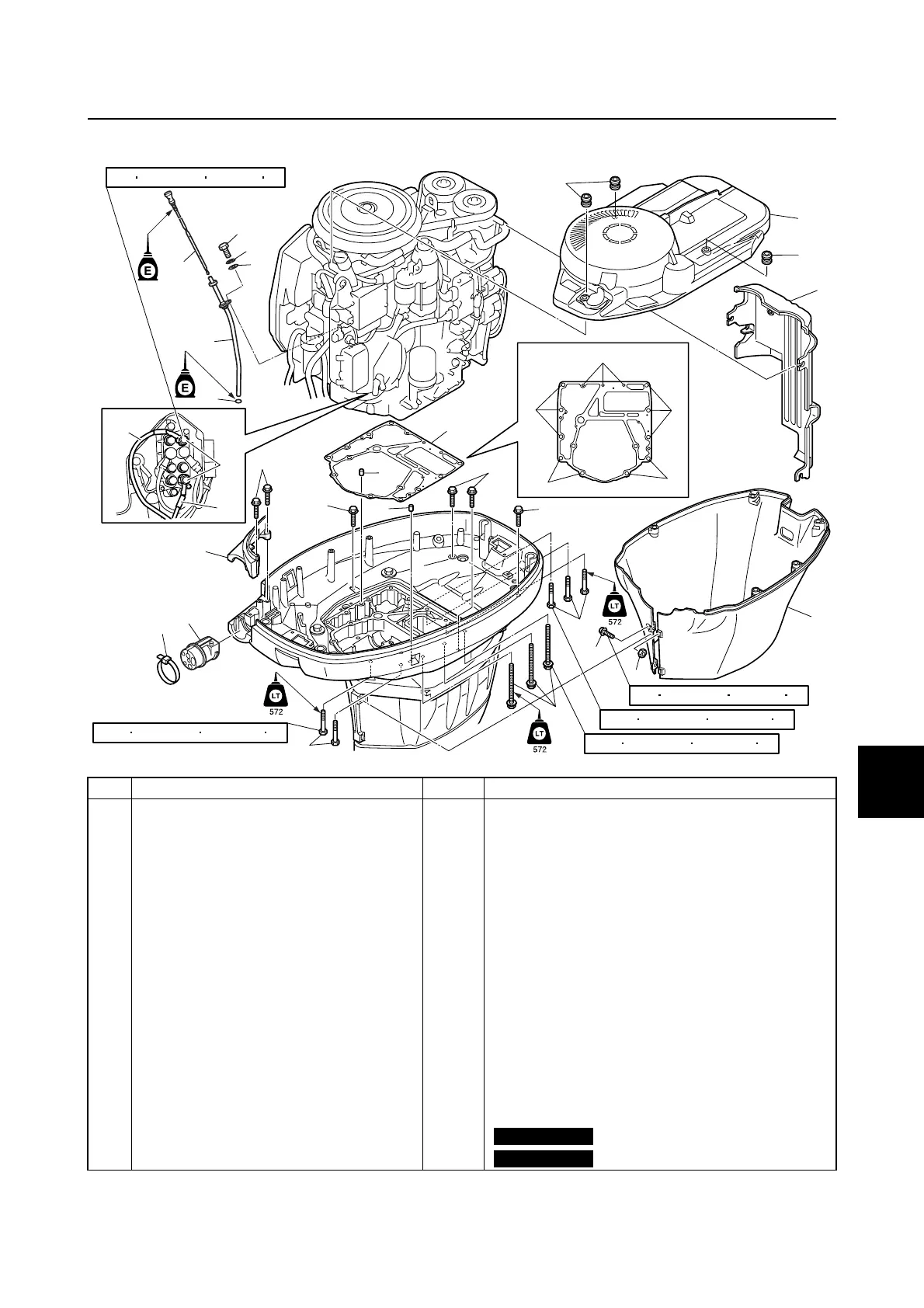

Power unit assembly
No. Part name Q’ty Remarks
1Damper 3
2Cover 1
3Cover 1
4 Apron 1
5Nut 2
6Screw 2 M6 × 40 mm
7Bolt 3 M8 × 35 mm
8 Bolt 6 M10 × 140 mm
9 Bolt 4 M10 × 35 mm
10 Bolt 4 M6 × 16 mm
11 Grommet 4
12 Plastic tie 1
13 Retaining plate 1
14 Bolt 2 M6 × 30 mm
15 Dowel 2
16 Gasket 1
Not reusable
17 O-ring 1
Not reusable
1
1
2
3
4
5
6
7
7
8
8
8
9
9
9
10
10
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
23
24
4 N m (0.4 kgf m, 3.0 ft lb)
42 N m (4.2 kgf m, 31.0 ft lb)
42 N m (4.2 kgf m, 31.0 ft lb)
20 N m (2.0 kgf m, 14.8 ft lb)
4 N m (0.4 kgf m, 3.0 ft lb)
Timing belt / Power unit assembly
