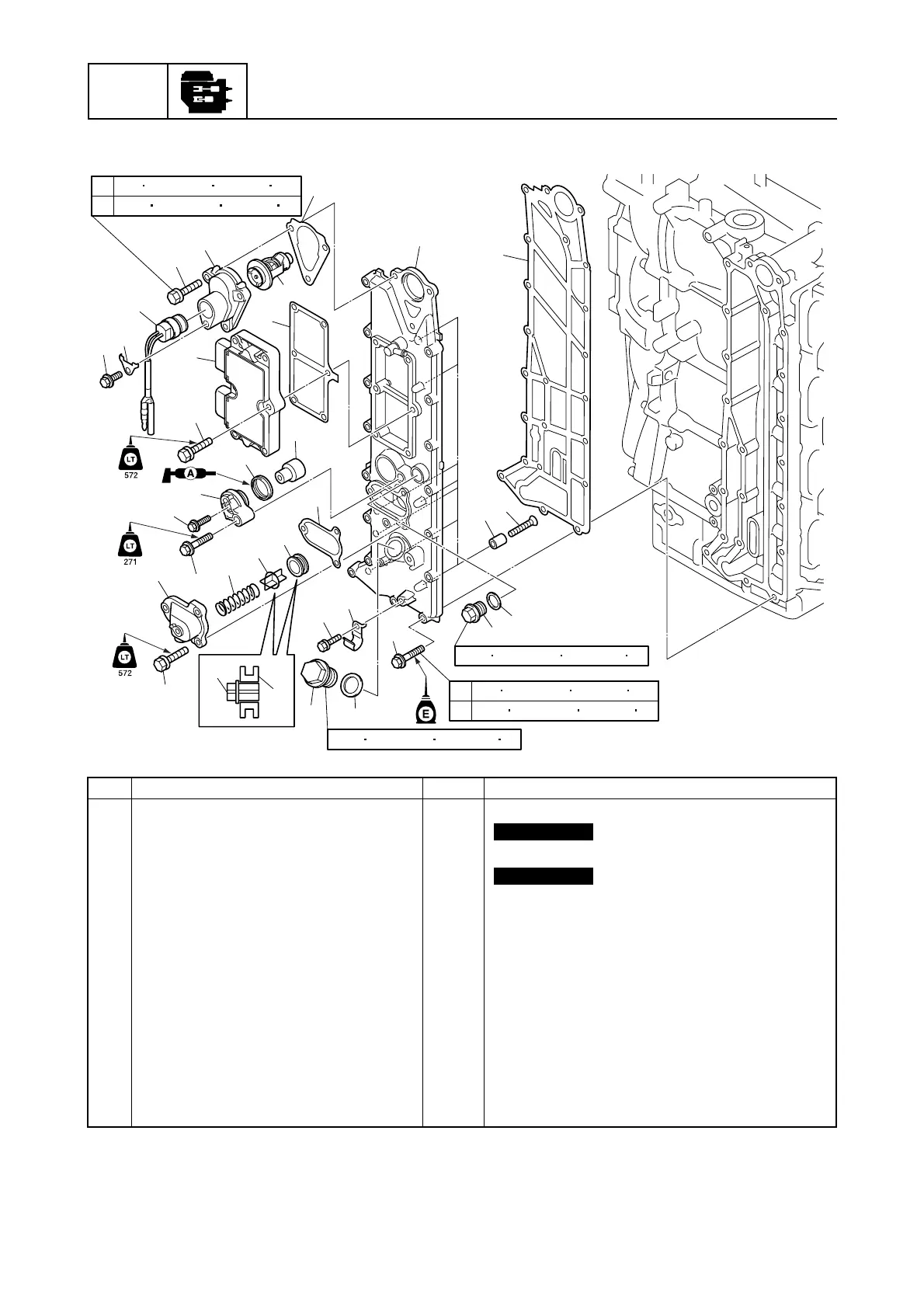

Yamaha F150B - Page 246

7-33
Power unit
POWR
No. Part name Q’ty Remarks
18 Plug 1 M18 × 17 mm
19 Gasket 1
Not reusable
20 Plug 1 M14 × 12 mm
21 Gasket 1
Not reusable
22 Grommet 1
23 PCV 1
24 Spring 1
25 Cover 1
26 Anode 1
27 Grommet 1
28 Cover 1
29 Bolt 1 M6 × 20 mm
30 Bolt 19 M6 × 30 mm
31 Bolt 1 M8 × 40 mm
32 Bolt 3 M6 × 20 mm
1
2
3
11
12
13
14
17
18
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
32
a
b
6 N m (0.6 kgf m, 4.4 ft lb)
12 N
m (1.2 kgf m, 8.9 ft lb)
55 N m (5.5 kgf m, 40.6 ft lb)
23 N m (2.3 kgf m, 17.0 ft lb)
15
16
6
8
9
10
7
4
5
a
b
6 N m (0.6 kgf m, 4.4 ft lb)
12 N
m (1.2 kgf m, 8.9 ft lb)
