Drive shaft and lower case (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

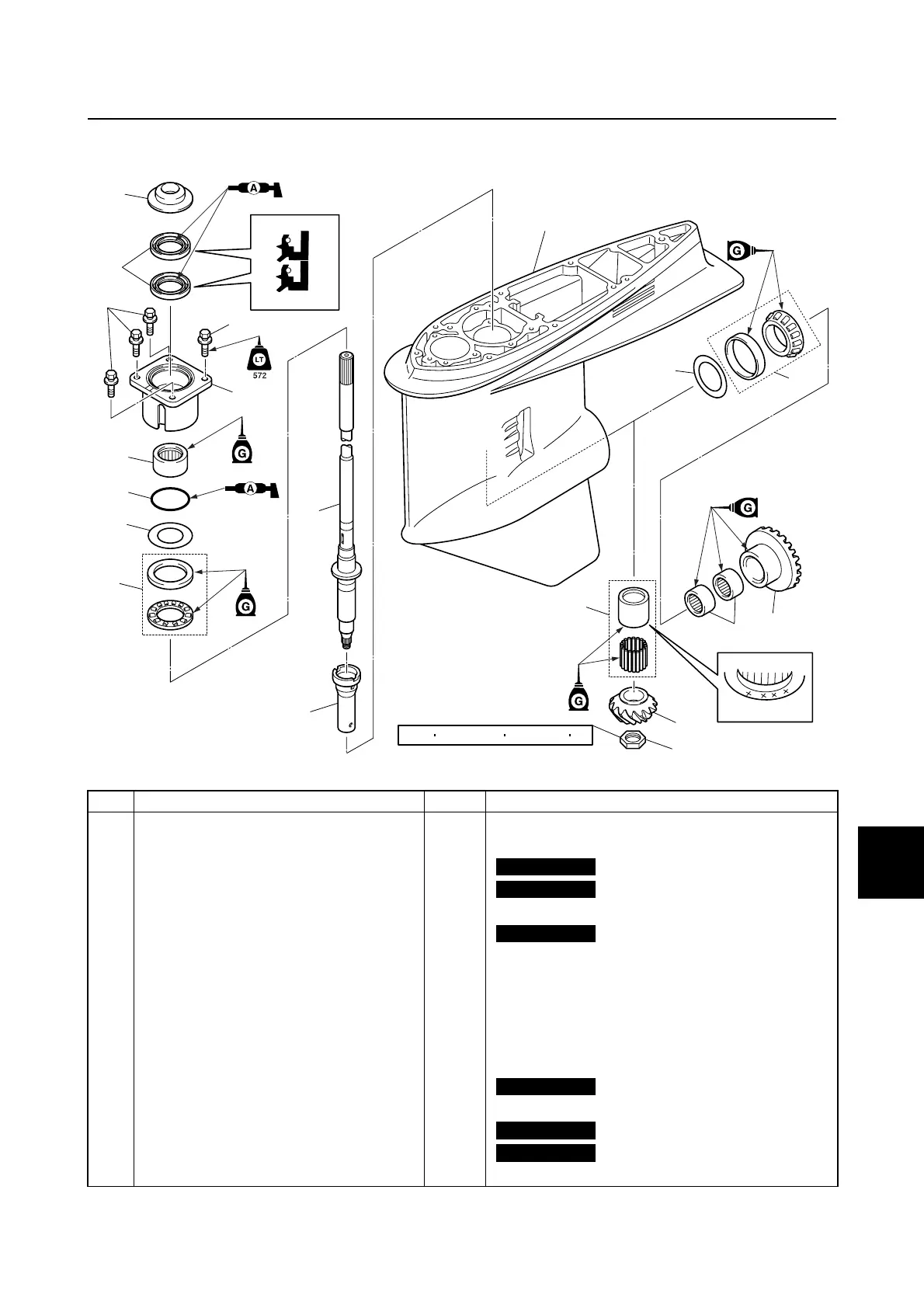

Drive shaft and lower case (regular rotation model)
No. Part name Q’ty Remarks
1 Thrust bearing 1
2 Shim (T3) —
3O-ring 1
Not reusable
4 Needle bearing 1
Not reusable
5Bolt 4 M8 × 25 mm
6 Oil seal 2
Not reusable
7Cover 1
8 Drive shaft housing 1
9Sleeve 1
10 Drive shaft 1
11 Lower case 1
12 Shim (T1) —
13 Taper roller bearing 1
Not reusable
14 Forward gear 1
15 Needle bearing 2
Not reusable
16 Needle bearing 1
Not reusable
17 Pinion 1
94 N m (9.4 kgf m, 69.3 ft lb)
7
6
5
8
4
3
2
1
9
10
11
12
13
15
14
16
17
5
18
Propeller shaft housing (regular rotation model)
/ Drive shaft and lower case (regular rotation model)
