Yamaha F150B - Page 320

8-41
LOWR
Lower unit

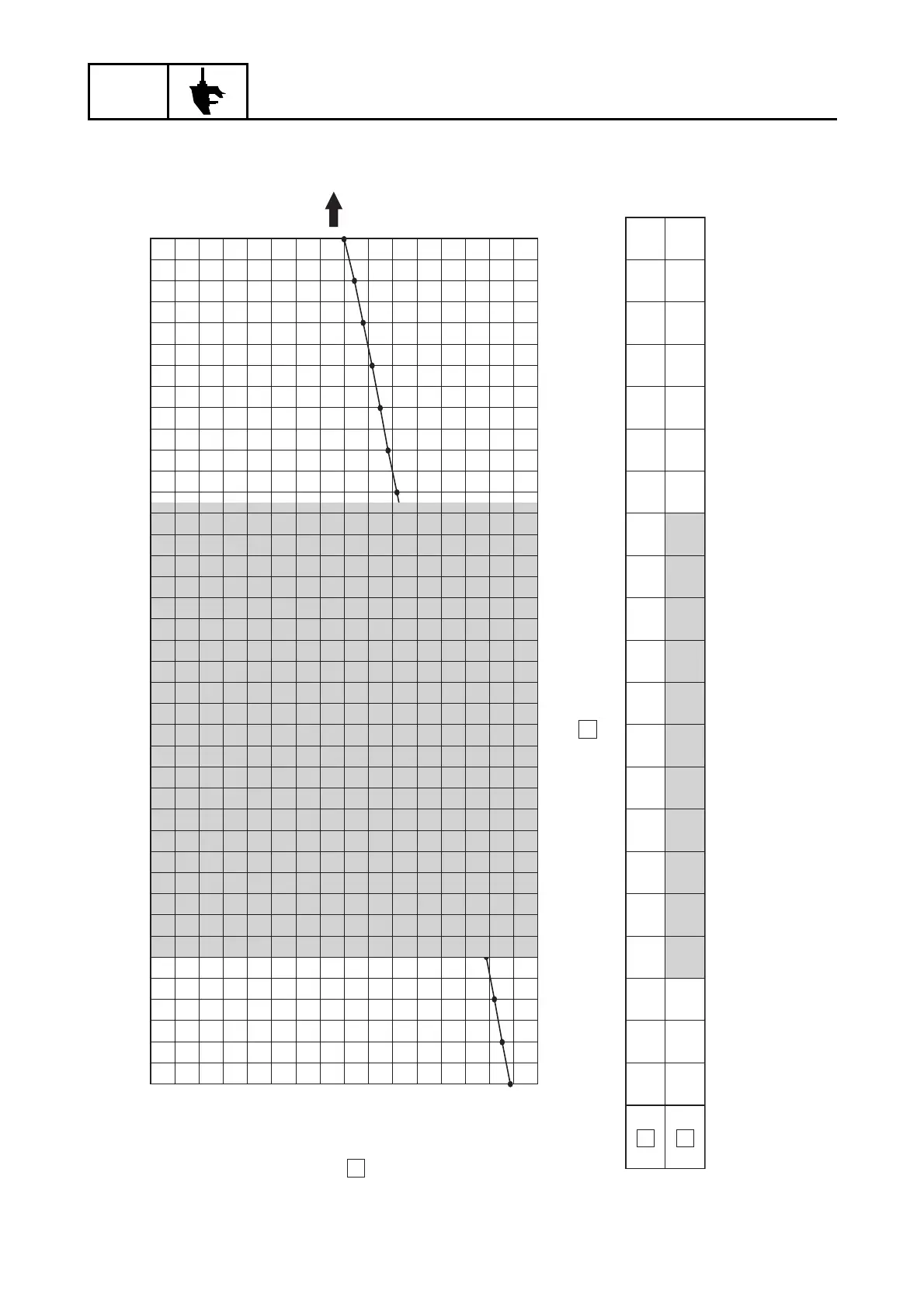

Forward gear shim (T1) selection chart A Backlash measurement (BL1) B Increasing or decreasing of shim thickness
–0.28 –0.25 –0.21 0 0 0 0 0 0 0 0.06 0.09 0.13 0.16 0.19 0.23 0.26 0.29 0.33 0.36 0.40
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
1.20
B (mm)
Continue next page
1.00 0.80 0.60 0.40 0.20
0
–0.20 –0.40
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
A (1/100 mm)
A B
